1. Product Description:
1). The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires.
2). The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.
2. Product Characteristic:
Packaging Details: | Packing in roll or as your requirements |
Delivery Detail: | 4 weeks or as your request |
1.450/750V copper core
2.PVC insulated and PVC jacket
3.ISO CCC IEC standard
4.factory direct sale
This product is suitable for fixed laying in power plant with AC rated voltage up to and including 450/750V.
3.Specification：
Type | Name | Laying place and requirement | Long term working Temperature0C |
BVR | Copper conductor PVC insulated flexible cable | Be for laying permanent place where flexible required. | 70 |
60227IEC02(RV) 60227IEC06(RV) | Copper conductor PVC insulated flexible connector wire | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 70 |
60227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector wire | ||
RVS | Copper conductor PVC insulated flexible twisting connector wire | ||
60227IEC52(RVV) 60227IEC53 | Copper conductor PVC insulated PVC sheathed round flexible connector wire |

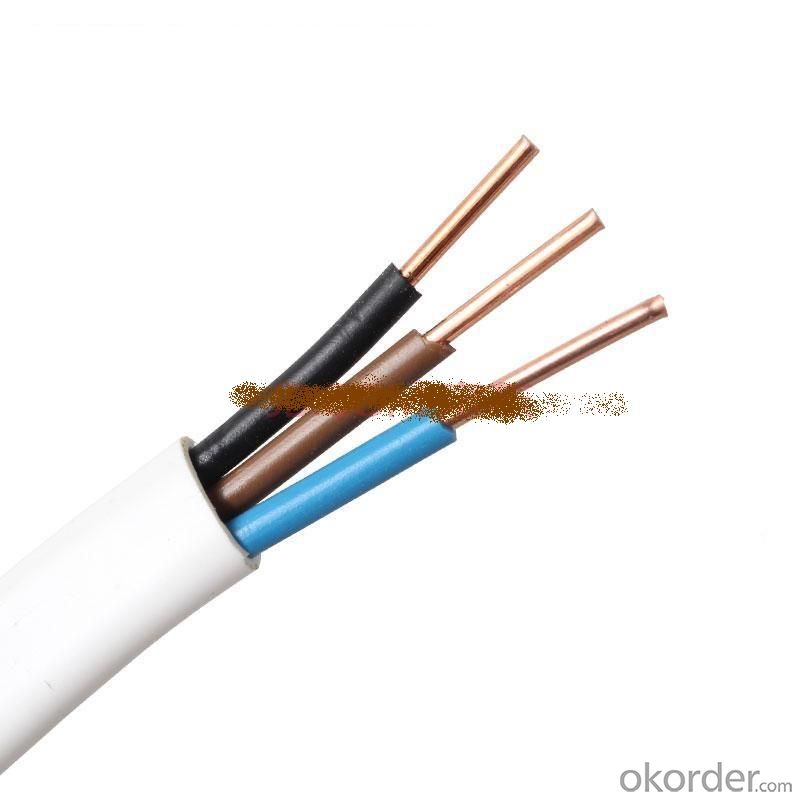

4. Reference Picture
