Loading Port:China Main Port
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:-
Place of Origin: Henan, China (Mainland)
Type: InsulatedModel Number: BV BLV BVVB BVR RV RVB RVV
Application: Construction
Conductor Material: Copper Aluminum
Conductor Type: Solid
Insulation Material: PVC
Color: Red Black Blue Yellow
Certificate: IEC ASTM DIN BS
Credit: Sincere Service
Professional Technology: Competitive Price
| Packaging Details: | Wooden drums or circles or as your request |
|---|---|
| Delivery Detail: | Half month or as your request |

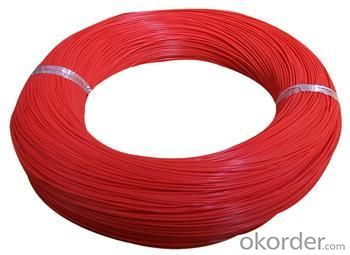

Copper Core PVC Insulated and Sheathed Electric Wire
1. Application
Copper Core PVC Insulation Power Wire is fit for ac rated voltage 450/750V
2. Working temperature
BV-105 model not more than 105 C, others not more than 75C installation temperature not lower than 0C.
3.Specification size and technological data
Type | Name | Laying place and requirement |
Crated voltage | Nominal Section (mm2 |
227IEC01(BV) | Copper conductor PVC insulated wires
Aluminum conductor PVC insulated wires | Fixed laid indoors Conduit etc. | 450/750
300/500
450/750 |
1.5...185
|
227IEC05 (BV) |
0.5...1
| |||
BLV |
2.5...185
| |||
227IEC07(BV-90) | Heat resistant copper conductor PVC insulated wire at 90 0C | Mainly be laid at the places of high temperature environment and can be laid indoors, conduits. | 300/500 | 0.5...2.5 |
BVR | Copper conductor PVC insulated flexible cable | Be for laying permanent place where flexible required. | 450/750 | 2.5...150 |
BLVV | Aluminum conductor PVC insulated PVC sheathed round wires | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
|
|
BVVB | Copper conductor PVC insulated PVC sheathed flat wires | 300/500 | 1...10 | |
BLVVB | Aluminum conductor PVC insulated PVC sheathed flat wires | 300/500 | 2.5...10 | |
227IEC02(RV)
227IEC06(RV) | Copper conductor PVC insulated flexible connector wire |
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
450/750
300/500 |
1.5...240
0.3...1 |
227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector wire | 300/300 | 0.3...1.5 | |
RVS
| Copper conductor PVC insulated flexible twisting connector wire | 300/300 | 0.3...1.5 | |
227IEC52(RVV)
227IEC53(RVV) | Copper conductor PVC insulated PVC sheathed round flexible connector wire | 300/300
300/500 | 0.5...6
0.3...4 | |
227IEC08(RV-90)
| Cu conductor heat resistant PVC insulated flexible connector wire at 90℃ | Mainly used at the places where heat resistance is required | 300/500 | 0.5...2.5 |
