Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

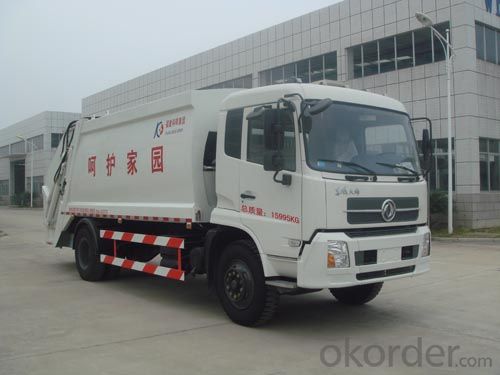

Container Garbage Truck 18m3 Detachable
Model NO.:HJK5250ZXXS4
Type:Rear Loader
Certification:ISO9000, CCC, CE
Volume:10001-15000L
Emission Standard:Euro 4
Payload:20T
Fuel:Diesel
Condition:New
Export Markets:Global
Origin:Xianning City, Hubei Province
HS Code:8705909990
Production Capacity:3000 Units/Y
1.Basic Information
Vehicle dimensions (mm): 8380*2500*3100 Total mass (kg): 25000
Rated load (kg):13405 Curb weight (kg):11400
Chassis model:DFL1250A11 Engine model: ISDe245 40
Displacement (ml)/ power (kw): 6700/180 Hook arm lifting force(kg): 20000
Effective volume of container (m3): 18 Maximum speed(km/h): 90
2. Main Application
The collector is widely used for the garbage disposal in places with concentrated population such as urban streets, residential areas, schools, hospitals, squares, etc. One collector may be equipped with more containers (generally one collector with eight containers), with self-compression and self-discharging functions, hydraulic operation and convenient dumping. It is the main garbage collecting and transferring vehicle at present.
| Chassis model | DFL1250A11 | Engine model | ISDe245 40 |
| Displacement (ml)/ power (kw) | 6700/180 | Rated load (Kg) | 13405 |
| Effective volume of cabinet | 18m³ | Hook boom lifting force (kg) | 20000 |
| Vehicle dimensions (mm) | 8380*2500*3100 |
