Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

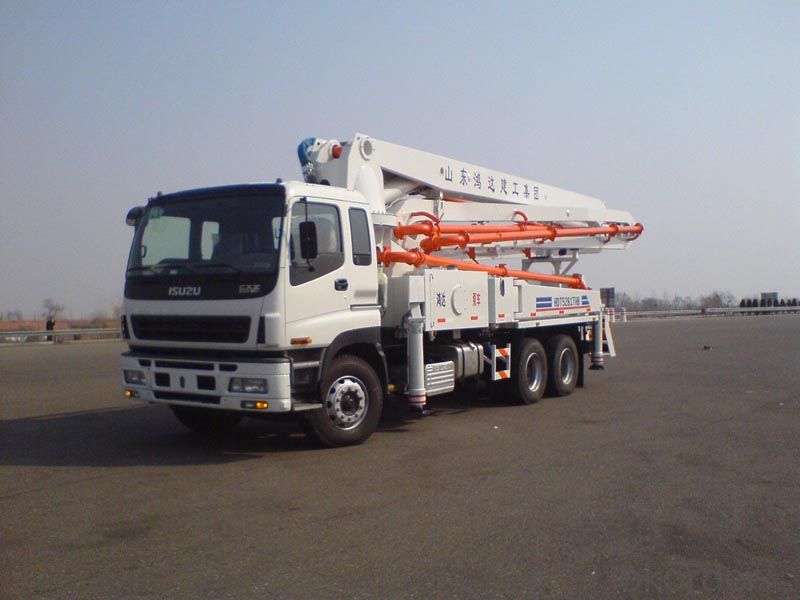

Concrete Pump Trucks Hjc5320thb Range Boom Pump
Model NO.:HJC5320THB
Export Markets:Global
Trademark:SHANTUI
Packing:Nude Packing. Wax Sprayed When Needed.
Standard:ISO9001
Origin:China(Mainland)
Production Capacity:1000 Units/ Month
| ITEM | HJC5320THB 47M | |
| Weight | 32300kg | |
| Max. speed | 85km/h | |
| Dimensions | Length | 12000mm |
| Width | 2500mm | |
| Height | 4000mm | |
| Engine | Type | 4-stroke, water-cooled direct-injection, turbo-supercharged diesel engine |
| Model | Isuzu 6WF1A | |
| Displacement | 14256 mL | |
| Power | 265kW/1800rpm | |
| Emission standard | Euro III | |
| Pumping system | Delivery cylinder bore | 230mm |
| Distribution valve | "S" valve | |
| Theoretical concrete displacement | Low pressure 120m3/h | |
| Theoretical pumping pressure | Low pressure 7MPa | |
| Hopper capacity | 0.6m 3 | |
| Feeding height | 1.55m | |
| Slump scope | 140–230mm | |
| Maximum aggregate size | 40mm | |
| System pressure | 32 MPa | |
| Pressure cut-off | Automatic (optional) | |
| Transmission | Model | MAL6U |
| Operation mode | Manual | |
| Forward gears | 6 | |
| Pumping gear | 5 | |
| Water pump | Drive method | Hydraulic drive |
| Cleaning output | 20 L/min | |
| Chassis model | Isuzu CYZ51Q | |
| Chassis drive mode | 6×4 | |
| All cabs equipped with A/C, sleeper | ||
| Wheelbase | 1–2 shaft | 4595mm |
| 2–3 shaft | 1310mm | |
| 3–4 shaft | - | |
| Tread | 1 shaft | 2065mm |
| 2 shaft | 1850mm | |
| Tire model | 295/80R22.5 | |
| Minimum turning radius | 8.8m | |
| Braking distance | ≤9.5m/30km/h | |
| Boom | Boom folding style | "RZ" |
| Quantities | 5 sections | |
| Turning angle of boom | 90° /180 ° /180° /250° /180° | |
| Rotation angle of turntable | ±365° | |
| Vertical reach | 46.8m | |
| Reach depth | 30m | |
| Horizontal reach | 42.8m | |
| Delivery pipe size | 125mm | |
| Hose length | 3m | |
| Hydraulic system pressure | 35MPa | |
| Outrigger | Outrigger spread method | "X" shaped |
| Outrigger spread L-R front | 9.23m | |
| Outrigger spread L-R rear | 9.99m | |
| Hydraulic system pressure | 25MPa | |
| Power system | Transfer case | Germany STIEBEL |
| Master pump | Germany Rexroth | |
| Boom/outrigger pump | Germany Rexroth | |
| Control method | Manual/remote | |
| Remote controller | Germany HBC | |
| Water tank capacity | 300L | |
| Tank capacity | 740L | |
| Hydraulic oil cooling method | Air cooled | |
