Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

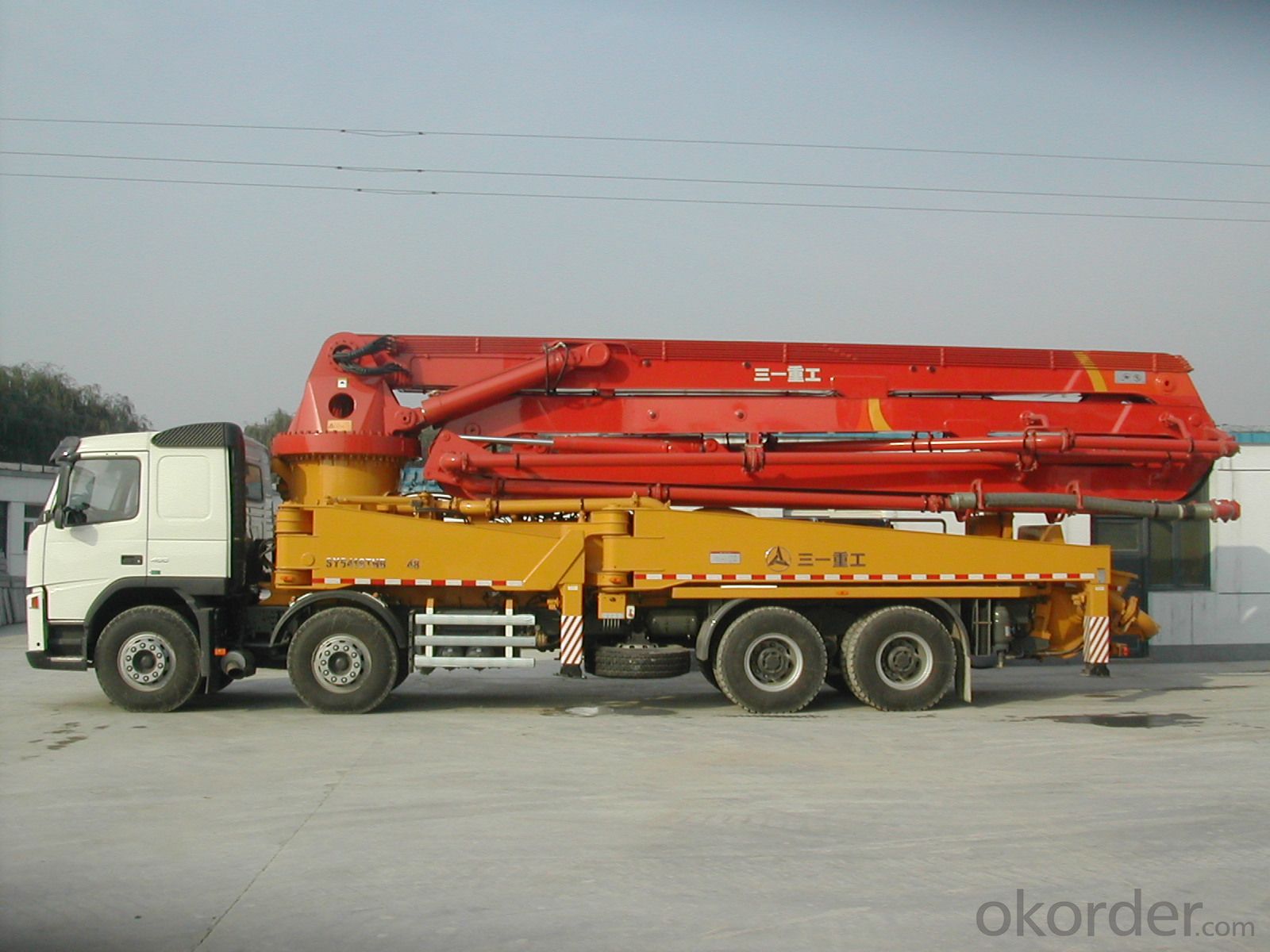

Concrete Pump Truck-Mounted Sy5190thb25
Model NO.:SY5190THB25
Type:Concrete Pump
Certification:ISO9001: 2000, CE
Condition:New
Vertical Reach:25.0m
Horizontal Reach:21.0m
Reach Depth:10.8m
Engine Power:240kw
Total Weight:18900kg
Capacity of Fuel Tank:400 L
Displacement:Euro III
Max.Speed:80km/H
Brake Distance:≤10m/30km/H
Minimum Unfolding Reach Length:6.4m
Export Markets:Global
Trademark:Sany
Packing:Nude
Standard:CE
Origin:China
Production Capacity:1000units/Month
| Model | SY5190THB25 | |||
| Overall Specification | Length | 10000mm(32′10″) | ||
| Width | 2500mm(8′2″) | |||
| Height | 3860mm(12′8″) | |||
| Total weight | 18900kg(41667 lbs) | |||
| Boom &Outrigger Specification | Vertical reach | 25.0m(82′) | ||
| Horizontal reach | 21.0m(68′11″) | |||
| Reach depth | 10.8m(35′5″) | |||
| Minimum unfolding reach Length | 6.4m(20′12″) | |||
| Arm1 | Length | 6500mm(21′4″) | ||
| Angle | 93° | |||
| Arm2 | Length | 4650mm(15′3″) | ||
| Angle | 180° | |||
| Arm3 | Length | 4650mm(15′3″) | ||
| Angle | 245° | |||
| Arm4 | Length | 5000mm(16′5″) | ||
| Angle | 245° | |||
| Pumping System Specification | Slewing circle | 365° | ||
| Outrigger spread L-R (front) | 5200mm(17′1″) | |||
| Outrigger spread L-R (rear) | 2240mm(7′4″) | |||
| Output | Low pressure | 100 m 3 /h(131 yd 3 /h) | ||
| High pressure | 60 m 3 /h(78 yd 3 /h) | |||
| Pressure | Low pressure | 8 Mpa(1160 psi) | ||
| High pressure | 16 Mpa(2320 psi) | |||
| Max. strokes | Low pressure | 30 times/min | ||
| High pressure | 16 times/min | |||
| Delivery cylinder diameter | 200mm(8″) | |||
| Stroke length | 1800mm(5′11″) | |||
| Hydraulic system | Open loop | |||
| Hydraulic system oil pressure | 32 Mpa(4640 psi) | |||
| Water tank capacity | 600 L(158 gal) | |||
| Pipeline size | 125mm(5″) | |||
| End hose length | 3m(9′10″) | |||
| End hose diameter | 125mm(5″) | |||
| Chassis specifications | Chassis model | SYM1160-01 | ||
| Engine type | HINO P11C-UH | |||
| Engine power | 240kW/2100rpm(326HP/2100rpm) | |||
| Capacity of fuel tank | Euro III | |||
| Displacement | 400 L(106 gal) | |||
| Max.speed | 80km/h(50mile/h) | |||
| Brake distance | ≤10m/30km/h(≤32′10″/19mile/h) | |||
