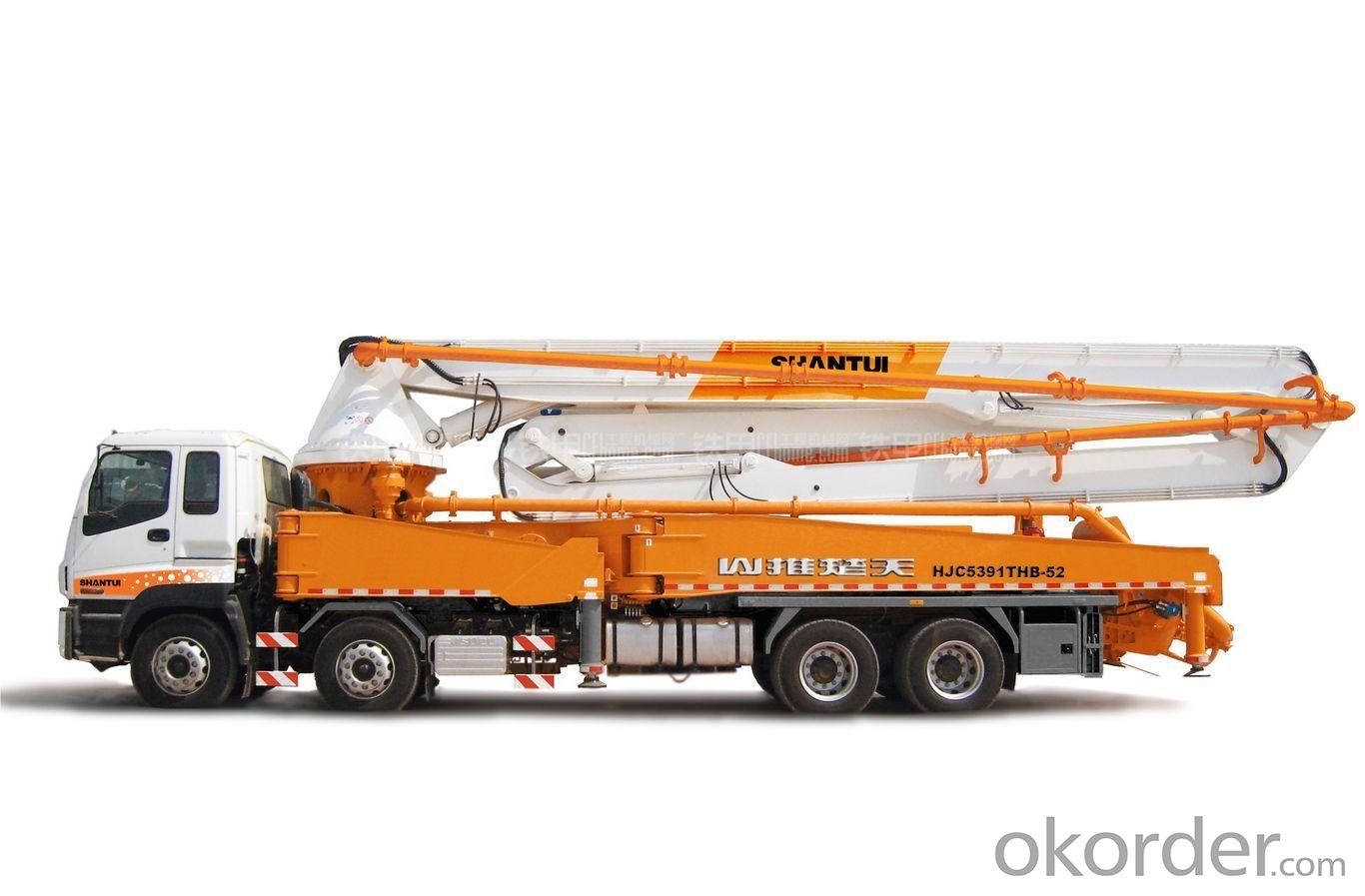

Concrete Pump Truck Factory Supply 52m Truck Mounted

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 PCS

Supply Capability:1500 PCS/month

Product Description:

Concrete Pump Truck Factory Supply 52m Truck Mounted

Product Details

Basic Info.

Model NO.:CLW Concrete Boom Pump Truck



Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Transmission Type:Manual



Emission Standard:Euro III

Displacement:8.7L



Engine Type:4 Stroke

Payload:25t



Fuel:Diesel

Drive Mode:6x4



Maximum Horsepower:<200hp

Condition:New



Description:Truck Mounted Concrete Hydraulic Pump

Capacity:28cbm



Concrete Outlet Pressure:10.5MPa

Feeding Height:Height



Fuel Type:Diesel

Tire:9.00r20, 6 Pieces+1 Spare Tire



Driving Model:4X2 6X4 6X2 8X4

Warranty:1 Year for 3 Parts(Engine, Gearbox, Axle)



Package:Bulk, RO-RO, Container, Naked

Color:Red, White, Green, Black, Gold, Blue



Export Markets:Global

Additional Info.

Trademark:CLW



Packing:Naked Package and Waxed Before on Board

Standard:ASME Standard, ISO,SGS,BV,CCC,SONCAP AND OTHERS



Origin:Hubei, China Made Concrete Mixer Truck

HS Code:8701909000



Production Capacity:100000PCS/Year

Product Description




Item

Unit

HB50K

Pumping system

Theoretical throughput

m³/h

120/170

120/170

Pumping concrete pressure

MPa

12/8

12/8

Number of theoretical pumping

times/min

18/27

17/24

 Transport cylinder inner diameter*stroke

mm

Φ260*2000

Φ260*2200

Feeding height

mm

1480

1480

Placing boom

Structure type


6RZ

7RZ

Placing boom max height/depth/radius

m

50/35.71/44.5

50/34.9/45.5

Turning angleof the boom

.

±270

±270

Others

High and low pressure switch-over


Auto

Auto
