Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

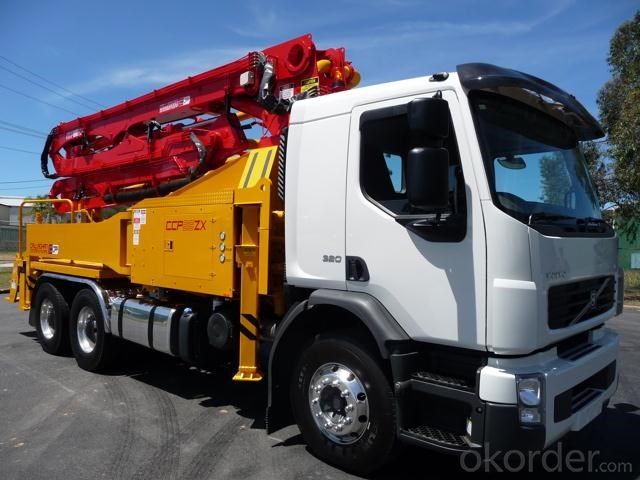

Concrete Pump Truck 56m , 56m Concrete Pump with Boom
Model NO.:SY5405THB 560C-8
Type:Concrete Pump
Machining Process:Welded Molding Machine
Feeding Height:as Required
Certification:ISO9001: 2000, CE, BV SGS etc
Condition:New
Color:as Required
Model:Sy5405thb 560c-8
Vertical Reach:56.0m
Horizontal Reach:51.0m
Reach Depth:36.6m
Unfolding Reach:15.2m
Emission Standard:National III
Engine Power:331kw/1800rpm
Max. Speed:85km/H
Concrete Theoretical Output:Lowe Pressure 180 M3/H
High Pressure:125m3/H
Export Markets:Global
Trademark:YU JIE
Packing:Nude Packing
Standard:CE, ISO, SGS, BV
Origin:Henan, China (Mainland)
HS Code:8413400000
Production Capacity:500 Sets / Year
Model | SY5405THB 560C-8 | |||
Vehicle Parameters | Length | 13790mm | ||
Width | 2500mm | |||
Height | 4000mm | |||
Dead Weight | 40000kg | |||
Boom & Outrigger | Vertical Reach | 56.0m | ||
Horizontal Reach | 51.0m | |||
Reach Depth | 36.6m | |||
Unfolding Reach | 15.2m | |||
1st Section | Length | 11390mm | ||
Articulation | 90° | |||
2nd Section | Length | 9230mm | ||
Articulation | 180° | |||
3rd Section | Length | 8750mm | ||
Articulation | 180° | |||
4th Section | Length | 11070mm | ||
Articulation | 240° | |||
5th Section | Length | 8080mm | ||
Articulation | 210° | |||
6th Section | Length | 3350mm | ||
Articulation | 110° | |||
Turntable Rotation Angle | ±360° | |||
Outrigger Spread Width -- Front | 9470mm | |||
Outrigger Spread Width -- Rear | 12680mm | |||
Pumping System | Concrete Theoretical Output | Lowe Pressure | 180 m3/h | |
High Pressure | 125m3/h | |||
Theoretical Pumping Pressure | Lowe Pressure | 8.3 MPa | ||
High Pressure | 12 Mpa | |||
Max. Strokes Per Min | Lowe Pressure | 29 times/min | ||
High Pressure | 19 times/min | |||
Delivery Cylinder Diameter | 260mm | |||
Delivery Cylinder Strokes | 2100mm | |||
Hydraulic System | Open Loop | |||
Hydraulic System Oil Pressure | 32 MPa | |||
Oil Tank Capacity | 680 L | |||
Water Tank Capacity | 620 L | |||
Pipeline Size | 125mm | |||
End Hose Length | 3m | |||
End Hose Diameter | 125mm | |||
Chassis | Chassis Model | HINO FY1EWV | ||
Engine Type | HINO E13CTR | |||
Engine Power | 331kW/1800rpm | |||
Emission Standard | National III | |||
Capacity of Fuel Tank | 400 L | |||
Displacement | 12.913 L | |||
Max. Speed | 85km/h | |||
Brake Distance | ≤10m/30km/h |
