Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

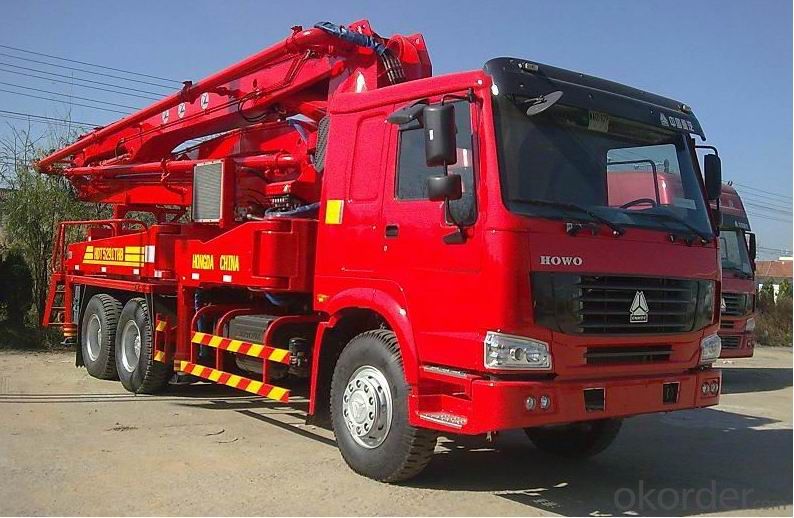

Concrete Pump Truck 15cbm Truck Mounted
Model NO.:CLW
Type:Concrete Mixer
Shotcrete Type:Dry
Machining Process:Hydraulic
Structure:Rotor Type
Productivity:60㎡/h
Feeding Height:1380mm
Vibrating Amplitude:1.0mm
Certification:ISO9001: 2000, CE
Condition:New
Color:Red
Description:Concrete Pump Truck
Drive Model:4X2
Engine Model:Isde185
Horse Power(HP):185HP
Emission Standard:Euro III
Material:Q235 Carbon Steel
The Maximum Loading Height (Mm):1450
The Hopper Volume (M3):0.65
Pumped Concrete Slump:160-220
to Allow Maximum Aggregate Size (Mm):40
Export Markets:Global
Trademark:CLW
Packing:RO-RO Bulk Naked Container
Standard:ISO, CCC, CE, ASME, ASTM, EEC
Origin:Hubei China
HS Code:87041090
Production Capacity:100000PCS/Year
· Established from 2004.
· 12 independents workshops.
· 1000 sets of equipment, 25 assemble lines.
· 300 senior engineers and technicians. About 2000 to 3000 workers
· 380kinds of trucks and semi-trailers.
· 20 years wholesale experience
· Turnover 250 million and Export 20million annually
· Turnover 2 billion trucks and semi-trailers annually.
· Truck Sold to 80 countries
· Cooperates with DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
| Description | Concrete Pump Truck | |||
| Drive Model | 4X2 | |||
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 9300X2350X3500 | ||
| Wheel base (mm) | 4500 | |||
| Overhang (front/rear) (mm) | 1250/3050 | |||
| Wheel track (front/rear) (mm) | 1810/1800 | |||
| Approach/Departure angle(°) | 20/10.5 | |||
| Weight in KGS | Curb Weight | 14955 | ||
| GVW. | 15150 | |||
| Max. driving speed(km/h) | 80 | |||
| Engine | Model | ISDe185 | ||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Horse Power(HP) | 185HP | |||
| engine capacity | 6700 | |||
| Emission standard | Euro III | |||
| Gearbox | 6 forwards & 1 reverse | |||
| Clutch | Reinforced diaphragm clutch | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||
| Tire | 9.00R20 , 7 pieces including one spare tire | |||
| axle load | 6000/10000 | |||
| Upper | ||||
| Material | Q235 carbon steel | |||
| Thickness | 16mm | |||
| Use life | 10 years | |||
| Work pressure | 31.5MPa | |||
| cylinder diameter | 1mm | |||
| pumping system | Pump Model | K3V180 | ||
| concrete outlet pressure | 10.5MPa | |||
| Cylinder bore/trip | 200-/1200,1450mm | |||
| The maximum loading height (MM) | 1450 | |||
| The hopper volume (m3) | 0.65 | |||
| pumped concrete slump | 160-220 | |||
| To allow maximum aggregate size (MM) | 40 | |||
