Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

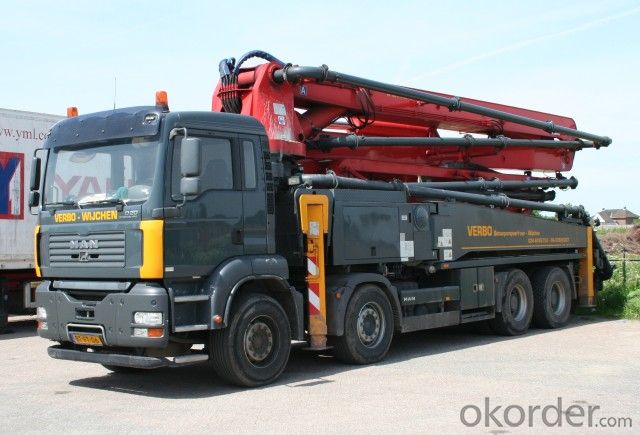

Concrete Delivery Pump 37m Truck-Mounted (HZZ5270THB)
Model NO.:HZZ5270THB
Transmission Type:Manual
Fuel:Diesel
Condition:New
Overall Dimensions(Mm):12500X2500X3740
Total Loading Mass(Kg):27000
Concrete Displacement(M3/H):120
Engine Power (HP):360
Hydraulic System:Germany Rexroth
Mutiple Valve:Germany Harwe
Remote Controller:Germany Nbb
Power:Diesel
Emission Standard:Euro 3
Truck Type:Cargo Truck
Export Markets:Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Trademark:China. Jinggong
Packing:Naked
Standard:ISO9001, CCC
Origin:Zhejiang. China
HS Code:8705909090
Production Capacity:2units/Month
| Model No. | 4R37 | |
| Pumping Section | Pump Displacement (m3/h) | 120 |
| Pumping Pressure (Bar) | 57-88 | |
| Pump Hydraulic Cylinder (mm) | 230x2000 | |
| Mixer Hopper Capacity (L) | 700 | |
| Boom Section | Boom folding type | "R"-shaped |
| The 1 st Boom unfolding height (m) | 8.5 | |
| Boom vertical reach height (m) | 36.45 | |
| Boom horizontal reach length (m) | 32.7 | |
| Boom depth reach height (m) | 23.9 | |
| Boom rotation ( o ) | 365 | |
| Concrete pipe (mm/inch) | 125/5'' | |
| Number of boom sections | 4 | |
| Chassis | Model | FAW |
| Drive Type | 8x4(RHD) | |
| Engine Power |
