Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month
Model NO.:KD5122ZYS
Certification:CE, ISO
Fuel:Diesel

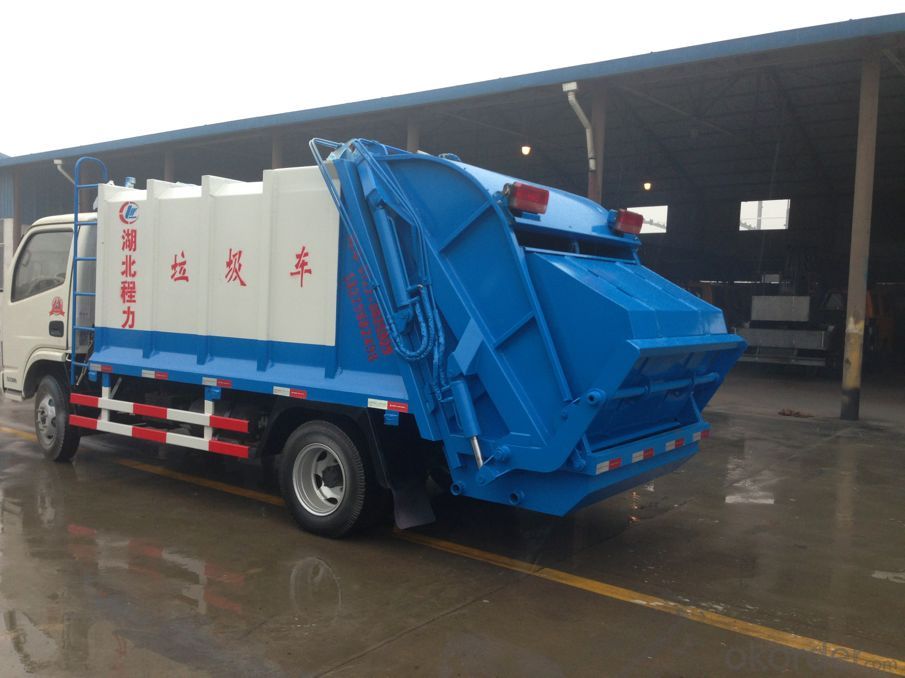

Machine Type:Garbage Transport Truck
Clean Type:Garbage Collect
Export Markets:Global
Trademark:KUDAT
Packing:Nude in Container
Standard:CE
Origin:China
HS Code:8704109000
Production Capacity:50 Units/Month
1. The latest technical is from Japan Kyokuto Kaihatsu Kogyo Co.,ltd.
2. Made by high strength and anti-corrosion steel, continuous welds, the whole vehicle is light, economical, stable and anti-rust.
3. Hydraulic system consisting of:
One hydraulic cylinder for push-out plate
Two hydraulic cylinder for tailgate opening
Two hydraulic cylinder for sledge
Two hydraulic cylinder for shovel
Two hydraulic cylinder for bin lifting system.
4. High legal payload
5. Beautiful outlook: Smooth body skin design.
6. Lifting device can be designed according to your requirements.
| Item | configure |
| Chassis model | DFL1120B1 |
| Engine model | Cummins ISDE180 30 |
| Rated power (kw) | 132 |
| Total weight (kg) | 12485 |
| Garbage truck weight (kg) | 8660,8420 ,8810 |
| Rated loading weight (kg) | 3630,3870,3480 |
| Overall dimensions (LxWxH) (mm) | 7700×2400×3020 (around) |
| Max. speed (km/h) | 90 |
| feeder nose capacity (m3) | 1.1 |
| feeder nose width (mm) | 1670 |
| feeder nose height from floor (mm) | 1250 |
| compressing way | Two-way |
| Loading Time(s) (s) | 17 |
| Unloading Time (s) | 20 |
| Lifting Time (s) | 15 |
| Refuse Container Capacity(m3) | 10 |
| Waste Water Tank (L) | 785=front 2*237+rear310 |
| Compressing thickness (t/m3) | 0.8 |
| Max. compressing force (kn) | 139 |
| Max. thrust/unloading force (kn) | 187 |
| Hydraulic system working pressure (Mpa) | 21 |
| Cab | With A/C |
