Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

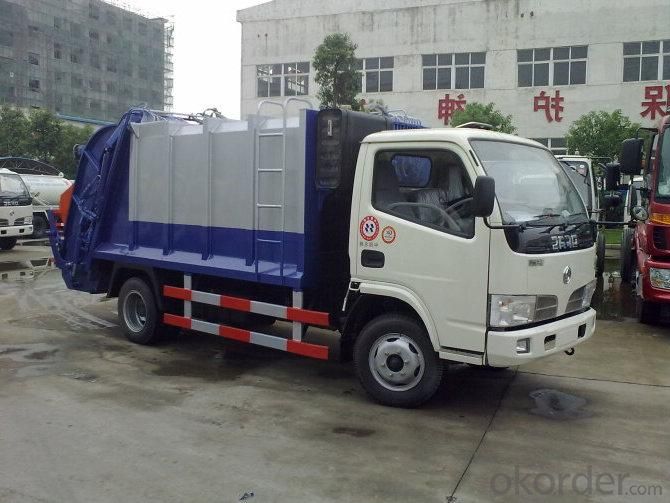

Compressed Refuse Garbage Truck Collecter (10m3/ 10000L)
Model NO.:QDZ5120ZYSZJ
Type:Compactor
Certification:ISO9000, CCC
Volume:6001-10000L
Emission Standard:Euro 3
Transmission Type:Manual
Engine Type:4 Stroke
Payload:20T
Fuel:Diesel
Drive Wheel:4×2
Brand:Sinotruk
Models:Medium
Usage:Compression Type
Chassis:Zz1167m4611W
Condition:New
Color:Optional
Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia
Trademark:SINOTRUK
Packing:Nude Packing
Standard:ISO9001, CCC
Origin:Qingdao, Shandong
HS Code:8705909090
Production Capacity:50, 000 PCS/Year.
| MAIN SPECIFICATIONS | |||
| Chassis Model | ZZ1167M4611W | Max. Speed (kg/h) | 72 |
| Pressure of Hydraulic System (MPa) | 20 | Max.Compression Force (kg) | >25000 |
| Kerb Mass (kg) | 9800 | GrossWeight (kg) | 12490 |
| Loading Mass (kg) | 2460 | Body Volume (m3) | 10 |
| Engine Model | WD615.87(Euro2/ Euro 3/ Euro 4) | Filler Volume (m3) | 1.5 |
| Engine Output (KW/r/min) | 213 | Garbage press coefficient | 0.67 |
| Cycle Time of Filling | ≤30 s | Lifting Time of Filler | 8-10 s |
| Time of Discharging | ≤30 s | Colour | Green |
| Overall Dimension (mm) | 8550X2500X3050 | ||
