Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

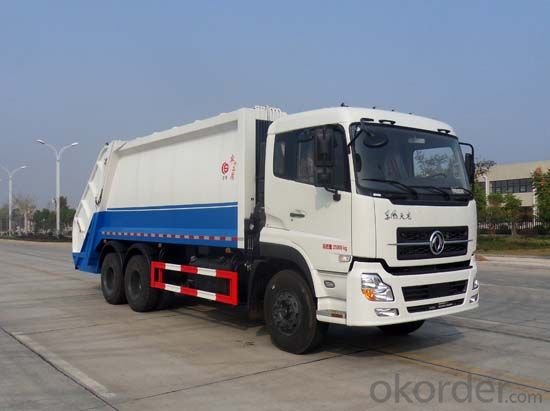

Compressed Garbage Truck Original PLC System
Model NO.:HJK5160ZYS
Type:Compactor
Certification:ISO9000, CCC, CE
Volume:10001-15000L
Emission Standard:Euro 4
Engine Type:Isde210 40/Isde180 40
Payload:5500kg
Fuel:Diesel
Chassis:Dfl1160bx4
Condition:New
Export Markets:Global
HS Code:8705909990
Production Capacity:3000 Units/Y
1. Basic Information
Vehicle dimensions (mm): 8800*2480*3070 Total mass (Kg): 16000
Rated load (Kg): 5500 Curb weight (Kg): 10305
Engine model: ISDe210 40 /ISDe180 40 Engine Power (kw/r/min): 155/2500 136/2500
Volume of container(m3):11.8 Maximum speed (km/h):100
Load cycle time (s):≤ 22 Unload cycle time (s):≤ 35
Maximum speed (km/h): 100 Rated pressure of hydraulic system(Mpa):18
Wheel base(mm): 4500 Minimum turning diameter (m): ≤17
| Chassis model | DFL1160BX4 | Engine model | ISDe210 40 /ISDe180 40 |
| Engine Power (kw/r/min) | 155/2500 136/2500 | Total mass (Kg) | 16000 |
| Rated load (Kg) | 5500 | Curb weight (Kg) | 10305 |
| Wheel base (mm) | 4500 | Cabinet volume (m3) | 11.8 |
| Vehicle dimensions (mm) | 8800*2480*3070 |
