Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

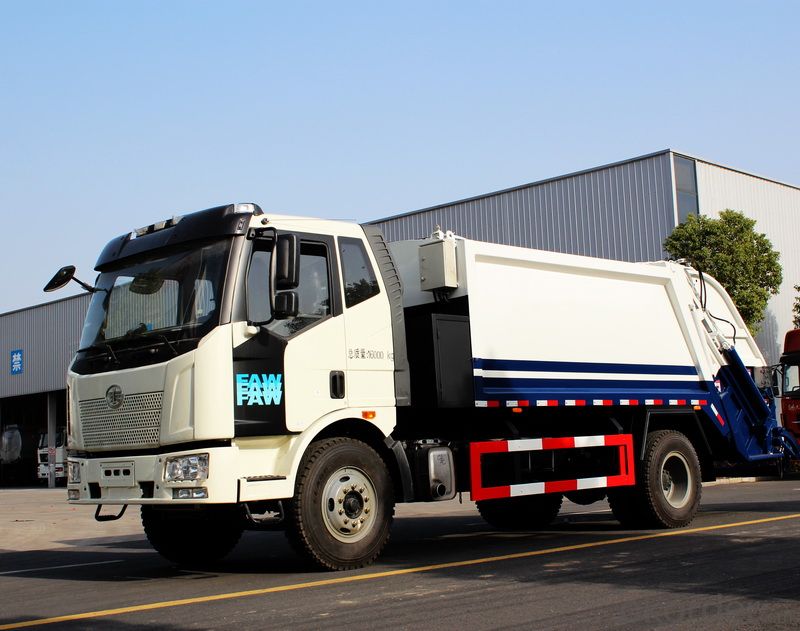

Compress Garbage Truck Low Price 4X2
Model NO.:VL3257
Type:Garbage Truck
Volume:3001-6000L
Emission Standard:Euro 3
Transmission Type:Manual
Engine Type:4 Stroke
Payload:6ton
Fuel:Diesel
Drive Wheel:4×2
Brand:Dongfeng
Models:Small
Usage:Compression Type
Chassis:EQ1110GLJ
Condition:New
Isuzu 6m3 Compress Garbage Truck:Truck
Power:Diesel
Truck Type:Garbage Truck
Tire Design:Bias
Seats:≤5
Tire Certification:ISO
Tire Type:Solid Tire
Load Capacity:10t
Export Markets:Global
Trademark:VELDLION
Packing:Nude Package or According to Your Requests
Standard:CCC & ISO9001
Origin:China
HS Code:8704223000
Production Capacity:300 Units/Month
(1) The garbage truck are mainly used for garbager collecting and transportation.
(2) Gross weight: 25000kg
(3) Overall Dimension: 8240× 2500× 3350mm
(4) Max Loading Weight: 30000kg
(5) Drive Mode: LHD/RHD, Diesel Engine
| Manufacturer | Hubei Veldlion Machinery Co., ltd | ||||
| Brand | Veldlion | ||||
| Chassis Model /Manufacturer | QL1100TPARY | ||||
| Overall Dimension | Length× Width× Height | mm | 8912x2170x2350 | ||
| Van Size | 2517*2065*1660 | ||||
| Total Mass | Kg | 10000 | |||
| Rated Payload | 6900 | ||||
| Kerb Weight | 3100 | ||||
| Engine | Model/Rated Power | 4HK1-TC 129KW | |||
| driving type | 4*2 | ||||
| Type & Size of Tyre | 950R17.5 | ||||
| Wheel Base | mm | 5200 | |||
| Approach/departure angle | ° | 25/16 | |||
| Front/Rear suspension | mm | 1110/2602 | |||
| Number of leaf spring of suspension | piece | 8/10+6 | |||
| Front/Rear track | mm | 1680/1650 | |||
| Max Speed | Km/h | 110 | |||
| Volume of compartment | m3 | 6 | |||
| Material of compartment | Carbon steel\inner epoxy anticorrosive | ||||
| Function brief introduction | Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. | ||||
