Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

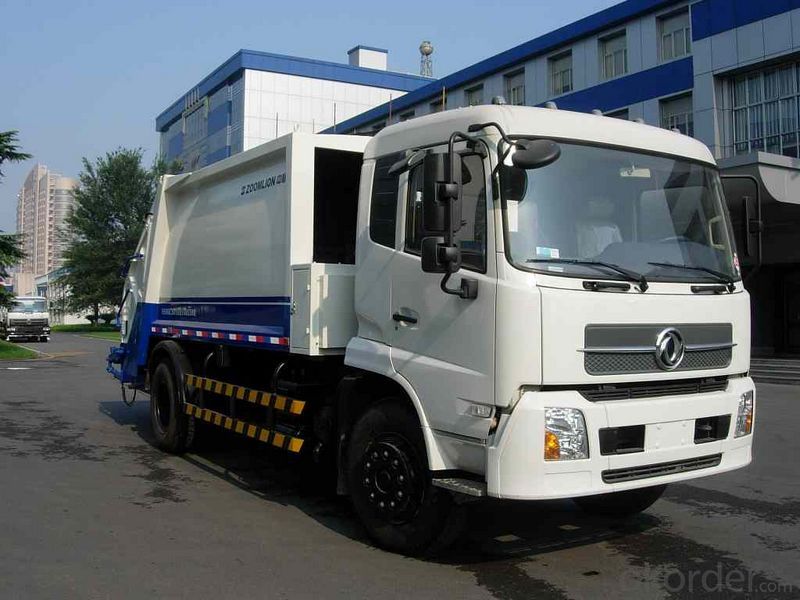

Compress Garbage Truck 4X2 with Low Price
Model NO.:CLW
Type:Compactor
Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Volume:＞15000L
Emission Standard:Euro 2
Transmission Type:Manual
Engine Type:4 Stroke
Payload:12-16ton
Fuel:Diesel
Drive Wheel:4×2
Brand:HOWO
Models:Medium
Usage:Compression Type
Chassis:Ca1160
Condition:New
Description:4X2 Compress Garbage Truck with Low Price
Volume of Body:5cbm/8cbm/10cbm/15cbm/17cbmwaste Trucks
Driving Model:4*2,6*4,8*4 Compress Garbage Truck
Tire:9.00r20 or 9r22.5 Tubeless Tire
Fuel Tank:300L Compress Garbage Truck
Material:Q235/345carbon Steel, Stainles
Driving Type:LHD or Rhd Compress Garbage Truck
Operation Type:Hydraulic Operation Compress Garbage Truck
Color:Blue, Yellow, White, Green, etc
After-Sales Service Provided:Overseas Trovided: Overseas Third-Party Support AV
Export Markets:Global
Trademark:CLW BRAND
Packing:RO-RO Bulk Naked Contaienr
Standard:ISO, CCC, CE CE, ASME, ASTM, EEC, ASME, ASTM, EEC
Origin:Hubei China
HS Code:8705909990
Production Capacity:1000 Set Per Year
The compress garbage truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
Dimension(LxW xH)(unloaded)(mm) | 8765*2500*3300 | |||
Cargo body capacity (LxWxH)(mm) | 10m³ | |||
Hydraulic system working pressure(Mpa) | 20 | |||
A cycle time filling job (s) | ≤25 | |||
A waste of time shift (s) | ≤45 | |||
Maximum crushing compression strength (kg) | >35000 | |||
Wheel base (mm) | 4600 | |||
Max speed(km/h) | 90 | |||
Curb weight(kg) | 7950 | |||
Loading Weight(kg) | 7920 | |||
Engine
| Model | WD615.87 290hp | ||
Fuel type | Diesel | |||
Power,max(kw/rpm) | 213/2200 | |||
Emission | EUROII | |||
Fuel tanker capacity (L) | 300 | |||
Transmission | Model | HW15710,10 forward&2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy | |||
Steering system | Model | ZF8098 | ||
Front axle | Steering with double T-cross section beam | |||
Rear axle | Pressed axle housing | |||
Tyre | 12.00-20 | |||
Electrical system | Battery | 2X12V/165Ah | ||
Alternate | 28V-1500kw | |||
Starter | 7.5Kw/24V | |||
Cab | HW70 | |||
