Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:25 m.t.
Supply Capability:10000 m.t./month
Surface Treatment:Coated
Technique:Cold Rolled
Standard:JIS
Type:Steel Coil
Special Use:High-Strength Steel Plate
Application:Building Material, Roofing, Household Appliance, E
Export Markets:Global
Trademark:TOPS
Packing:Standard Export and Seaworthy Packing
Standard:GB/T12754, JIS3312, EN 10169 ASTM A755
Origin:China

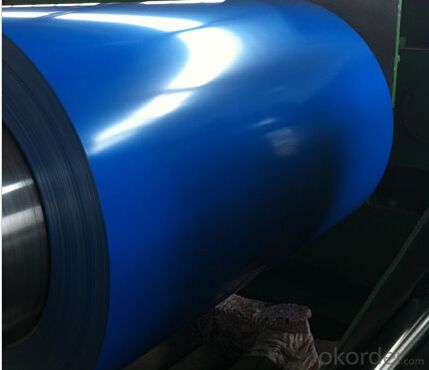

Color coated Prepainted Galvanized Steel Coils
Grade: SGCC, DX51D, CGCC
Thick: 0.17-0.8, Width: 58-1250mm
Coat: PE, SMP, HDP, PVDF
PPGI PPGL Prepainted Steel coil:
Color coated Prepainted galvanized Steel Coils
Certificate: ISO 9001/14001
The main specification is as belows:
Standards: GB/T12754, JIS3312, EN 10169 ASTM A755
Thickness: 0.14-0.8mm; Width: 914-1250mm
Tolerance: +2/0mm, thickness tolerance: +0.02/-0.02mm (or according to customers' request).
Coating mass: Top; 13-25, Back: 5-10
Coil weight: 5-8 metric tons
Coil DM: I. D: Φ 508m/610mm O. D: Max Φ 1500mm
Coating type: PE, SMP, HDP, PVDF
Common performance of front coating:
(1). Thickness: ≥ 20μ M
(2). Pencil Hardness: 2H
(3). 60° Specular glossiness of coating: >60
(4). 180° Bend: ≤ 3T
(5). Impact: ≥ 9J
(6). Salt Fog Resistant: ≥ 500h
(7). Color difference: <3Δ E
Application
1. Construction: (Outside) workshop, agricultural warehouse, residential precast unit, corrugated roof, wall, rainwater drainage pipe, terrace, retailer booth, roller shutter door
(Inside) door, doorcase, light steel roof structure, folding screen, ceiling, elevator, stairway, vent gutter
2. Electrical appliance: Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker
3. Furniture: Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf
4. Carrying trade: Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board
5. Others: Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment
| NAME | PPGI | GALVANIZED | GALVALUME/ALUZINC |
| CERTIFICATE | ISO9001 | ||
| STANDARD | GB/T-12754 JIS G 3312 EN 10169 ASTM A755 | GB/T-2518 JIS G 3302 EN 10142/10427 ASTM A653 | GB/T-14798 JIS G 3321 EN 10215 ASTM A792 |
| GRADE | SGCC DX51D SGCH CGCD1-CGCD3 CGC340-CGC570 GRADE | SS GRADE33-80 SGCC SGCH SGCD1-SGCD3 SGC340-SGC570 SGCC DX51D | GRADE33-80 SGLCC SGLCD SGLCDD SGLC400-SGLC570 SZACC SZACH SZAC340R |
| MODEL NO | 0.16MM-1.0MM*1250MM OR UNDER | (0.12-1.5)*1250MM OR UNDER | 0.16MM-1.5MM*1250MM OR UNDER |
| TYPE | Steel coil Steel sheets/plates Corrugated steel sheets/plates | Steel coil Steel sheets/plates Corrugated steel sheets/plates | Steel coil Steel sheets/plates Corrugated steel sheets/plates |
| TECHNIQUE | Hot rolled-cold rolled -galvalume /galvanized -PPGI/PPGL | Hot rolled-cold rolled - galvanized | Hot rolled-cold rolled -galvalume /Aluzinc |
| SURFACE TREATMENT | Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating,color | Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating | |
| APPLICATION | Structural use ,roofing, corrugated roofing, commercial use, household appliance, industry, family | ||
| SPECIAL APPLICATION | Wear resistant steel, high- strength - steel plate | ||
FAQ
1.What's your MOQ?
25MT, it is for one container.
2.Do you have QC teams?
Yeah, sure, our QC team is very important, they will keep the quality control for our products.
3. What's your normal delivery time?
Our delivery time about 10-20days for standard sizes, if you have other requirements like hardness and width ,it is about 20-40days. But don't worry ,we also try our best for the delivery time ,because time longer and our cost is higher.
4.Are the products tested before shipping?
Yes, all of our PPGI and GI was qualified before shipping. We test every batch every day.
