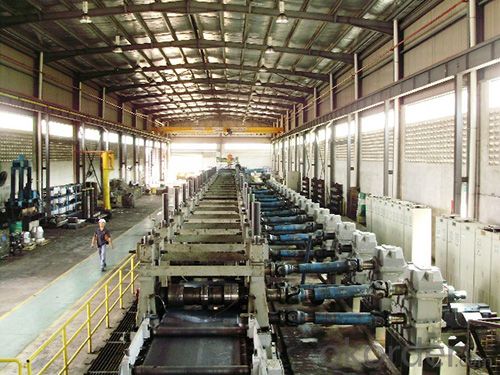

The introduction of coldrollforming section mill
The rolling plate in certainwidth is unfolded and leveled. Then, they are sent in to the forming machine.The steel plate is bent to be the needed form in the cold conditions by usingthe roller.
According to the differentproducts, the cold forming steel mills are divided into square pipe mill, steelsheet pile mill, and other kinds of mills.
Square pipe mill mainly producesthe square and rectangular pipes, all kinds of which in the range of roller productionspecifications can be achieved by using direct forming tectonics and theassisted high frequency welding machine.
Steel sheet pile mill mainlyproduces the steel sheet pile by adopting piecewise arc flexible formingtechnology. Steel sheet pipe mill in our company has reached the top level allaround the word.
Other models can produce U-steel,Hat shape steel, carriage U-steel, C-purlin and other steels by changing the roller
Main Equipment:
roll forming machine, hydraulic cutting, output table, hydraulic system, electric system.
1. The Chart of Process Flow
Decoiling-- feeding--roll forming--measuring length--cutting to
length--output
2. Main Equipment
Decoiler, main forming machine, hydraulic cutting, product stand, hydraulic
system, electric system.
3. Technical Parameters

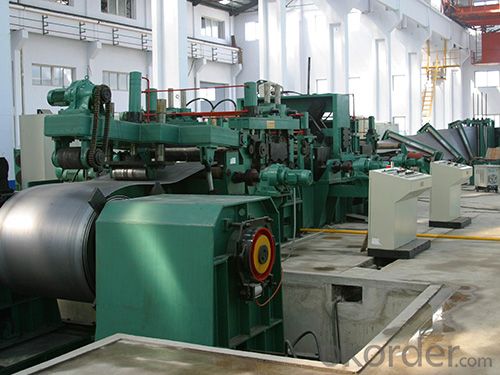

1) automatic inner tight decoiler
A. Coil inner diameter: 450mm-700mm
B. Max width of coiling: 1200mm
C. Max weight of loading: 6000kg
2) Main forming machine
A. Number of forming steps: 16-22(according profile)
B. Material of shaft: 45# steel adjustable treatment. diameter: 70mm
C. Material of roller: High grade 45# steel(plated chrome on surface)
D. Main motor power: 5.5kw
E. Forming speed: 10-15m/min
F. Stand: 350# steel welding structure
G. The plating chromium of roller surface: 0.05mm
3) hydraulic cutter
A. Material of blade: Cr12 with quenched treatment60-62º C
B. Cutting system: Adopt advanced hydraulic drive, automatic cut after forming,
no distortion, no waste, high safe factor(main motor stops and then cuts)
4. Electrical System
1) Screen display: touch screen
2) The main computer (PLC): Panasonic
5. Hydraulic System
1) Adopting advanced hydraulic system of Tai Wan
2) Power: 4KW
