Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:500pcs pc
Supply Capability:5000 Pieces Per Month pc/month

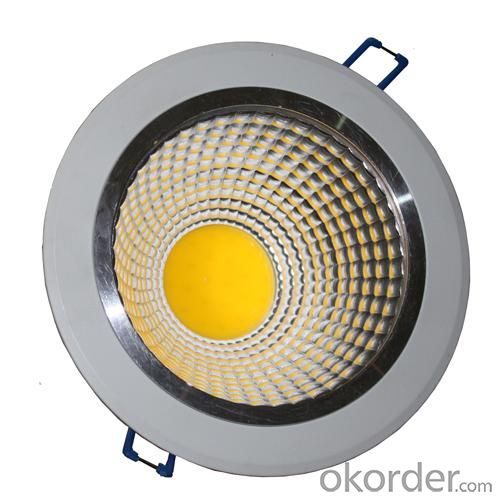

COB LED Down Light/ Ceiling Light
LED Down Light
Material:Die-casting magnesium alloys
Power:9W 15W 20W 30W 40W 60W
Light Source:COB led
2 Years Warranty
1.LED down light Housing:
Using die-casting mgnesium alloys as main material,durability and stable .
Thicker heat sink,wider heat dissipation area,excellent heat dissipation effect.
120 degree lighting angle ,prefectly replace traditional lights.
Adopt male and female connector ,easy to install.
2.LED Down Light Chip:
Using cob led as light source ,good lighting effect.
High luminous efficiency and high CRI.
Lighting softly and evenly ,no glare,no UV,protect your eyes from harmful .
Epistar chip or Cree CXA2520 Chip,full meet different customer needs.
3.LED Down Light Driver:
Using high power efficiency and high power factor led driver (PF>0.9).
AC100-240V wide operating voltage ,suitable for worldwide customers.
External led driver ,easy to replace .
CE&RoHS approved driver ,meanwell driver also available.
All of the drivers will be tested before applying.
Specification of Down Light:
15W cob led down Light | |
Shell material | Die-casting mgnesium alloys +PC cover |
Aluminium Housing Color | Milky white+black |
Mercury-free | Yes |
Recycling | Yes |
Certificates | CE, RoHS |
40W LED Down Light main electrical data | |
Model Number | CNBM-COB07-15W |
Power/wattage (W) | 15W |
Input Voltage (voltage range) | AC85-265V |
Operating frequency | 50~60 Hz |
Rated starting time (s) | 0.1s |
Power factor(PF) | >0.9 |
Dimmable | Yes |
Lifespan | 50,000 hours |
Warranty | 2 years |
40w led down light Technical Data | |
LED Light Source | 1 Pcs COB |
LED Chip brand | Epistar/Bridgelux |
Luminous efficacy (LM/W) | 90-100 LM/W |
Beam Angle | 60/120° |
Color rendering index (Ra) | >80 |
Emitting Color | WW/NW/PW/CW |
Color temperature (k) | 2700-6500K |
Operating temperature(Celsius degree) | -20~+50 Degrees Celsius |
Storage temperature(Celsius degree) | -30~+65 Degrees Celsius |
Operation Humidity(RH) | 10%~90% |
IP rate | IP 44 |
40w led down light dimmension | |
Products size | D226*H108mm |
Cut hole size | D210mm |
Applicaiton of LED Down Light:
Landscape accent, Spot lighting
Architectural Lighting
Display Case Accent
Artwork Lighting
Mood Lighting, General lighting
Amusement Park Accent
Residential, Institution buildings
Restaurant, hotel
