Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:10 unit/month

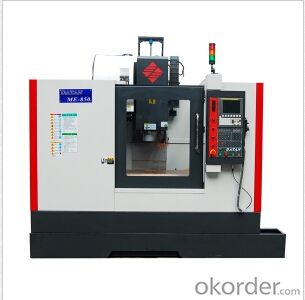

ME850, as the pioneer of 850 vmc in China, has had thousands of customers. It x/y/z axis is 850/500/550mm,with Syntec, Siemens, Fanuc, etc.are available, linear guideway, Armtype 24 tools(opt.), and 6 rams design as well as economical price. In this processing video, it is doing plane and hole milling for a wheel hub(material:cast aluminium). ……
SPEC
Model No. |
ME-850 | |
Capacity |
X axis travel/mm | 850 |
Y axis travel/mm | 500 | |
Z axis travel/mm | 550 | |
Spindle nose to table surface/mm | 150-700 | |
Spindle nose to column surface/mm | 550 | |
Worktable | Table Size(L*W) | 1000*500 |
Max Load on the table/kg | 500 | |
T-Slot Size/mm | 18*5*100 | |
Spindle | Spindle speed/rpm | 60-8000 |
Spindle taper/spindle shank | 7/24Taper/BT40
| |
Spindle bearing internal diameter | Φ70 | |
Feed rates
| Rapid traverse of X,Y Axis m/min | 24/24/24 |
Max. cutting feed rate m/min | 10 | |
A.T.C
| Tool storage capacity/pcs | 24 |
Maxi Tool diameter(adjacent tool)/mm | Φ150 (Φ80) | |
Max tool length/mm | 300 | |
Tool Change Time (T-T/C-C)/sec | 2.5 | |
Motor | Spindle Motor | 7.5 |
X/Y/Z axis servo motor/kw | 1.8/1.8/2.5 | |
Precision | Positioning accuracy/mm | ±0.01 |
Repeated Positioning accuracy/ mm | ±0.005 | |
Machine dimension
| Height of Machine /mm | 2330 |
Floor Area(width x depth)/mm | 2730*2200 | |
Machine weight/kg | 5000 | |
Power Requirements/kva | 20 | |
milling machine controller | Siemens 808D | |
