Loading Port:Tianjin
Payment Terms:TT or LC
Min Order Qty:1 pallet
Supply Capability:100000000 pallet/month
Product Description:
We import solar cells from
Product Features:
• High efficiency crystalline solar cell: Even if under weak light, the solar module can produce maximum power output.
• Tempered glass (toughened glass): Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
• EVA and TPT: Using high quality EVA and TPT to prevent destroying and water damage.
• AI frame: Without screw, corner connection. There are six holes on the frame, which can be installed easily.
• Junction box: Multifunction waterproof junction box.
• Long lifetime: +25 years; lower power decrease.
• Quality performance of preventing from atrocious weather such as wind and hails.
• Resists moisture and etching effectively, not effected by geology.
• The certificate issued by international authority: UL, TUV, IEC, VDE, CE.
• Rigorous quality control meets the highest international standards.
• High-transmissivity low-iron tempered glass, strong aluminum frame.
• Using UV-resistant silicon.
• IS09001/14001/CE/TUV/UL
• Warranties
- 10 years limited product warranty
- 15 years at 90% of the minimal rated power output
- 25 years at 80% of the minimal rated power output
Product Applications:
· Annealing furnaces
· Furnace door linings and seals
· Soaking pit covers and seals
· Furnace hot face repairs
· Reheating furnace and ladle covers
Product Specifications:
Minimum Order Quantity: | 1 pallet | Unit: | pallet | Loading Port: | Tianjin |
Supply Ability: | 100000000 pallet/month | Payment Terms: | TT or LC | Package: | Wooden Pallet |
ITEM NO.: | Poly 156*156 cell, 60pcs. Power range from 230Wp-260Wp | ||||||
Maximum Power (W) | 230 | 235 | 240 | 245 | 250 | 255 | 260 |
Optimum Power Voltage (Vmp) | 29.4 | 29.5 | 29.7 | 30.1 | 30.3 | 30.5 | 30.7 |
Optimum Operating Current (Imp) | 7.83 | 7.97 | 8.08 | 8.14 | 8.25 | 8.37 | 8.48 |
Open Circuit Voltage (Voc) | 36.7 | 36.8 | 36.9 | 37.1 | 37.3 | 37.5 | 37.7 |
Short Circuit Current (Isc) | 8.52 | 8.59 | 8.62 | 8.65 | 8.69 | 8.73 | 8.78 |
Solar Cell: | 156*156 Poly | ||||||
Number of Cell (pcs) | 6*10 | ||||||
Name of Solar Cells | Polycrystalline Cell | ||||||
Size of Module(mm) | 1650*992*40/45/50 | ||||||
Cable & Connector Type | Pass the TUV Certificate | ||||||
Frame | Aluminum-alloy | ||||||
Back Sheet | TPT | ||||||
Weight Per Piece(KG) | 19.5KG | ||||||
FF (%) | 70-76% | ||||||
Junction Box Type | Pass the TUV Certificate | ||||||
Tolerance Wattage (e.g.+/-5%) | ±3%, or 0-3% | ||||||
Front Glass Thickness(mm) | 3.2 | ||||||
Temperature Coefficients of Isc (%) | +0.04 | ||||||
Temperature Coefficients of Voc (%) | -0.38 | ||||||
Temperature Coefficients of Pm (%) | -0.47 | ||||||
Temperature Coefficients of Im (%) | +0.04 | ||||||
Temperature Coefficients of Vm (%) | -0.38 | ||||||
Temperature Range | -40°C to +85°C | ||||||
Surface Maximum Load Capacity | 5400Pa | ||||||
Allowable Hail Load | 23m/s ,7.53g | ||||||
Bypass Diode Rating(A) | 12 | ||||||
Warranty | 90% of 10 years, 80% of 25 years. | ||||||
Standard Test Conditions | AM1.5 1000W/ 25 +/-2°C | ||||||
Packing | carton or pallet | ||||||
1*20' | 14 Pallets / 316pcs | ||||||
1*40'STD | 25 Pallets / 700pcs | ||||||

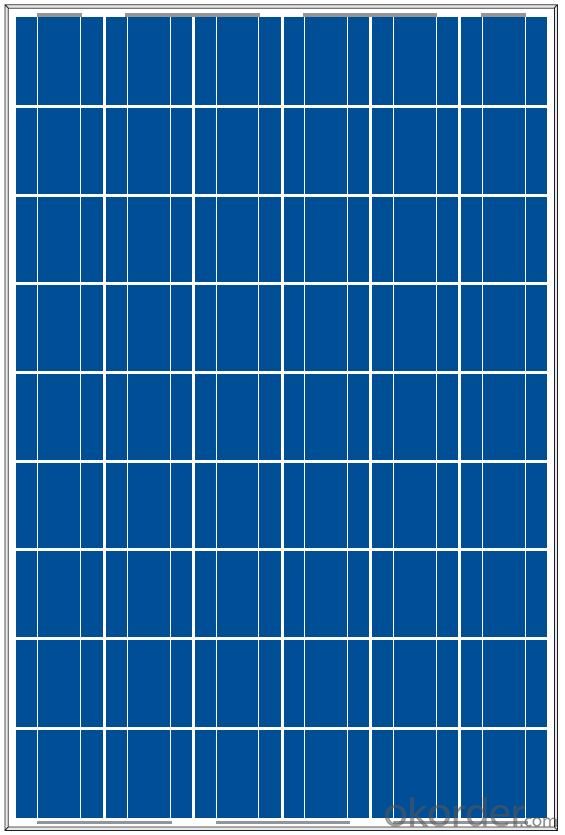

Product Images:
FAQ:
Q1: Why buy Materials & Equipment from OKorder.com?
A1: All products offered by OKorder.com are carefully selected from
Q2: How do we guarantee the quality of our products?
A2: We have established an advanced quality management system which conducts strict quality tests at every step, from raw materials to the final product. At the same time, we provide extensive follow-up service assurances as required.
Q3: What other products does OKorder.com offer?
A3: We offer a full range of refractory bricks, mortar, cement, ceramic fiber products, and more.
Q4: Where is Ceramic Fiber products used?
A4: Ceramic fiber products have many advantages, including: high temperature stability, lightweight, superior insulation, and ease of application. Fiber products are available in a variety of product forms to solve a range of thermal management application problems across various industries. The main industrial market segments that use ceramic fiber and soluble fiber products are the aluminum, iron, steel, heat treatment, power, incineration, boilers, and glass industries.
Q5: What kind of Ceramic Fiber should I use?
A5: When selecting the fiber type for a particular application, it is important to consider all factors. If the fiber/fabric will not have to support a load at temperature, the lower-cost industrial grade fibers may be appropriate. However, if the fiber will be load bearing at temperature as in ceramic matrix composites, then one of the composite grade fibers would be a better choice. Of course there may be other factors, such as corrosion, chemical resistance, or atmospheric conditions that may require trade-off in the selection process.
