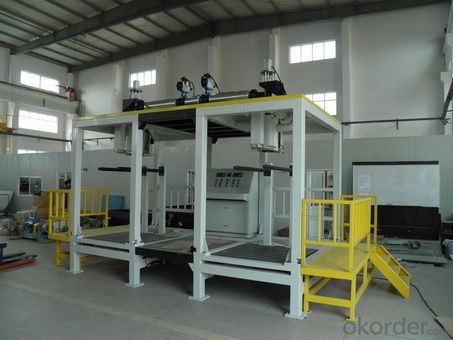

CNBM 1000 Ton Bitumen Packing Machine

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 set

Supply Capability:1 set/month

Product Description:

CNBM 1000 Ton Bitumen Packing Machine

I. Application and performance

Coating filling machine is applied to fill coating, paint, ink, lubricant, oil and so on, fine chemical, daily chemical, foodstuff material, pharmacy material, bitumen and so on.

II. Features
Coating filling machine is composed of SS roller conveyor, filling postion, feeding cap, capping, electrical control, pneumatic control and vacuum control. Manual feeds drum at inlet of conveyor, which is conveyed to feeding position, when sensor checks drum, weighing position stays to wait, pusher pushes drum to filling and weighing platform. The sensor checks drum, open filling nozzle and feeding valve automatically, fast filling to set value, feeding valve closes and slow filling, to set value, filling nozzle closes. After feeding cap, pusher pulls the drum to conveyor to feeding cap. When the sensor checks drum, stop it and catch cap rotate then put it on the drum, then to capping position. When capping sensor checks drum also stop it then cap it, after that, capping head resets, orientator releases it to be discharged out.

III. Technical parameter

Compose:CNBM-1000KG filling machine is composed of : “with temperature input pipe and valve ”、“auto weight filling unit”、“control system”、“work platform” “safety guard” filling system material contact part is SUS304 stainless steel, others are carbon steel surface spray powder processing.

Filling system main parameter:

Filling container：1000kg bag

Filling material：liquid(high temperature≤130℃)

capability request：

Filling range: 500-1000KG

Filling speed: 10P-15P/hour

Voltage: 380V/220V±10%V AC50Hz

Power:≤7.5kw

Filling accuracy： ±0.2%

Air pressure: 0.5-0.7Mpa

Air source：0.1m³/min

Connect way: DN50 (material connect pipe) flange connect
