Brief introduction of TC5613
CNBM offers complete product portfolio, and the products are widely used in building houses, highways, bridges, water conservancy projects, etc. Featuring advanced technology, safe and reliable quality, timely and professional services, Huba products are very popular among customers both at home and abroad
Detail of CMAX TC5613
Feature:Tower Crane
Condition:New
Model Number:TC5613
Place of Origin: China (Mainland)
Brand Name: CMAX
Certification: ISO,CE
Warranty: 1 Year
Application:Building,Construction,Industrial
Main Features of CMAX TC5613
It has characteristica such as long boom, largeworking coverage, hydraulic rising, and tandem mounted tower body.
It's design idea shows advantages including simple structure and good applicability, convenient maintainability, and lower price at the same time to emphasize meeting the requirement from construction units at different levels.
It's lifting height is obviously increased thanks to its self-erecting and wall attached function.
It is applicable for construction of different industrial, commercial, office, and civil building lower than 220m, and becomes an ideal service-building machine at home.
Specification of CMAX TC5613
Free standing height (m) | 46 | ||
Max height with attachment (m) | 150 | ||
Working range can be adjusted（m） | 45、50、56 | ||
Min working range（m） | 2.5 | ||
Max lifting capacity（t） | 8 | ||
Tip load @ 50m（t） | 1.8 | ||
Hoist mechanism | Falls | 2 | 4 |
Lifting capacity（t） | 1.5-3 | 3-8 | |
Speed（m/min） | 0-80 | 0-40 | |
Motor | YZRDWF225M-4/8-30/30KW | ||
Trolleying mechanism | Speed（m/min） | 12/27/53 | |
Motor | YZTDE132L-4/8/16-3.3/2.2/1.1KW | ||
Slewing mechanism | Speed（r/min） | 0-0.6 | |
Motor | YZR132M2-6-3.7KW×2 | ||
Climbing speed（m/min） | 0.58 | ||
Counterweight（t） | 44m jib length | 55m jib length | |
13 | 15.05 | ||
Mast section size（L×W×H）m | 1.6×1.6×3m | ||
Working temperature | -40－+60℃ | ||
Total power (KW) | 42 | ||
Power supply requirement (KVA) | 170KVA for generator | ||
Cable type ( within 40 meters from site power source to lower electric box of tower crane ) | |||
Startup voltage & current | 380V×95%=361V 170A | ||
Rated working voltage & current | 380V 108A | ||
Loading diagram：
56m jib length：
R | 2.5-15.5 | 17 | 20 | 23 | 26 | 28.1 | 29 | 15 | 50 | 52 | 56 |
a=2(t) | 3.00 | 2.91 | 2.32 | 1.90 | 1.73 | 1.38 | |||||
a=4(t) | 6.00 | 5.40 | 4.48 | 3.80 | 3.29 | 2.99 | 2.88 | 2.29 | 1.87 | 1.70 | 1.30 |
50m jib length：
R | 2.5-15.7 | 17 | 20 | 23 | 26 | 28.7 | 29 | 32 | 35 | 47 | 50 |
a=2(t) | 3.00 | 2.97 | 2.63 | 2.36 | 2.37 | 1.88 | |||||
a=4(t) | 6.00 | 5.49 | 4.56 | 3.87 | 3.35 | 2.97 | 2.94 | 2.60 | 2.33 | 2.37 | 1.8 |

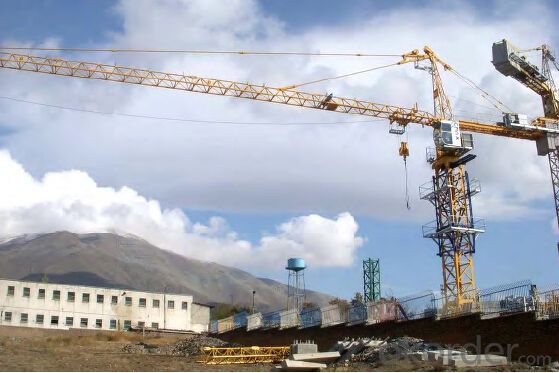

Images of CMAX Tower Crane
FAQ about CMAX Tower Crane
Q: What serice you could provide? A: Providing timely delivery, standby engineers are ready to slove any of your problem Providing all-embraced warranty of products quality, worksite installation guidance Providing ample spare parts and training of operation and maintenance Engineers have more than 20 years' experience in tower crane, ready to solve any of your problems.
Q: What kind of steel used for tower crane ? A: Normally, as for the main force bearing steel structure, Q345B is adopted; as for the assistance force bearing steel structure Q235B is adopted. All of the raw material is outsourced from qualified steel factory in China.
Q: Can you equip with light on tower crane jib, monitor, remote control and anemometer? A: Sure. All of these could be provided with extra cost upon the clients' requirements. But according to general practice, remote control is not suggested because most of the operator feedback operation in the cabin will provide a wide working
Q:Structure A:Tanks to the advanced design tools, such as electro-mechanical design, CAD design, optimization design, and modular design, the tower crane proves to be a kind of optimum construction equipment that shows not only superb strength, stiffness and fatigue resistance but also outstanding comprehensive performance and reliability.
| |||||
