Product description:
High quality and stable gear distribution transmitting system
The system is designed with high torque,the gear are high precisely processed.With the reasonable oil immersion device and the force lubrication system and the chain protection device enable the extruder can be smoothly and stably runing.From the very limited space,we designed a new stle pivot with apline frame to ensure biggest bearing ability and realize high torque transmission Precise and convenient controlling system:optional separate controlling unit,analogue panel display,PLC system ,PLC system contralling.Low noise.The machine can be installed easily on the flat ground
Technical parameter
Model | Series | D(mm) | L/D | n(r/min) | P(kw) | T(N.m) | T/A³ | Q(kg/h) |
CMAX-50 | A | 50.5 | 32-60 | 500 | 45 | 405 | 5.1 | 120-200 |
B | 600 | 55 | 415 | 5.2 | 155-255 | |||
C | 600 | 75 | 565 | 7.1 | 200-355 | |||
D | 600 | 90 | 680 | 8.5 | 255-400 |
Applicable material type
Technics process | Typical material |
Blending modification | PP+EPDM;PE,PS+SBS;PVC+NBR |
EVA+ Silicone rubber;TPR Sole material
| |
PP+PE;PBT+PET;PA,PC,CPE,TPU+ABS | |
Filling and modification | PP,PE,PS,EVA+ Calcium carbonate, Talc, Titanium dioxide
|
PP,PA6,PA66,ABS+ Iron powder, Magnetic powder, Ceramic powder | |
General and libre masterbatch | PE,PP,PS,ABS,EVA,PET+ Inorganic or organic pigment
|
Functional Darent granule | Carbon black masterbatch:PE,PP,ABS,EVA+ Carbon black
|
The flame retardant masterbatch:PP,ABS,PA,PBT+ Flame retardant agent and additives
| |
Degradable Masterbatch:PE,PS+ Starch;PP+ Calcium carbonate ,talc powder
| |
Variable Masterbatch: Cooling Masterbatch; Gao Baowen masterbatch ; modified masterbatch rheological
| |
Glass fiber masterbatch | PP,ABS,AS,PBT,PA,PC,PPS+ |
PP,ABS,AS,PET,PA,PET,PC,PPS | |
PPO Long glass fiber or glass fiber or whisker
| |
Various cable material | HDPE,LDPE,LLDPE,MDPE Insulating material, Sheath material
|
PE Radiation crosslinking ,PE Crosslinked cable material
| |
Low smoke and low halogen PVC cable material,
| |
Powder coating | Polyester type, Polyurethane,, Epoxy resin, Propylene type, Acrylate type |

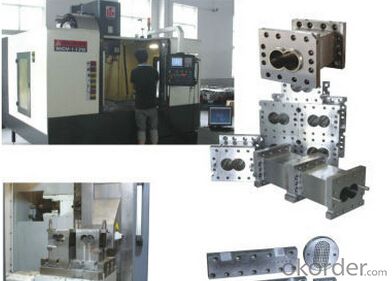

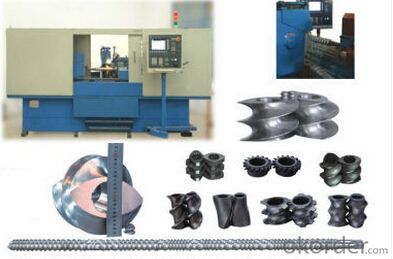

Machine Photos
End-production Photos:
FAQ
1.What will be your end products?(cat/dog/fish feed?)
2.What capacity do you require?(How many tons/h)
3.Do you need a single machine or the whole line?
4.Do you need Computer automatic batching system?
1.The MOQ: one set/sets.
2.Payment terms is T/T
3.Delivery time is 1~3 month
4.The Prot:Shanghai in China.
5.Shipping Terms: FOB
