This Cleaning Roller Machine with Spiral Sheet is used to produce lint roller, cleaning roller with spiral sheet. The material is paper which is coated special adhesive for cleaning out dust dirt.
2.Main Features
1. Each cut need just 0.5s. (need to change for the different thickness );
2. Circuit adopt import plc programmable logic controller control, and color touch-screen operation;

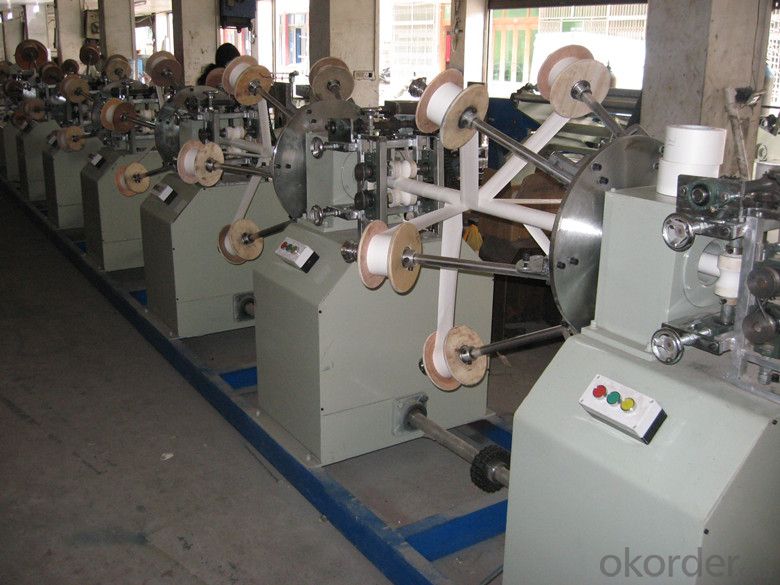

3. Images
4. Specifications
Main technical parameter | |||
Roll layers | 6-90 layers | Operator | 2-3 person |
Operate way | Spiral | Host ratio | Turbine reducer 1:30 |
Diameter of core | 35-42 mm | Product speed | 1-8 m/min |
No. of roller m/c | 15 sets | Cutting way | Saw cutter |
Main motor | 11 KW | Mainframe size | 16000*1000*1500 mm |
Cutting motor | 2.2 KW | Way of fix length | Double infrared |
Feeding way | Single or double glue | Speed control | Transducer |
Voltage | 3*380V | Wall thickness | 2-7 mm |
