Loading Port:China Main Port
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:-

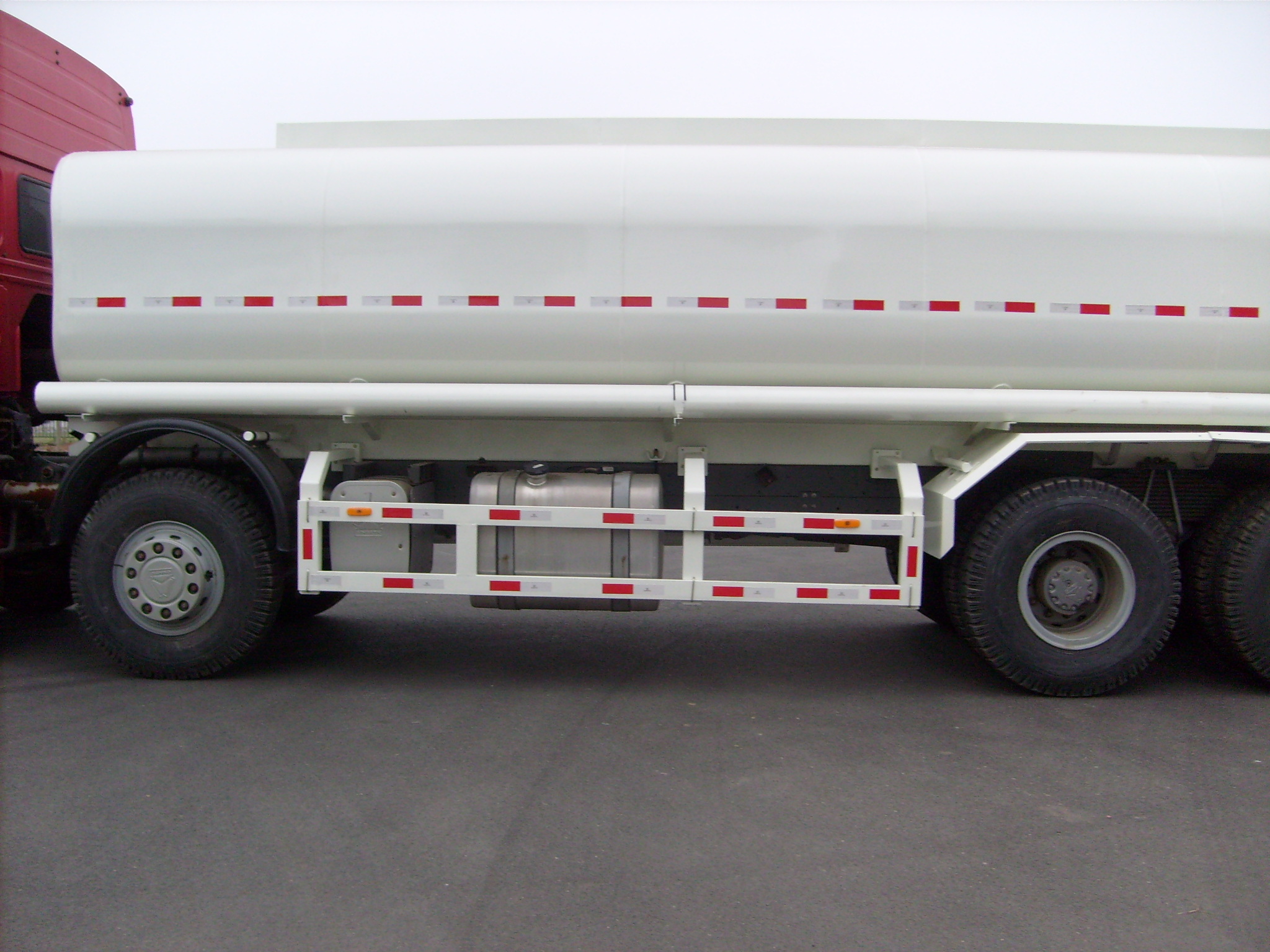

Model: CLY5310GSS | |
Overall size (mm) | 11985(L)* 2500(W)*3630 (H) |
Wheel base (mm) | 1800+4575+1400 |
Min. ground clearence(mm) | 260 |
Min. turning diameter(m) | 24 |
Max. Speed (km/h) | 90 |
Chassis | |
Manufacturer | Sino truck |
Model | ZZ1317M4669V |
Steering system | Power steering |
Transmission | Manual, ten speeds |
Brake system | Dual circuit air-pressure braking system |
Tyre | Common tyre, amount:12+1, type: 11.00-20 |
Air-condition | A/C in cab |
Engine | |
Model | WD615.92E |
Max. Power (hp) | 266 |
Engine type | L6, four strokes, water-cooled, supercharged inter-cooling |
Fuel type | Diesel oil |
Tank body parameter | |
Tank actual volume(m3) | 20-40 |
Tank material | Carbon steel, optional for stainless steel, alloy aluminum |
Water pump | 80QZF-60/90, spontaneous imbibitions centrifugal pump |
High pressure jet gun | One set |
Spray nozzle | front washer: 2 set, rear sprinkler: 2 set, lateral jet: 2 set |
