Brief Introduction
Grade: RP, RPI, HP, SHP, UHP
Diameter: 50~ 600 mm (2 ~ 24 inch)
Length: 1000-2700mm
Material: Made of high quality petroleum coke, needle coke and coal tar pitch, appreciated by many foreign clients.
Specification
Physical Properties
| Unit | RP Grade (Dia.50-600mm) | HP Grade (Dia.200-600mm) | UHP Grade (Dia.200-600mm) | |
Electrical Resistance≤ | Electrode | μΩ-m | 8.0 | 7.0 | 6.0 |
Nipple | 6.5 | 5.5 | 5.0 | ||
Bending Strength≥ | Electrode | Mpa | 11.0 | 12.0 | 12.0 |
Nipple | 14.0 | 14.0 | 16.0 | ||
Elastic Modulus≤ | Electrode | Gpa | 9.0 | 12.0 | 12.0 |
Nipple | 12.0 | 14.0 | 14.0 | ||
Bulk Density≥ | Electrode | g/cm3 | 1.58 | 1.66 | 1.68 |
Nipple | 1.70 | 1.72 | 1.73 | ||
C.T.E≤ | Electrode | ×10-6/°C | 2.7 | 2.5 | 1.4 |
Nipple | 2.5 | 2.2 | 1.3 | ||
Ash≤ | Electrode | % | 0.30 | 0.30 | 0.20 |
Nipple | |||||
Features
Electrodes in electric arc furnace and ladle refining furnace for steel making;
Electrodes in electric smelting furnace for producing industrial silicon, yellow phosphorus, corundum and so on.
Used in steelmaking industry

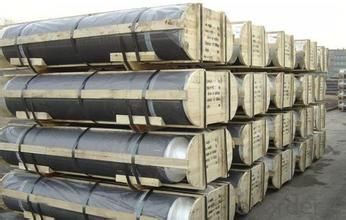

Pictures
FAQ
MOQ?
If for trial order,we accept1-5mt
Delivery time?
To make the shipment fast, we have large quantity in stock, normally delivery time will be 20 to 25 days when confirm the order
Trade or Manufacture?
We are manufacturer, our factory is located in Xuzhou,Jiangsu province.
Production Capacity?
30000 per year
