Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:10 m.t.
Supply Capability:100 m.t./month
Application: | Liners Of Industrial Furnace | Thickness: | 3mm | Width: | 1000 /900 / 300mm |
Length: | 1200 / 1000 / 900 / 600mm | Grade: | HAZ (High Aluminum Zirconium) | Chemical Composition: | Al2O3/Al2O3+SiO2/Al2O3+SiO2+ ZrO2/ZrO2 |
Ultimate Strength (≥ MPa): | 0.5 | Working Temperature: | 1000-1400℃ | Fiber Diameter: | 300 |
Thermal Conductivity: | ≤0.135 | Shrinkage (1800℉, 3h): | -3(24h) | Place of Origin: | (Mainland) |
Model Number: | Ceramic Fiber Board -001 | Brand Name: | Color: | White | |
Certificate: | SGS, BV, SASO, CE, ISO9001 | MOQ: | 50KG Ceramic Fiber Board | Sample: | Free |
Density (kg/m3): | 260 / 320 | Types: | Common; Standard; Pure; High Aluminum; Zircon | Item: | Ceramic Fiber Board |
Packaging Detail: | Plastic bags inside, carton box outside, pallet or according customers requirement. |
Delivery Detail: | 7-15 working days after received advance payment |

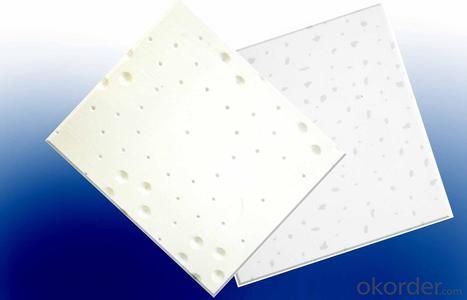

China Supplier Heat Resistant Fireproof Insulation Ceramic Fiber Board
Product Description
Ceramic Fiber Board Introduction
The Ceramic Fiber Board are made of different refractory fiber bulks with excellent chemical stability, organic and inorganic bond by wet method and vacuum forming processing which is apolitical to many kinds of industries .The fiber board with a characteristics of hard, flexible,excellent strength and resistance against corrosion.
Ceramic Fiber Board Specification
Type | Common (COM) | Standard (STD) | Pure (HP) | High Aluminum (HA) | Zirconium (HZ) |
Classification Temperature(℃) | ≤ 1100 | 1260 | 1260 | 1360 | 1430 |
Work Temperature(℃) | <1000 | 1050 | 1100 | 1200 | 1350 |
Color | White | Pure white | Pure white | Pure white | Pure white |
Density (kg/m3) | 260 / 320 | 260 / 320 | 260 / 320 | 260 / 320 | 260 / 320 |
Permanent Liner Shrinkage(%) (after 24 hours, density as 320/m3) | -4 | -3 | -3 | -3 | -3 |
1000℃ | 1000℃ | 1100℃ | 1200℃ | 1350℃ | |
Thermal conductivity by different temperature (w/m.k) (density as 128kg/m3) | 0.085 400℃ | 0.085 400℃ | 0.085 400℃ | 0.085 400℃ | 0.085 400℃ |
0.132 800℃ | 0.132 800℃ | 0.132 800℃ | 0.132 800℃ | 0.132 800℃ | |
0.180 1000℃ | 0.180 1000℃ | 0.180 1000℃ | 0.180 1000℃ | ||
Tensile Strength (Mpa) (Strength 10%) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Size | 600 * 400mm; 1000 * 600mm; 900 * 600mm; 1200 * 600mm; 1200 * 1000mm Thickness: 1~10cm (Other sizes and shapes on request.) |
Chemical Composition (%) | |||||
Type | Common | Standard | Pure | High Aluminum | Zirconium |
Al2O3 | 44 | 46 | 47--49 | 52-55 | 39-40 |
Al2O3 + SiO2 | 96 | 97 | 99 | 99 | - |
Al2O3 + SiO2 + Zro2 | - | - | - | - | 99 |
Zro2 | - | - | - | - | 15-17 |
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 |
Na2O + K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 |
Ceramic Fiber Board Feature
Non-combustible
Can withstand temperature up to 2300oF
Low density and low thermal conductivity
Shorter heat up and cool down time
Resilience and resistance to thermal shock
Flexible and easy to cut or install
Consist of acoustic properties
Contain no organic binder
Ceramic Fiber Board Application
Refractory back-up installation
Direct exposure to heat as furnace hot face lining
Expansion joint seal
Fire protection
General high temperature insulation
