Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:111 m.t
Supply Capability:10000 m.t/month
Quick Details

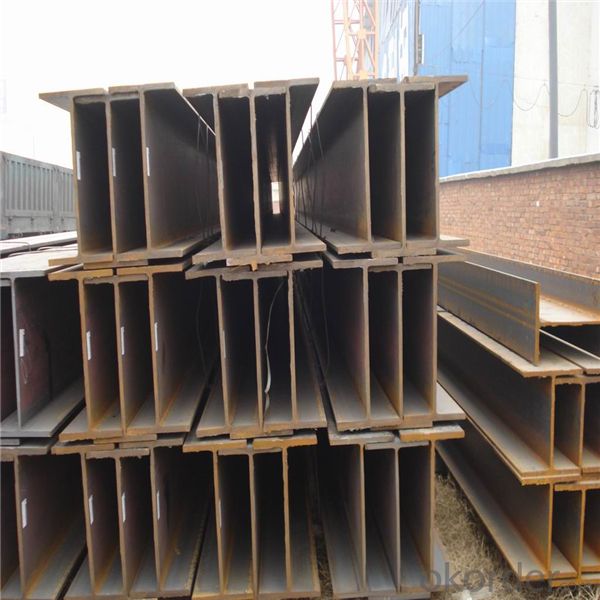

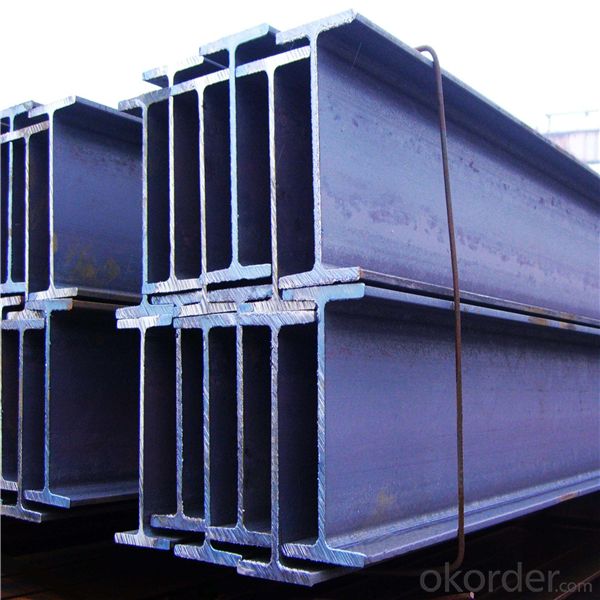

OKorder is offering H BEAM at great prices with worldwide shipping. Our supplier is a world-class manufacturer of steel, with our products utilized the world over. OKorder annually supplies products to African, South American and Asian markets. We provide quotations within 24 hours of receiving an inquiry and guarantee competitive prices.
Place of Origin: | Tianjin, China (Mainland) | Grade: | Q235,Q345,Q215,Q195,20# | Technique: | Hot Rolled |
Thickness: | 3.2-6.5mm | Application: | Structural Beam | Length: | 6-12m, generally 12m, or according to your order |
Standard: | JIS, GB/T11263-2010/JISG3192-2008/EN10163 | Flange Width: | 58,59,123mm | Flange Thickness: | 4.5-6mm |
Web Width: | 118,119, 120mm | Web Thickness: | 4.5-6mm | Brand Name: | Yuxing |
Model Number: | HT 125x60/125x125 | product name: | Structural carbon steel h beam profile H iron beam (IPE,UPE,HEA,HEB) | Steel Grade(Equal International) 1: | SM490,SS400,S185,St33,S235JR,St37-2 |
Steel Grade(Equal International) 2: | ASTM A106/A106M A,S235JO, St37-3,E295, St50-2 | Steel Grade(Equal International) 3: | St50-2,S355JRH, ASTM A106/A106M C | Technical Method of Surface Treatment: | Hot-dipped galvanized |
Not of Specification: | The specification below in the table is more accurate | application: | structural beam | shape: | H beam |
We can provide qualify goods,competitive price and speedy delivery.
Products Description
H Type Steel Size and Theoretical Weight | |||||
Size | Theoretical Weight | Size | Theoretical Weight | Size | Theoretical Weight |
|
|
|
|
|
|
(mm) | (kg/m) | (mm) | (kg/m) | (mm) | (kg/m) |
100*50*5*7 | 9.3 | 250*125*6*9 | 29 | 446*199*8*12 | 65.1 |
100*100*6*8 | 16.9 | 250*250*9*14 | 71.8 | 450*200*9*14 | 74.9 |
125*60*6*8 | 13.1 | 294*200*8*12 | 55.8 | 482*300*11*15 | 110.8 |
125*125*6.5*9 | 23.6 | 298*149*5.5*8 | 32 | 488*300*11*18 | 124.9 |
148*100*6*9 | 31.1 | 340*250*9*14 | 36.7 | 496*199*9*14 | 77.9 |
150*75*5*7 | 14 | 300*150*6.5*9 | 93 | 500*200*10*16 | 88.1 |
150*150*7*10 | 20.7 | 300*300*10*15 | 78.1 | 582*300*12*17 | 132.8 |
175*90*5*8 | 18 | 346*174*6*9 | 41.2 | 588*300*12*20 | 147 |
175*175*7.5*11 | 40.4 | 350*175*7*11 | 49.4 | 596*199*10*15 | 92.4 |
194*150*6*9 | 29.9 | 350*350*12*19 | 134.9 | 600*200*11*17 | 103.4 |
198*99*4.5*7 | 17.8 | 390*300*10*16 | 104.6 | 700*300*13*24 | 181.8 |
200*100*5.5*8 | 20.9 | 396*199*7*11 | 56.1 | 800*300*14*26 | 206.8 |
200*200*8*12 | 49.9 | 400*200*8*13 | 65.4 | 900*300*16*28 | 240.1 |
244*175*7*11 | 43.6 | 400*400*13*21 | 171.7 |
|
|
248*124*5*8 | 25.1 | 440*300*11*18 | 120.8 |
|
|
Length=6------12meters |
Packaging & Delivery
Packaging Details: | Packed with waterproof paper and steel banding. |
Delivery Detail: | 15-25 |
FAQ
1. How can I get some samples?
We are honored to offer you samples. New clients are expected to pay for the courier cost. The samples are free for you.
2 Do you have any certificates?
Our products passed inspection of SGS, FDA, and CE Quality is priority! Every worker keeps the QC from the very beginning to the very end, Quality control department especially responsible for quality checking in each process.
3 Can your factory print or emboss my logo on the goods?
Yes, we can print or emboss the logo on the goods or their packing box.
4 What information should I let you know if I want to get a quotation?
1) The specification of products (length x width x thickness);
2) The temper and alloy.
3) The final product you will use to be made
4 It will be better if you can show us the pictures or design sketch. Samples will be best for clarifying. If not, we will recommend relevant products with details for reference.We usually produce goods based on customers
Samples or based on customers’ picture, logo, sizes etc.
