Loading Port:Tianjin
Payment Terms:TT or LC
Min Order Qty:1 pc
Supply Capability:9999 pc/month
Quick Details
Standard or Nonstandard: | Standard | Structure: | Check | Pressure: | Medium Pressure |
Power: | Hydraulic | Material: | Casting | Temperature of Media: | 0℃~80℃ |
Media: | Water | Port Size: | 2" - 10" | Place of Origin: | China (Mainland) |
Model Number: | F7372 | Brand Name: | Eastragon | Application: | General |

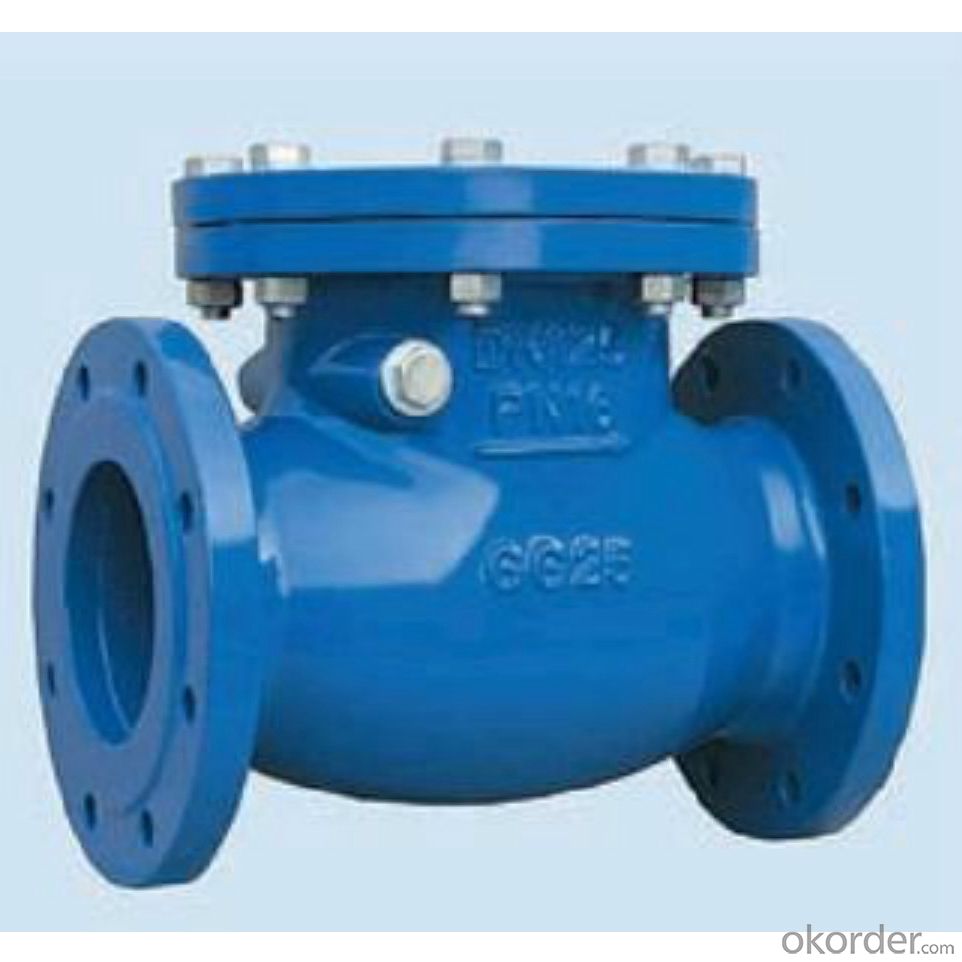

Product name: | JIS F7372 5K DN50 - DN250 Cast Iron Straight Type Swing Check Valves | Body material: | Grey Cast Iron | Working pressure: | 5Kgf/cm2 |
Size: | 15-250mm | Standard: | JIS F7372 | Medium: | Fresh Water, Sea Water, Air |
Type: | Straight Swing Check | Certificate: | CCS, ABS, BV |
Packaging & Delivery
Packaging Details: | plastic bag+ box+ carton+ pallet |
Delivery Detail: | 25-40 DAYS |
Technical Date | Material Specification | ||
Nominal Diameter | DN40-DN1000 | Valve Body | Cast Iron or Ductile Iron |
Nominal Pressure | PN10/PN16 | Valve Disc | Cast Iron or Ductile Iron or Stainless Steel |
Operation Temperature | -40°C~225°C | ||
Flange Driling Standard | EN 1902-2 PN10/16 | Seal Material | EPDM OR NBR |
Suface Treatment | Painting | Valve Spring | Stainless Steel |
Application | Portable water, water distribution service & feed lines, sewage disposol, irrigation, fire protection pipe systerm, etc. |
Specification
Standard: JIS F7372
Nominal Pressure:5K
Nominal Diameter:DN50-DN250
Suitable Medium: Oil,Water, Acid, vapor
Material Table of Cast Iron Check Valve
Name of Part | Material | |
1 | Body | FC200 |
2 | Bonnet | FC200 |
3 | Disc | BC6 |
4 | Valve Seat | BC6 |
5 | Gasket | NON-asbestos |
Dimensions of F7372 5K check valve
DN | d | L | D | C | NO. | h | t | H |
50 | 50 | 190 | 130 | 105 | 4 | 15 | 16 | 97 |
65 | 65 | 220 | 155 | 130 | 4 | 15 | 18 | 119 |
80 | 80 | 250 | 180 | 145 | 4 | 19 | 18 | 129 |
100 | 100 | 280 | 200 | 165 | 8 | 19 | 20 | 146 |
125 | 125 | 330 | 235 | 200 | 8 | 19 | 20 | 171 |
150 | 150 | 380 | 265 | 230 | 8 | 19 | 22 | 198 |
200 | 200 | 460 | 320 | 280 | 8 | 23 | 24 | 235 |
250 | 250 | 550 | 385 | 345 | 12 | 23 | 26 | 290 |
300 | 300 | 640 | 430 | 390 | 12 | 23 | 28 | 351 |
