Loading Port:Tianjin
Payment Terms:TT or LC
Min Order Qty:1 pc
Supply Capability:9999 pc/month
Quick Details
Standard or Nonstandard: | Standard | Structure: | Check | Pressure: | Medium Pressure, 1.0Mpa, 1.6Mpa,2.5Mpa,4.0mpa |
Power: | Manual | Material: | Casting, cast steel,WCB, stainless steel, ect. | Temperature of Media: | Normal Temperature |
Media: | Water | Port Size: | DN15-DN300 | Place of Origin: | Tianjin, China (Mainland) |
Model Number: | CMAX | Brand Name: | CMAX | Application: | General |

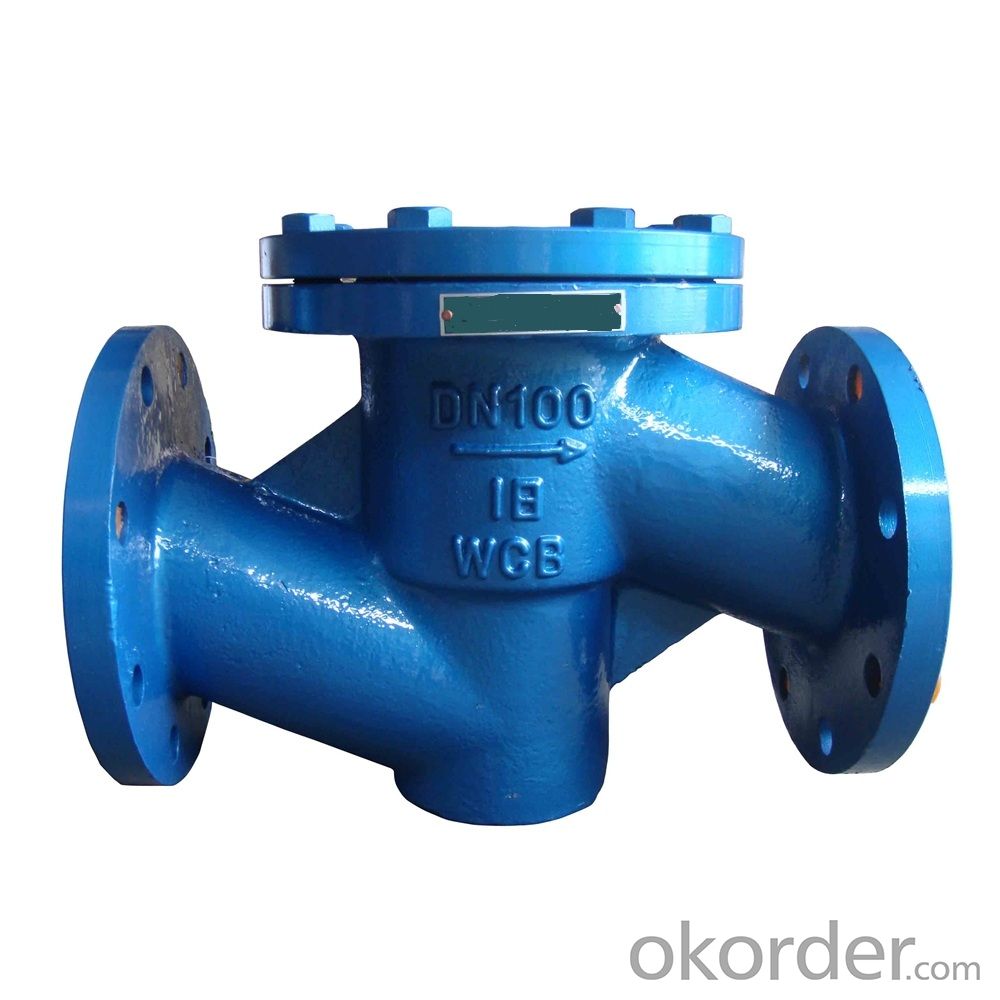

Name: | iron water lift check valve | Connection: | Flange | Temperature: | ≤425℃ |
Standard: | GB,BS,ANSI,JIS,DIN,etc | OEM: | Acceptable | Color: | Customized |
Certification: | ISO,CE | Warranty: | 12 month |
Packaging & Delivery
Packaging Details: | standars export wooden for Alibaba Bell DN100 adjustable cast iron water lift check valve |
Delivery Detail: | 20 days |
Technical Date | Material Specification | ||
Nominal Diameter | DN40-DN1000 | Valve Body | Cast Iron or Ductile Iron |
Nominal Pressure | PN10/PN16 | Valve Disc | Cast Iron or Ductile Iron or Stainless Steel |
Operation Temperature | -40°C~225°C | ||
Flange Driling Standard | EN 1902-2 PN10/16 | Seal Material | EPDM OR NBR |
Suface Treatment | Painting | Valve Spring | Stainless Steel |
Application | Portable water, water distribution service & feed lines, sewage disposol, irrigation, fire protection pipe systerm, etc. | ||
