Loading Port:China Main Port
Payment Terms:L/C,T/T
Min Order Qty:1 Roll roll
Supply Capability:10000 Rolls Per Month roll/month
General Introduction

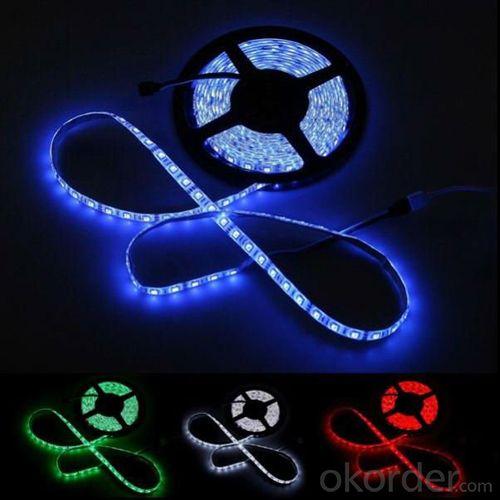

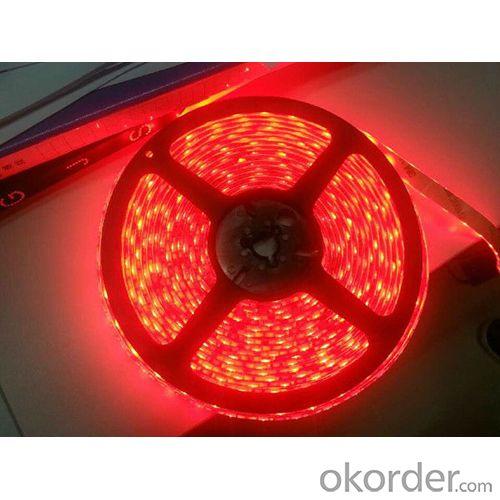

This is one of the most popular applications of LED light strips. It is very simple to install LED strip lights, as they can be cut every inch or so to fit your exact spacial requirements. There are two main variations of LED strip Flexible SMD or High Power 1W batons. Flexible LED Tape Flexible LED strip is usually supplied in 5M reels and basic dimensions.
Specifications
Item | Parameter |
Size | 5000*10*2.5mm (each roll) |
LED bead quantity | 60pcs/meter |
LED current | R20mA ,G20mA ,G20mA |
LED Color | colorful 7 |
tape length | 500mm or as buyer’s request |
Color temperature | 5500k~6400k-white,2750k~3250k-warm white 7250k~7750k-cool white |
LED Chip manufacturer | Cree/Epistar/Chinese brand or as buyer’s requests |
LED bead type | 3629,3528,3630,5050,3014 |
Strip Material and Processing type | 1. aluminum board SMD LED light bar 2. Soft PCB SMD strip, 3. Waterproof flexible soft SMD strip |
PCB width | |
LED illumination | 1600-2000Lux |
Technical requests
NO | Item | Units | Parameter range | ||
1 | working environment | °C | -25~60 | ||
2 | storage condition | °C | -25~60 | ||
3 | work frequency | Hz | -- | ||
4 | limited voltage | V | DC12±0.5V | ||
5 | Maximum current | A | 2A/Roll | ||
6 | Maximum output power | W | 72W/Roll | ||
7 | Grade of waterproof | IP65 | |||
Package
1x LED lamp spool
1x Anti-static bag
Installation
STEP 1: Familliarize yourself with LED Strips
STEP 2: Choose brightness and color of your strips
STEP 3: Calculate length of strips and power supply
Notice
Please read the specification first to make sure the using condition is fit.
Please shut off the switch before connect the product, then turn on.
