Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1 roll
Supply Capability:7000 roll/month
| Place of Origin: | Henan, China (Mainland) | Application: | Heat Insulation | Thickness: | 1~6mm |
| Width: | 610/1220mm | Length: | 15/20/30/50/60m | Grade: | HP (High Pure) |
| Chemical Composition: | AL2O3≥38 | Ultimate Strength (≥ MPa): | ≥0.3 | Working Temperature: | 1100-1150 |
| Fiber Diameter: | 3-5um | Thermal Conductivity: | 0.18 | Density (kg/m³ ): | 160 |
| Shrinkage (1800℉, 3h): | -3 | Brand Name: | AdTech | Model Number: | Ceramics-P |
| Fiber+MgO(%): | 52 | Slag Ball Conten: | 0.25mm | Flexural strength(Mpa): | 0.015 |
| Color: | white | OEM: | YES | Sample: | free |

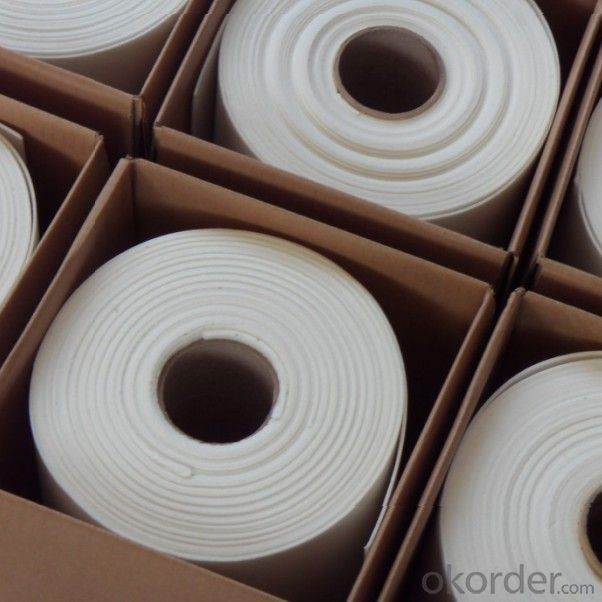

| Packaging Details: | carton packing,1roll/case, standard exporting package |
| Delivery Detail: | 20days after your down payment |

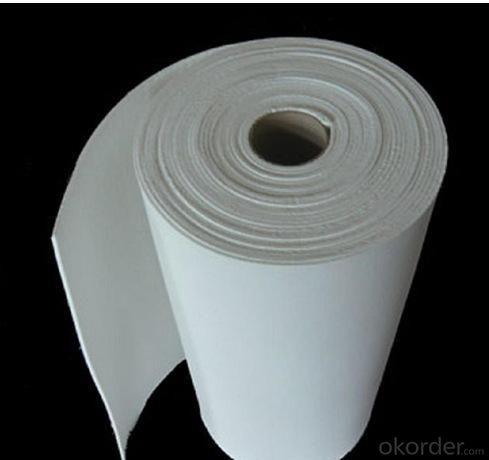

Sealing Material Ceramic Fiber Paper
Dimensions
60m×610(1220)mm×1mm
50m×610(1220)mm×2 mm
30m×610(1220)mm×3mm
20m×610(1220mm)×4mm
15m×610(1220)mm×5mm....
Usage
1.Ceramic Fiber Fireproof Paper is made of ceramic fiber.
2.Ceramic Fiber Fireproof Paper is used for sealing junction.
Benefits
1. Premium grade lightweight refractory material;
2. High element recovery rate(typically over 95%);
3. Good erosion resistance,low thermal conductivity,low heat capacity
4. Aluminum non-infiltration
4. Storage convenient,simple operation.
Component Analysis
Product Name | Ceramic fiber paper | |||
Sample label | 200*100*2mm(I) | Report No. | 01109 | |
Test items (units) | Standard value | Test value | Conclusion | |
AL2O3 (%) | ≥38 | 29.8 |
Line
| |
Sio2 (%) | ≤9 | 8.8 | ||
Fe2O3 (%) | ≤1.20 | 0.7 | ||
Fiber+MgO(%) | ≤55 | 52 | ||
Slag ball content ≥0.21mm | ≥0.21mm | 0.25 | ||
Flexural strength (Mpa) | ≥0.01 | 0.015 | ||
Thermal conductivity W / (n.k) |
≤0.2 |
0.18 | ||
Remarks | Inspection reference: GB/T16400-2003 | |||
