Loading Port:Qingdao
Payment Terms:TT or LC
Min Order Qty:100 kg
Supply Capability:10000 kg/month
| Place of Origin: | (Mainland) | Application: | Refractory | Thickness: | 1-10mm |
| Width: | Customerized | Length: | Customerized | Grade: | HZ (High Zirconium) |
| Chemical Composition: | High Aluminum | Ultimate Strength (≥ MPa): | ≥0.3 | Working Temperature: | 1260C |
| Fiber Diameter: | Customerize | Thermal Conductivity: | 500c | Density (kg/m³ ): | 128 |
| Shrinkage (1800℉, 3h): | -3 | Brand Name: | Model Number: | High Pure |

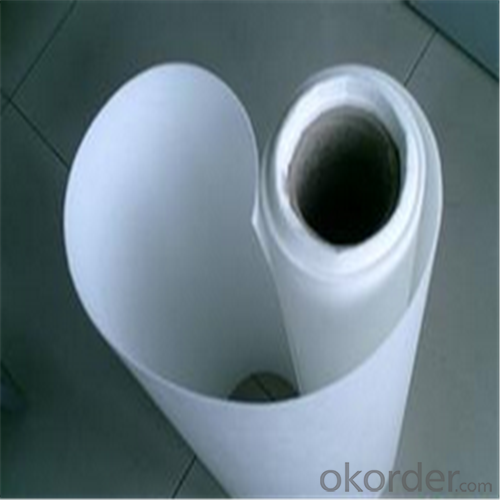

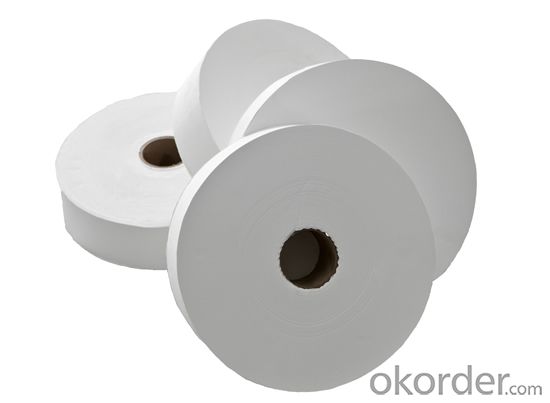

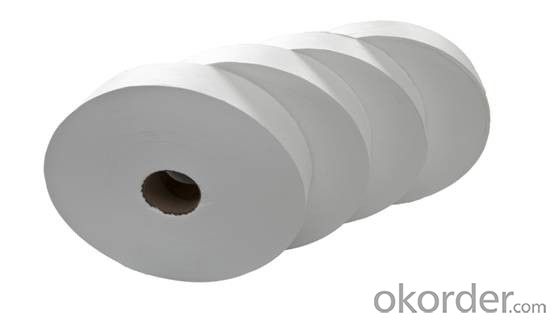

Wholesale High Pure Insulation Ceramic Fiber Paper
Product Description
Ceramic Fiber Paper Introduction
Ceramic Fiber Paper takes ceramic fiber as main raw material, using wet paper molding process to be made, with the advantage of good resistance to high temperature, low thermal conductivity, corrosion resistance. Products are divided into: common, high pure, high aluminum, zirconium type aluminum silicate ceramic fiber, which been made well by series processing of needling, cutting and rolling.
Ceramic Fiber Paper Specification
Types | Standard | High Pure | High Aluminum | Zircon | |||
Classification Temperature | 1050 | 1260B | 1260HB | 1360 | 1430 | ||
Shrinkage on Heating (%) | 800°C×24h≤-3 | 1000°C×24h≤-3 | 1280°C×24h≤-3 | 1400°C×24h≤-3 | |||
Organic Content | ≤10 | ||||||
Thermal Conductivity by Mean Temp. (W/m.k.) (250kg/m3) | 200 | 0.055~0.065 | 0.060~0.070 | ||||
400 | 0.110~0.0120 | 0.105~0.125 | |||||
600 | 0.160~0.170 | 0.170~0.180 | |||||
Density (kg/m3) | 180~200 | ||||||
Normal Size (mm) | 60000x610/1220x1 | 30000x610/1220x2 | 20000x610/1220x3 | ||||
15000x610/1220x4 | 12000x610x1220x5 | 10000x610/1220x6 | |||||
Other size on your request | |||||||
Ceramic Fiber Paper Feature
Good handling strength
Low thermal conductivity and heat storage
Excellent thermal shock resistance
Easy machining
Low weight; Elastic; Flexible
Excellent hydrophobic property
Smooth surface and anti-tearing
Ceramic Fiber Paper Application
Insulation of high-temperature pipe and instruments
Sealing for valve and flange
Covering Material for fireproofing cable, cloth, high temperature expanding material
Insulation off fireproofing refrigeration engineering in transportation, construction,petrochemical industry, electric power industry.
Special high temperature equipment (high-temperature resistance furnace, induction furnace, Ladle lid, glass glass melting furnace, kiln car, high-temperature radiant tube, high-temperature vessel, hot-blast furnace, burner) in Metallurgy, scientific research, spaceflight and nuclear reaction industry.
Packaging & Shipping
Ceramic Fiber Paper Trade
Packaging Way: Plastic bags inside, carton box outside, pallet or according customers requirement.
Carton Size: 32*32*620/1220cm
Weight Rate: 200KG/cm3
Shipping: We will shipping and delivery goods timely, quanlity and quantity guaranteed, and also in accordance with the contract and customer's requirment completely !
Payment Term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping, or L/C, or Western Uninon for small amount.
Lead Time: 7-15 working days after received advance payment
Sample Apolicy: Sample are always available for each modle
| Packaging Details: | Plastic bags inside, carton box outside, pallet or according customers requirement. |
| Delivery Detail: | 2 Weeks |
FAQ:
1. Which products do you have?
We have all kinds of refractory brick, castable, mortar, cement, ceramic fiber products, etc.
Or you could browse our products to choose what you need.
2. Can you give me a general idea of the specification and technical data of your products?
Yes, catalog is on your request.
3. Can you give me a brief introduction of the application of your products?
We are mainly specializing in the refractory materials in iron and steel, cement, glass, ceramics, petrochemical, electric power Industry, etc.
4. If I need your offer, what information do you need?
In order to choose suitable products, it will be appreciated to provide us the information, such us specification, technical data, order quantity, products application etc.
If any question, please contact us freely.
