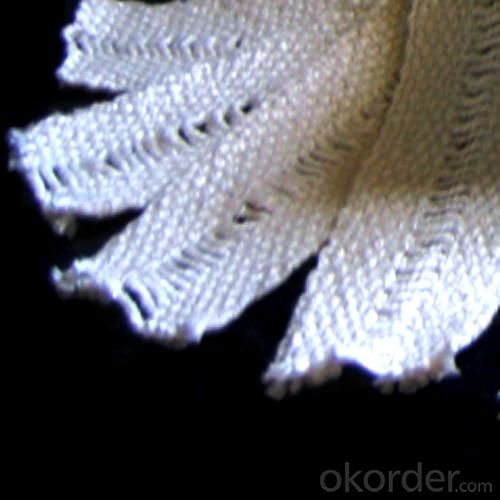

General Information of Ceramic Fiber Ladder Tape
Ceramic fiber ladder tape is manufactured from high quality alumina-silica fiber yarn. With glass filament or #304 or 310 stainless steel wire inserted, the ceramic fiber ladder tape still keep high strength at elevated temperature. The ceramic fiber ladder tape could be used as protection against cable and fuel line protection, high temperature, high temperature electrical insulation, gasket and seal, fireproof wrap, etc.
Ceramic fiber textiles contain carrier fiber to facilitate the carding process. The textiles normally contain 16 to 20% rayon fiber which will burn out at high temperature, but has no effect on the properties of the products
Feature of Ceramic Fiber Ladder Tape
Low heat storage
Excellent chemical stability
Excellent thermal shock resistance
Excellent sound absorptio
Low thermal conductivity
Application of Ceramic Fiber Ladder Tape
Protection against high temperature
High temperature electrical insulation
Cable and fuel line protection
Fireproof wrap, gasket and seal, etc
Technical Data of Ceramic Fiber Ladder Tape
|
|
CERAMIC FIBER TEXTILES | |
|
|
Classification Temperature (℃) | 1260 |
|
|
Melting Point (℃) | 1760 |
|
|
Temperature Limit of Insert | Glass 650℃ |
Stainless Steel 1100℃ | |
|
|
Color | White |
|
|
Fiber Diameter (µm) | 3-4 |
|
|
Loss on Ignition (%) | 18 |
|
|
Thermal Conductivity(W/m.k) 1000℃ | <0.18 |
|
|
Linear Shrinkage 24hrs (%) 1100℃ | 3 |
|
|
Chemical Composition (%) |
|
|
|
Al2O3 | 47-49 |
|
|
Al2O3+ SiO2 | 99 |
|
|
Fe2O3 | 0.2 |
|
|
K2O+Na2O | 0.2 |
