Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:10 kg
Supply Capability:1000000 kg/month
ceramic fiber paper is made by ceramic fiber bulk, adding little binder. The binder will be burned out during using process, so it will not infect its performance.
As we have ourself raw material base that can control our fire resistance ceramic fiber paper quality,
ceramic fiber paper’s spot content is less than similar products in the market.
It can show the better insulation and heat resistance characteristics, and higher tensile strength.
| ristic | low thermal capacity and thermal conductivity | |||
| Excellent electrical insulation properties, machining performance. | ||||
| High strength & flexibility, tear resistance | ||||
| Low shot content | ||||
| application | industrial insulation, sealing, anti-corrosion material | |||
| Insulation material for instruments and heating element | ||||
| Insulation material for automobile and aerospace industry | ||||
| Expansion joints filling material | ||||
| Isolation for construction material, metallurgy and glass industries. | ||||
| Molten metal sealing gasket | ||||
| Fireproof material | ||||
| Substitute for glass fiber and asbestos fiber | ||||
| fireproof ceramic fiber paper | ||||
| Fireproof ceramic fiber paper | 1260 Stardard | 1400 high alumina | 1450 Zriconia | |
| Max temperature(℃) | 1260 | 1400 | 1450 | |
| Working Temperature( ℃) | 1050℃ | 1200℃ | 1350℃ | |
| (℉) | 1922℉ | 2192℉ | 2462℉ | |
| Density(kg/m3) | 200±10 | |||
| Tensile strength(Mpa) | ≥0.4 | ≥0.4 | ≥0.7 | |
| chemical composition | AL2O3 | 45 | 52-55 | 39-40 |
| AL2O3+SiO2 | 97 | 99 | —— | |
| ZrO2(%) | _ | _ | 15-17 | |
| Fe2O3(%) | 1.0 | 0.2 | 0.2 | |
| Na2O+K2O | 0.5 | 0.2 | 0.2 | |
| fireproof ceramic fiber paper size | ||||
| specification | 40000*610*6; 40000*610*1 20000*610*2 15000*610*3 10000*610*5; 10000*610*6 Min Width: 5cm | |||
Application of Ceramic Fiber Paper High temperature gasket Boiler door seal Refractory expansion joint Furnace backup insulation Lining for aluminum casting molds Thermal and electrical insulation for heaters Acoustic and thermal insulation for automobile mufflers Heat insulation for exhaust tubes and pipes Electrical switch box fire protection

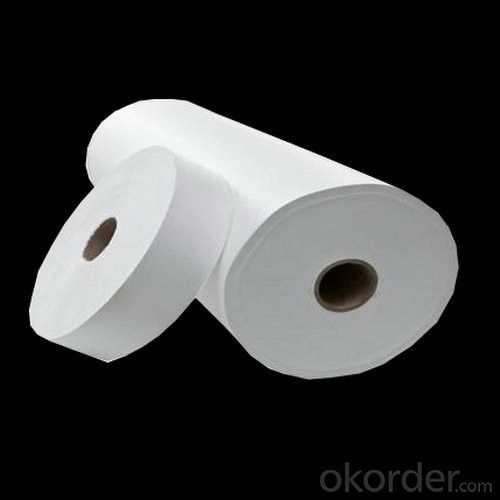

Image of Ceramic Fiber Paper
FAQ Q3: What other products does OKorder offer? A3: We offer a full range of refractory bricks, monolithic material, ceramic fiber products, and more. Q4: If I need your offer, what information do you need? A4: In order to choose suitable products, it will be appreciated to provide us the information, such us specification, technical data, order quantity, products application etc. If any question, please contact us freely. | ||||
