Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:1 unit unit
Supply Capability:1000 Per Month unit/month

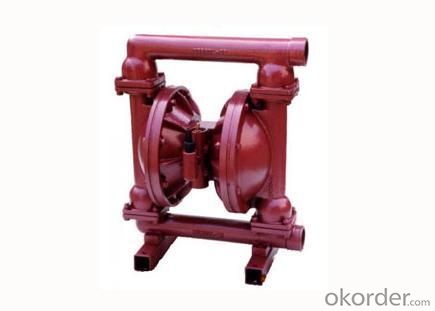

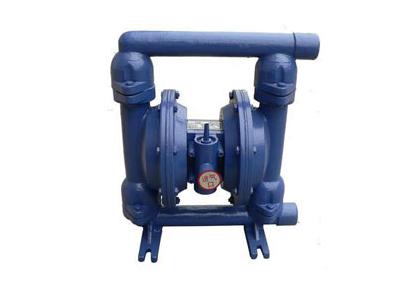

Details for Cast Iron Pneumatic Diaphram Pump
1, Package and delivery of Powder Diaphram Pump
1) Packed with standard exporting wooden case, requested package will be acceptable.
2) Delivery date will be within 30 days after receiving the prepayment.
2, Technical specification of Cast Iron Pneumatic Diaphram Pump
|
Working Principle: |
Double Diaphragms |
|
Main applications: |
Oil, Water, Chemical, Foodstuff, etc. |
|
Driver: |
Air operated (Penumatic) |
|
Power Specs: |
380/415 V 3phase; 50hz/60hz etc. |
|
Max. permissible fluid temperature: |
150°C |
|
Type of connection: |
Flange, Thread, Quick Coupled. |
|
Installation position: |
Connect to compressor |
|
Casing/Inner parts material: |
C.I, S.S, PP, Aluminium /PP, PTFE, PVDF. |
|
Shaft seal type: |
O-rings in pump |
|
Free passage: |
3mm-10mm |
|
Maximum viscosity: |
5X104CST |
|
Maximum drive rating: |
0.2-0.7mpa (2-7bar) |
|
Maximum caliber: |
4 inch (100mm) |
|
Maximum dischrage head: |
0.5mpa (5bar) |
|
Flow rate range: |
0.8-40 m³/h (13.3-667l/m) |
3, Model details about Cast Iron Pneumatic Diaphram Pump
|
|
PDP-8 |
PDP-10/15 |
PDP-20/25 |
PDP-25A |
PDP-32/40 |
PDP-50/65 |
PDP-80/100 |
PDP-125 |
|
Caliber ( mm) |
8 |
10/15 |
20/25 |
25 |
32/40 |
50/65 |
80/100 |
125 |
|
Fluid flow ( m³/h) |
0~1 |
0~1 |
0~3 |
0~7 |
0~9 |
0~21 |
0~34 |
0~60 |
|
Pressure ( bar) |
7 |
7 |
7 |
8.4 |
8.4 |
8.4 |
8.4 |
8.4 |
|
Head ( m) |
50 |
50 |
70 |
70 |
70 |
70 |
70 |
70 |
|
MAX. air consumption ( scfm) |
9.0 |
9.0 |
28 |
60 |
60 |
125 |
175 |
325 |
4, The advantages about our Cast Iron Pneumatic Diaphram Pump
1) Four bolts connection with very round ball, well seal and good dry suction. The actual dry suction can reach to 4~7m.
2) High roundness valve ball for use the ball mill machine.
3) Three section manifold, Flexible installation and even can simultaneously convey two different liquids.
4) Longer diaphragm life. Diaphragm material from Dopont, Exxon.
5) Pilot type air valve, low maintenance, low air consumption, so the using cost is low.
6) Wetted body: PPH, PVDF, SS304, SS316, Aluminum etc.
7) Diaphragm: PTFE, Hytrel, Santoprene, Viton etc.
