Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:32MT watt
Supply Capability:10000MT/Year watt/month
Product Introduction:
Carbon electrodes are used in submerged arc furnace applications. Submerged arc furnace operations vary slightly from other electric arc furnace applications. It will bring you more economic benefits to choose and use carbon electrode in smelting of silicon, nickel iron, and yellow phosphorus. The carbon electrode has good strength and is hard to be broken, can reduce the oxidation. Using carbon electrode to replace the polluting carbon electrode paste could prompt production volume, improve the alloy quality and lower the power consumption. The main practice standard specification complies to the industrial standard of China: YB 4088-92 ,YB 4089-92 ,YB 4090-92 ,IEC—1998
Specification:
Item | Quality Index | ||
φ500—φ700 | φ750—φ950 | φ1020—φ1400 | |
Electrical resistance (μΩ.m)Max | ≤45 | ≤45 | ≤47 |
Bulk Density (g/cm3)Min | 1.52~1.62 | 1.52~1.62 | 1.52~1.62 |
Flexural Strength (MPa)Min | 4.0~7.5 | 4.0~7.5 | 3.5~7.0 |
Compressive Strength (MPa)Min | ≥18.0 | ≥18.0 | ≥16.0 |
C.T.E (10-6/°C) Max | 3.8~5.0 | 3.6~4.8 | 3.6~4.8 |
ASH(%) Max | 1.0~2.5 | 1.0~2.5 | 1.0~2.5 |

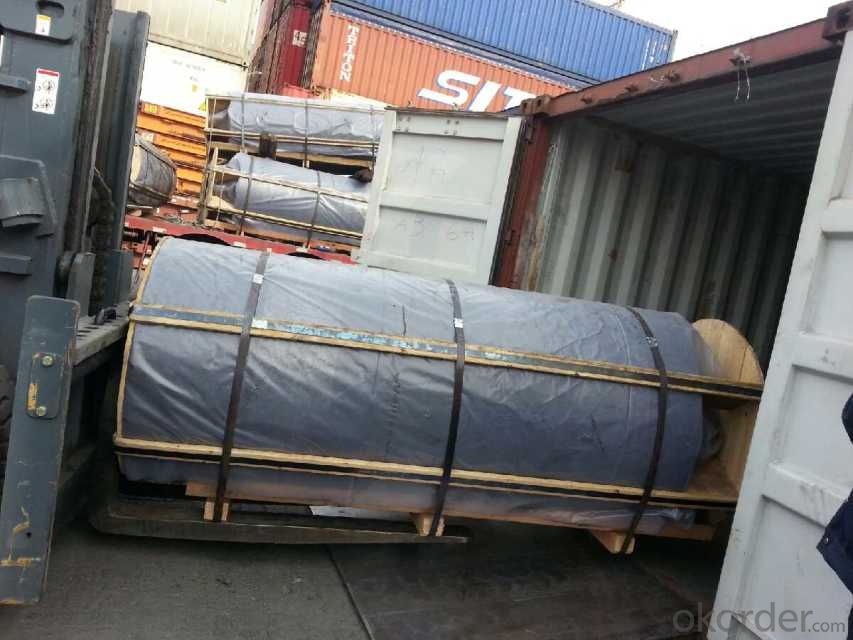

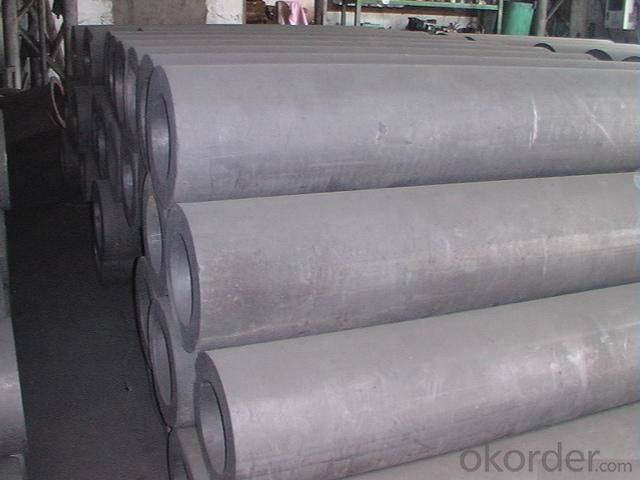

Picture:
We can supply below furnace charges, please feel free to contact us if you areinterested in any of any of them:
Coke (Metallurgical, foundry, gas)
Calcined Anthracite with fixed carbon from 90% to 95%
Calcined Petroleum Coke
Graphite petroleum coke
Amorphous Graphite
Carbon Electrode Paste
Carbon Electrode
