Product Description:

INTRODUCTION

Carbon Electrode Paste is a self-baking electrode used in submerged arc furnaces for delivering power to the charge mix.

Electrode Paste is added to the top of the electrode column in either cylindrical or briquette form. As the paste moves down the electrode column the temperature increase causes the paste to melt and subsequently bake forming a block of electrically conductive carbon. Electrode Paste is essentially a mix of Electrically Calcined Anthracite (ECA) or Calcined Petroleum Coke (CPC) with Coal Tar Pitch.

Graphite/Carbon Electrode Paste Specification:

Ash.( % )                                                  4.0 max           5.0 max        6.0 max      7.0 max      9.0 max1            1.0 max

V.M （%）                                            12.0-15.5       12.0-15.5       12.0-15.5    9.5-13.5       11.5-15.5         11.5-15.5

Compress Strength.                            18.0 min                 17 min        15.7 min    19.6 min    19.6 min             19.6 min

Specific Resistance                             65  max                 68 max         75 max    80 max             90 max          90 max

Bulk Density                                         1.38 min                1.38 min1           .38 min    1.38 min   1.38 min        1.38 min

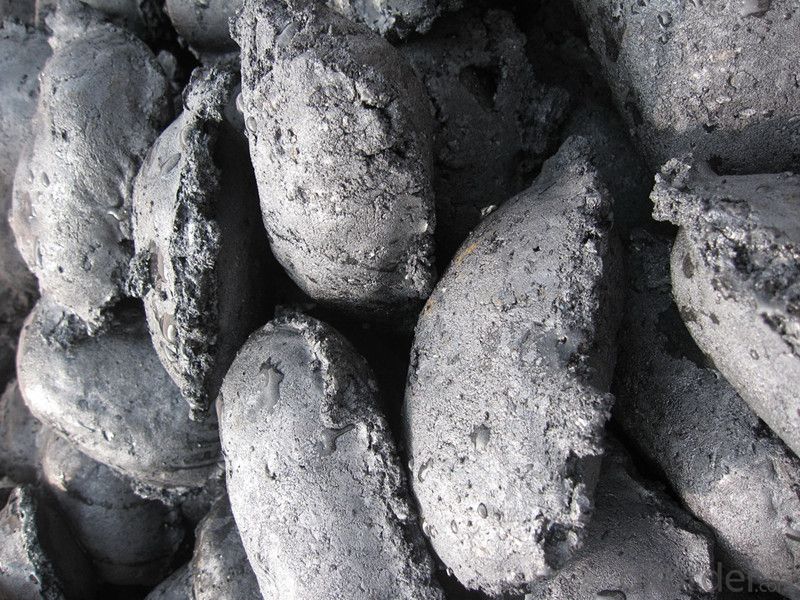

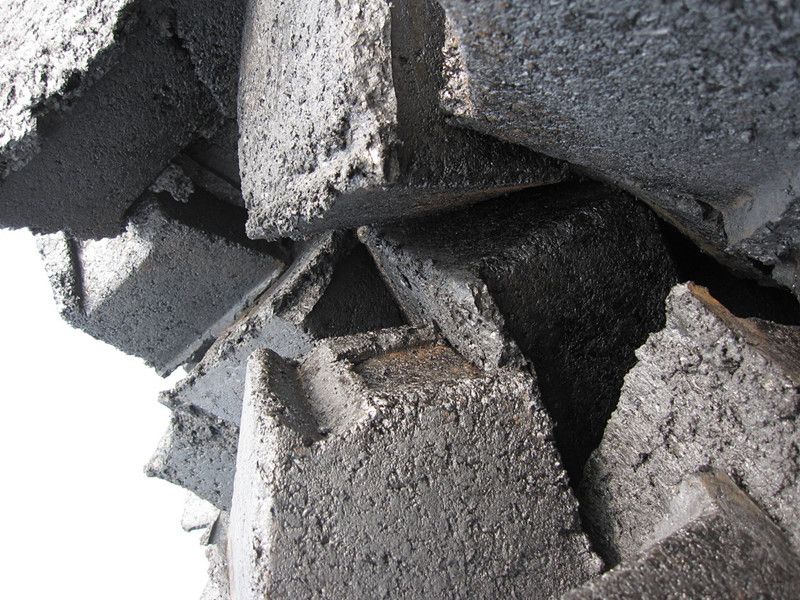

Picture:

PACKAGE

In mt jumbo bag or as buyer's request
