Car Lift Manufature Automotive Four Post Car Lift/High Quality

Product Description:

Main Features
1. Single hydraulic cylinder drive.
2. Manual release from one side.
3. Mechanical safety latch in four columns' back
4. Adjustable distance between two platforms can be well applicable to vehicles of different width.
5. Automatic stop in the highest position.
6. Anti-surge valve that equipped in hydraulic joint ensures no danger in case of oil hose broken.
7. Relief valve protect against overloading.
8. Valid protection system for steel cable broken.
9. Front and rear positioning wheel stop.
10. Suitable for four-wheel alignment.
11. "UP" "DOWN" "EMERGENCY " button on control panel,simply operation.
12. 24V low-voltage safe control keeps customers away from enexpected injury.
13. CE Certificated.

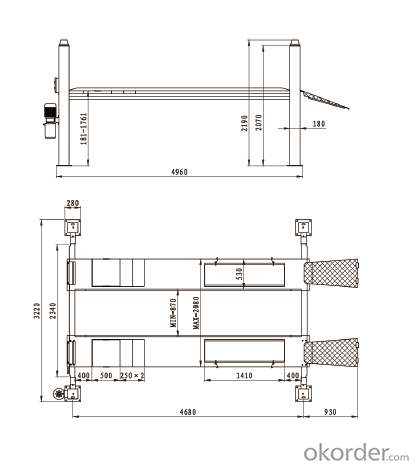

Specification
Item No. 4CMFL3.5
Lifting capacity 3500
Lifting height 1800mm
Minimum height 220mm
Overall height 2240mm
Overall length 5870mm
Width between columns 2340mm
Overall width 3220mm
Runway width 530 　 　
Lifting time ≤60s
Lowering time ＞30s
Motor 220V/380V 50Hz/60Hz 1Ph/3Ph
