Butterfly Valve Cheap Price Water from China Manufacturers

Product Description:

1. Manual Wafer Butterfly Valve Description：

Standard Structure:  Gate Pressure:  Medium Pressure

Power:  Manual Material:  Casting Temperature of Media:  Medium Temperature

Media:  Water Port Size:  DN40mm-DN300 Place of Origin:  China (Mainland)

Model Number:  CMAX-GF4 resilient gate valves:  resilient seat flange

2.Main Features of the Manual Wafer Butterfly Valve

Packaging & DeliveryPackaging Detail: air plastic bag inside/wooden box outside

Delivery Detail: 15-60days

SpecificationsDIN3352 F4 resilient seat flange gate valves

1.size:DN40-DN300

2.medium:water

3.standard:DIN

4.certificate:ISO9001 CE

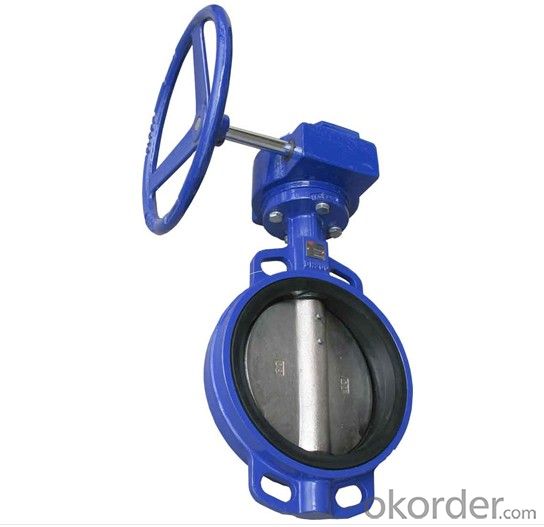

3. Manual Wafer Butterfly Valve Images：

4.Manual Wafer Butterfly Valve  Specification：

1)Size: DN40-DN1400
2)Material:body-CI/DI/WCB/SS
disc:DI/CF8/CF8M/C95400
3)Professional Maufacturer for more than 10 years

PRESENTATION:

1) Sizes: DN40mm-DN1400mm

2) Materials:
a) Body: CI(cast iron ,GG25 )/ DI (ductile iron ,GGG40)

b) Disc:  DI / CF8 / CF8M / C95400
c) Seat:  EPDM / NBR / TEFLON / VITON

5.FAQ

 1. What is manual wafer butterfly valve?

A: Wafer style is the more common of the two and is less expensive than the lug style. The wafer style butterfly valve is just about the standard. It ís so common that no one even bothers to use the word "wafer" when ordering a butterfly valve. It is taken for granted that if a butterfly valve is ordered, a wafer style will be received.

 2. How about the Installation of the Wafer Style Butterfly Valve?
A: Butterfly valves are installed by inserting the valve between two flanges using bolts or studs and nuts to hold it all together. This type of installation, of course, makes it impossible to disconnect just one side of the piping system from the valve. That benefit is received using the lug style valve.

 3. What is the working principle of manual wafer butterfly valve?

 A: A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.
