bushing for leaf spring:
1,high quality low carbon steel back to substrate.
2,the surface of sintered bronze alloy Pb-Sn.

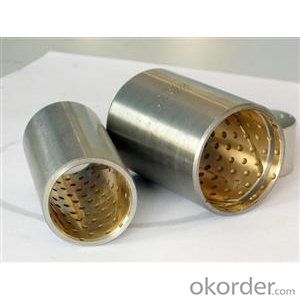

Bushing for leaf spring Bimetal bearing bush Clutch Bimetallic bushing
Introduction:
1. Bimetal bearing bush has a combination of high strength, load-bearing capacity, and the advantages of good wear resistance. Particularly suited to medium-speed and low-speed high-contained set and so on.
2. Process through special means, at the friction surface can be processed into a variety of oil and oil hole and the hole in order to adapt to different working conditions lubrication use.
3. Products widely used in automotive engine, chassis, motorcycle clutch, gear pump rub board and lifting equipment and other fields.
| Static | 250N/mm2 | |
Max.Load | Dynamic | 140N/mm2 |
| Oscillating | 60N/mm2 | |
| PV | Dry | 3.6N/mm2.m/s |
| PV limit | Oil | 50N/mm2.m/s |
| Temp.limit | -195+280 | |
| Friction Coeff. | 0.030.20μ | |
| Dry | 2m/s | |
| Speep limit | Oil | 5m/s |
| Thermal conductivity | 2.41Kcal/M.br.c | |
| Coeff. Of linear expansion | 27×10-6per | |
