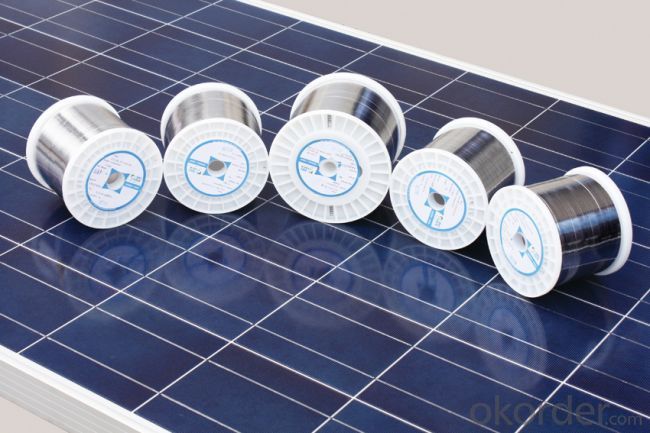

Bus Ribbon -Manual Welding,0.16*4

Product Description:

Structure

We produce custom engineered solar tabbing and  bus wire helping to attain the highest efficiencies possible for each unique module design.   Our Research and Development team can assist you with your needs evaluation and our world-wide manufacturing facilities are strategically located for large volume production.

Feature

1,Good solderability
2,Good straightness
3,Low yield strength
4,Low Melti

The Flux should be compounded and processed in such a manner as to be uniform in quality and should be free from deleterious material and other details that will after life serviceability or appearance.

Cold Rolling Mills for manufacturing Photovoltaic (PV) Ribbon:
Cold Rolling Mills for manufacturing Photovoltaic Ribbon
This machine is for making Bare flat copper conductors which is using PV Ribbon Wire , Tinned plated flat copper conductors which is using FFC or materials and it was designed to make the best quality products with high productivity as well as easy to control.
Machine capacity
Tinned plated flat copper conductors which is using FFC

Images

Specifications

1) welding ribbon for big power solar panel:

   Copper base: electrician Park copper (TR line) rolling or T2 copper tape slitting
   Copper substrate resistivity: ρ ≤ 0.0172Ωmm2 / m

   Solder Composition: 62% Sn36% Pb2% Ag; 60% Sn40% Pb; 96.5% Sn3.5% Ag (Bi optional).
   The thickness of the tin layer: 10μm-40μm, sided uniform
   Thickness deviation: ≤ 0.008
   Width deviation: the rolled products ≤ 0.1mm; slitting Commodities ≤ 0.005mm.
   Elongation: the soft state ≥ 20%; semi-soft state ≥ 15%.
   Specifications: width 1.5mm-2.5mm; thickness 0.08mm-0.25mm. (here is 1.5*0.2 mm)

   Packaging: cardboard, " I shape" wheel, box.

   Suitable for DIY solar cell and solar panel, also suitable for machine automatic welding middle without decapitation; crop for customers Length carton packaging.

2) welding ribbon for epoxy solar panel etc. mini solar panel:
   Copper base: electrician the Park copper (TR line) rolling
   Copper substrate resistivity: ρ ≤ 0.0172Ωmm2 / m

   Solder Composition: 98% Sn2% Ag (Bi optional)
   The thickness of the tin layer: 10μm-20μm, sided uniform.
   Thickness deviation: ≤ 0.008
   Width deviation: rolled products ≤ 0.1mm
   Elongation: ≥ 10%
   Specifications: width 0.6mm-1.2mm; thickness 0.08mm-0.13mm.
   Packaging: cardboard, " I shape" wheel, box.

3) Bus-bar for big power solar panel:

  Copper base: T2 copper tape slitting
  Copper substrate resistivity: ρ ≤ 0.0172Ωmm2 / m
  Solder Composition: 62% Sn36% Pb2% Ag; 60% Sn40% Pb; 96.5% Sn3.5% Ag (Bi optional).
  The thickness of the tin layer: 10μm-40μm, sided uniform
  Thickness deviation: ≤ 0.008
  Width deviation: ≤ 0.005mm.
  Elongation: the soft state ≥ 20%; semi-soft state ≥ 15%.
  Product specifications: width 4mm, 5 mm, 6mm; thickness 0.15mm-0.3mm.

FAQ

Q:How to guarantee the quality of the products？

A:We have established the international advanced quality management system，every link from raw material to final product we have strict quality test；We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance.

Q:Can we visit your factory?

A:Surely, I will arrange the trip basing on your business schedule.

Q:Which payment terms can you accept?

A:T/T,L/C,Moneygram,Paypal are available for us.
