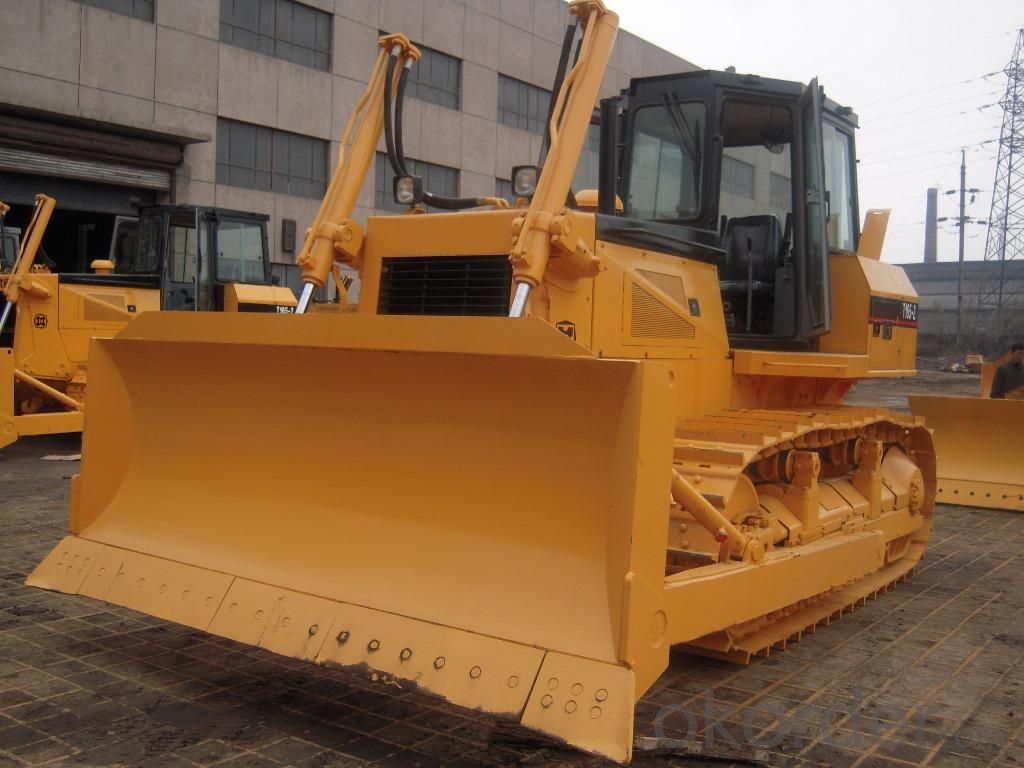

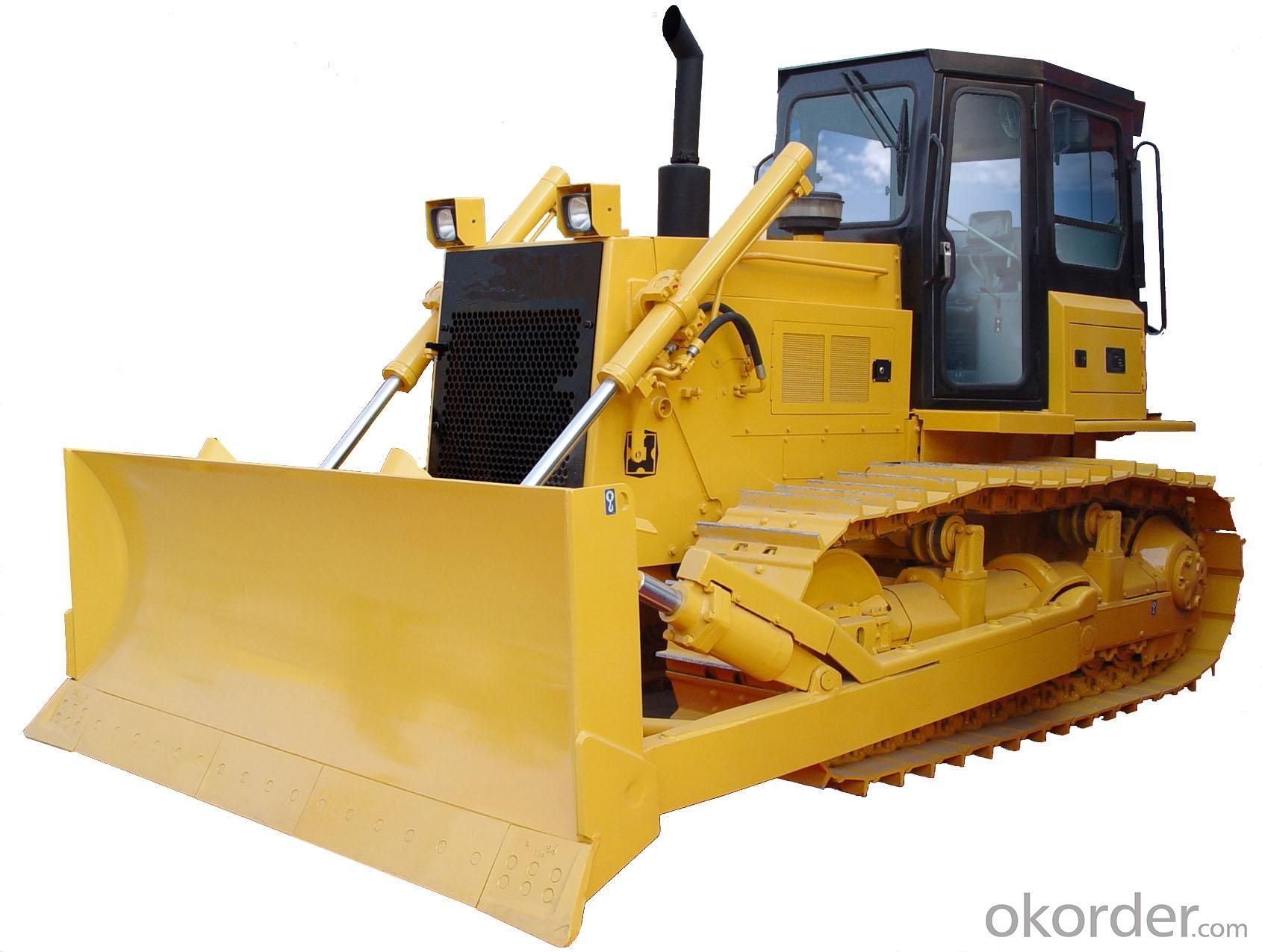

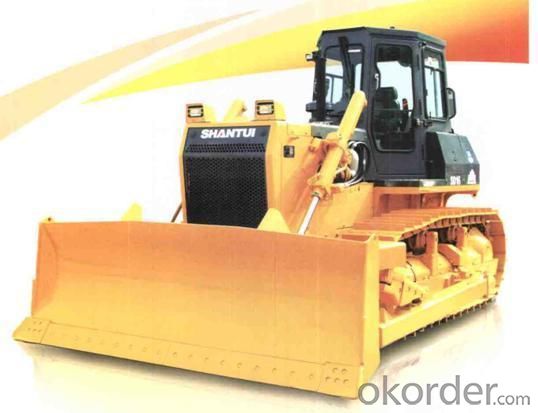

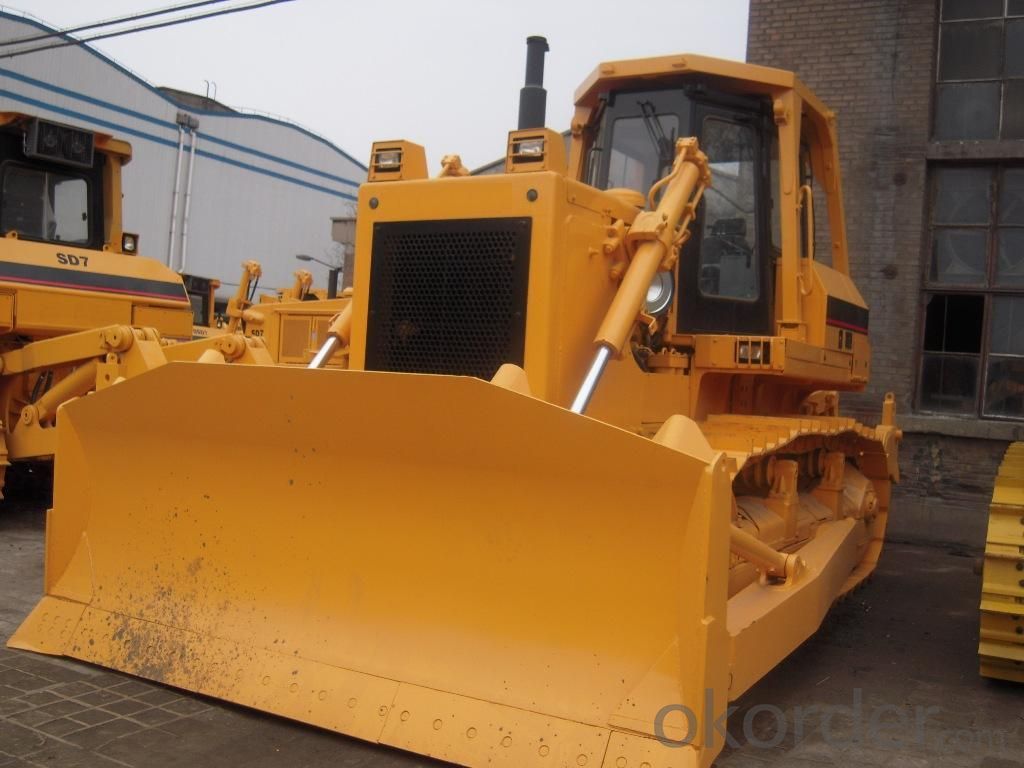

Product Name: Bulldozer SD16
1. Product Feature of Bulldozer SD16
The SD16 is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine.
2. Specification of Bulldzoer SD16
|
ITEM |
UNIT |
SD16 |
|
L×W×H (Ripper not included) |
MM |
5140×3388×3032 |
|
Operating weight (Ripper not included) |
T |
17 |
|
Engine |
- |
Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
|
Rated power |
KW/RPM |
120/1850 |
|
Gradeability |
° |
30 |
|
Blade type |
- |
Straight tilt blade U blade Angle blade |
|
Blade width |
MM |
Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
|
Dozing capacity |
M3 |
Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
|
Ma× drop below ground of blade |
MM |
540 |
|
Lift height of blade |
MM |
1095 |
|
Ripper type |
- |
Three-shank ripper |
|
Ripping depth of ripper |
MM |
572 |
|
Lifting height of ripper |
MM |
592 |
|
Number of carriers (each side) |
- |
2 |
|
Number of track rollers (each side) |
- |
6 |
|
Number of track shoes (each side) |
- |
37 |
|
Width of track shoe |
MM |
510 |
|
Track gauge |
MM |
1880 |
|
Ground length and ground pressure |
MM/MPA |
2430-0.067 |
|
Pitch |
MM |
203.2 |
|
Forward speed |
KM/H |
0–3.29 |
|
0–5.82 | ||
|
0–9.63 | ||
|
Reverse speed |
KM/H |
0–4.28 |
|
0–7.59 | ||
|
0–12.53 |
3. Optional Parts of Bulldozer SD16
Rops-Fobs airconditioning cabin, single shank rear ripper, three shank rear ripper, other blades or forest protection cabin as requested.
4. Delivery and Package of Bulldozer SD16
This model could be shipped by Bulk Vessel or Roll-on roll-off vessel, even some times could be urgently put on flat rack.
5. Primary Competitive Advantages
1) Brand-name Parts
2) Country of Origin
3) Competitive Price
4) Good Product Performance
5) Prompt Delivery
6) Quality Approvals
7) Good Reputation
8) Expedite Communication
9) Good Packaging
10) Distributorships Offered
11) One Step Service
12) Good Quality Service
13) Small Orders Accepted
