Building Hoist SC200

Product Description:

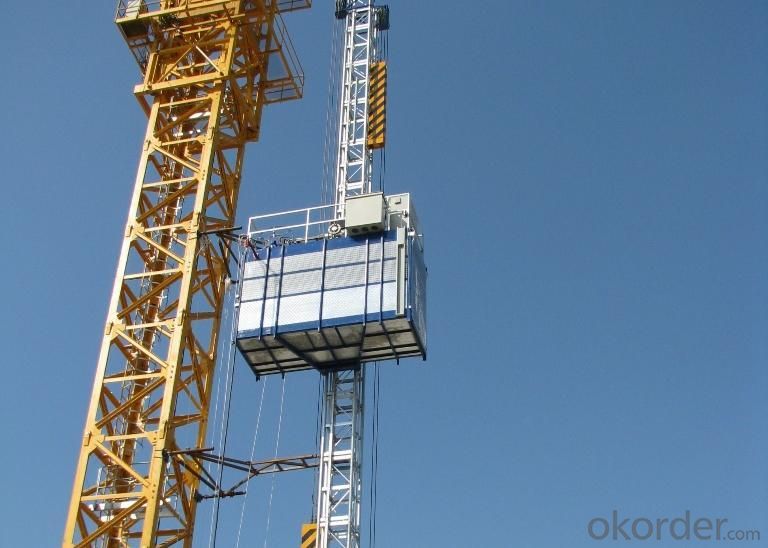

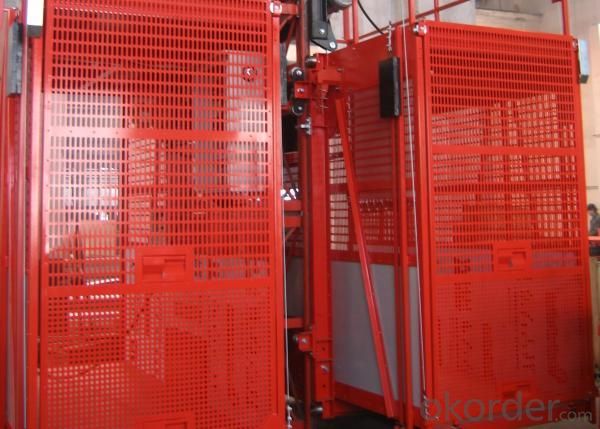

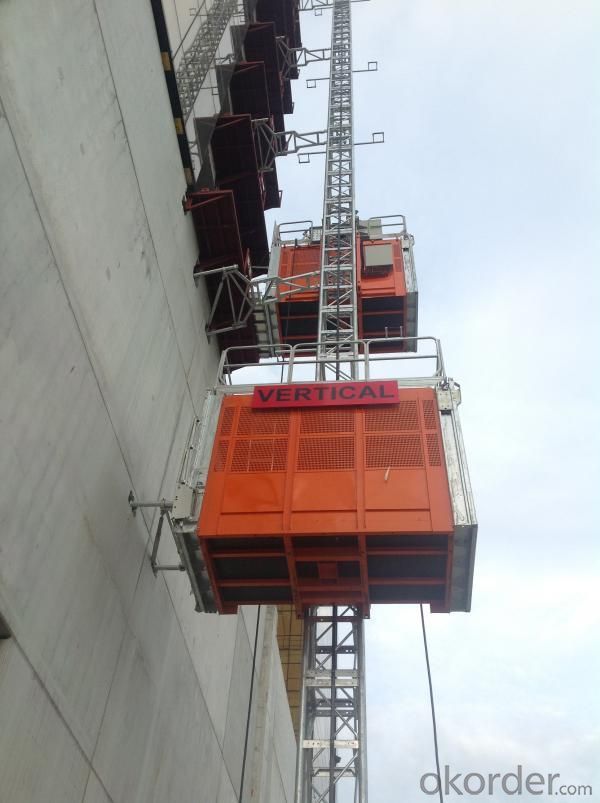

Description of CMAX BUILDING HOIST SC200/200

The Construction Hoist is set up with frequency conversion and twin cages. Every cage has three suits of independent driving mechanism.With the technology of frequency conversion the construction hoist driven by rack and pinion can speed up and slow down steadily. It has traits such as:

1. Starting and braking are steady with no pounding.

2. The lifting speed can be controlled.

3. Starting current is lower than rated current.

4. The mechanical wear and tear is reduced evidently.

5. Power saves efficiently.

Specifications of SC200

Building Hoist Lifting capacity: 2,000kg

Building Hoist Lifting speed: 33, 0 to 60m/min (VFD + PLC), 0 to 90m/min (VFD + PLC)

Building Hoist Maximum lifting height: 300m

Building Hoist Motor type: Chinese motor or SEW motor

Anti-drop safety device with our patent

Building Hoist Cage size:

Recommended size: 2.0 x 1.0 x 2.5, 2.5 x 1.3 x 2.5m

Mast section: 450X450X1508MM/ 650X650X1508MM, hot-dipped galvanized or painted

Anchor distance: 6 to 9m, hot-dipped galvanized or painted

The whole machine can be designed according to customized specific requirements

Packaging & Delivery

Package: container

Delivery time: 20~25days
