Building Hoist SC200/200

Product Description:

Building Hoist Description SC200/200

Condition: New

Application: Construction

Payload(kg):2*2000

Lifting Speed(m/min):0~60

Motor Power(kw): 2*3*22

Safety Device: 2*SAJ50-1.4

Cage: Single/double cages

Counterweight: No

Certification: CE/ ISO

Place of Origin: China(Mainland)

Model Number: Type:SC200/SC200

Packaging & Delivery of Building Hoist

Packaging Detail: Nude package          Delivery Detail: 25days

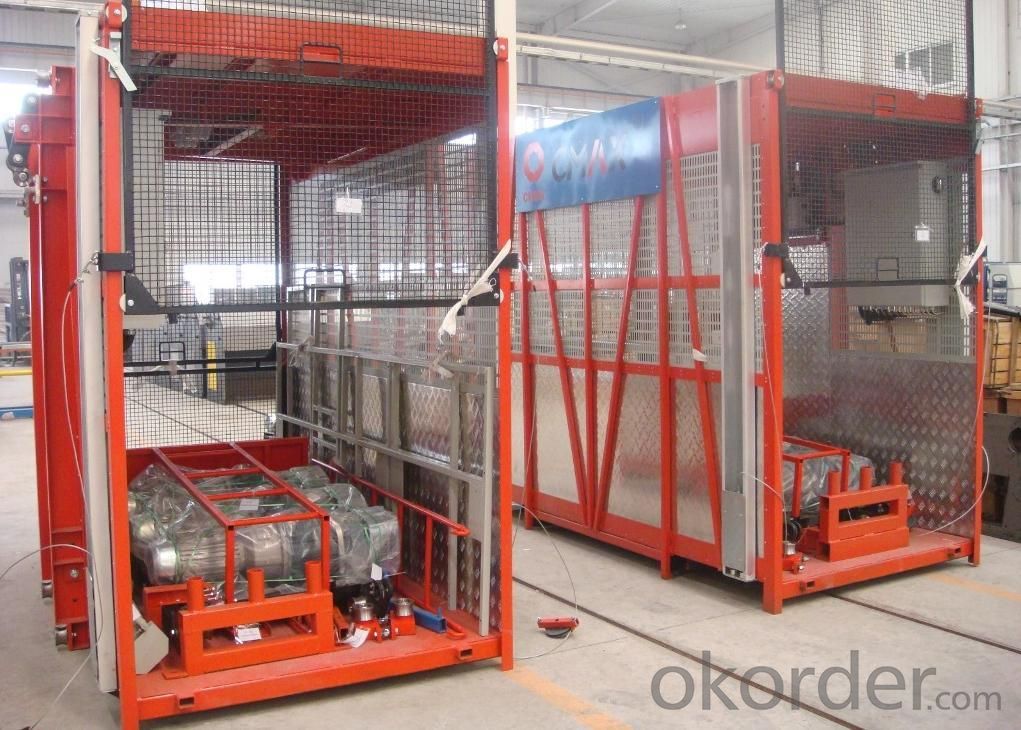

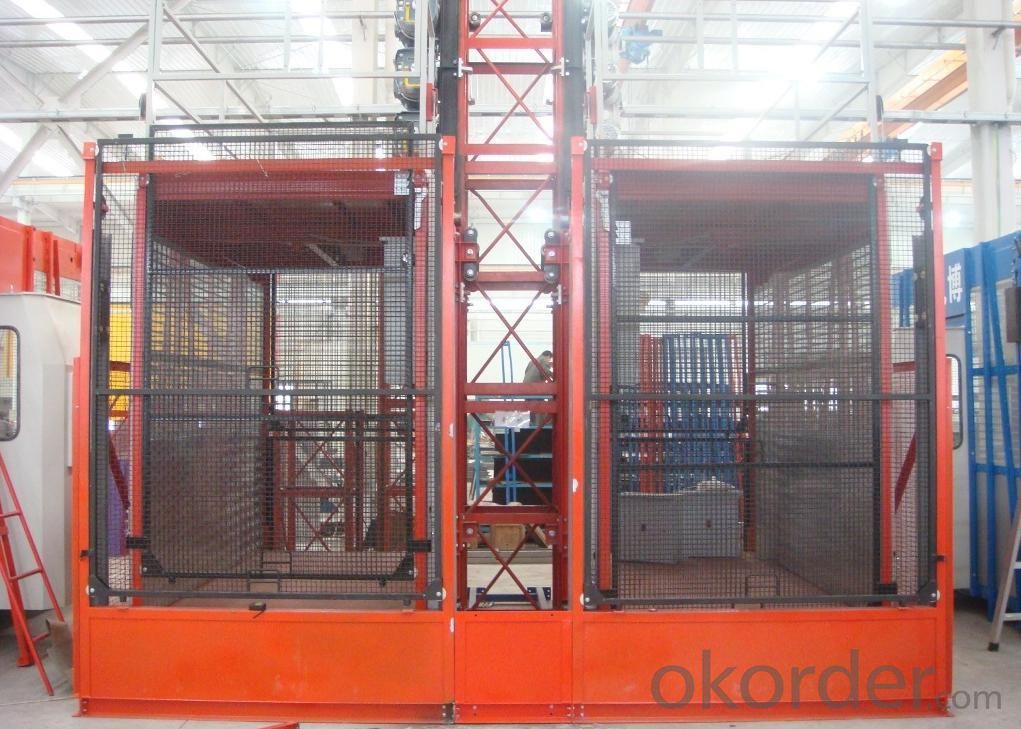

Main Parts of Building Hoist

Feature:

● Adopts the most advanced VF speed control device and microcomputer programmable logic controller.

● eliminate the concussion during start up and braking, steady the operation process,

and ensures automated leveling.

● the speed control precision can reach ±2~3%. Realizes accurate low speed positioning   of the hoist and avoid slipping during downward stopping of hoist.

● Thesystem has current-restriction function, ensuring a small current when motor start up . It reduces the engery consumption and mitigates effects to on site electric equipments.

● The  system also has the over voltage protection,low voltage protection, overcurrent, overload and   protection functions,

● The system applies the special software for hoists developed by our company, making the operation reliable.

Building Hoist Specifiction

FAQ of Building Hoist

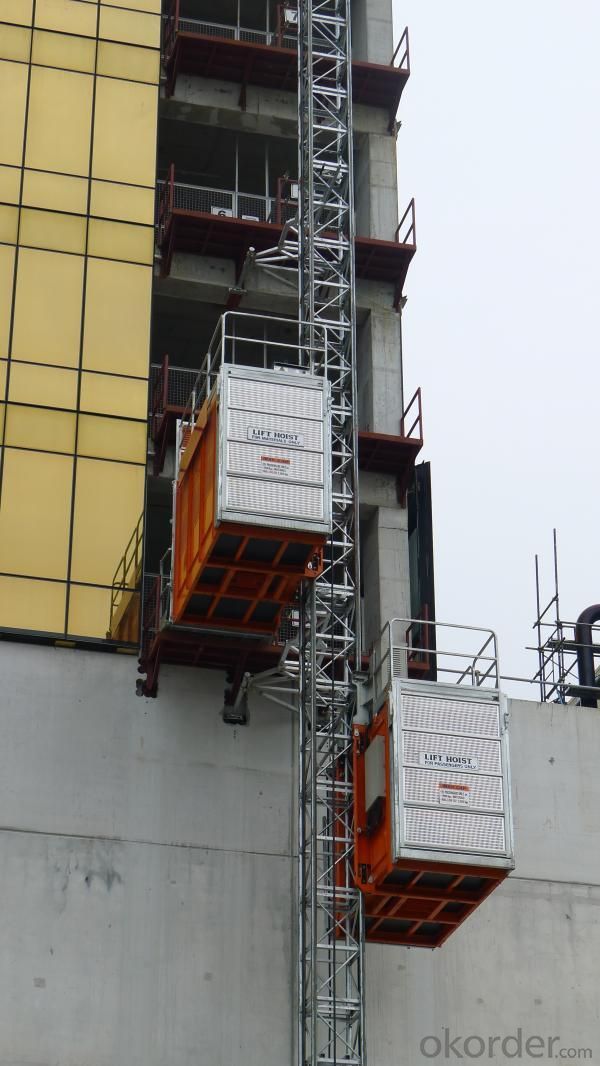

Q: What is the building hoist main purpose?

A: Building hoist equipped with double or single cabin to transport the materials and labors up and down. It's the ideal

construction equipment for vertical transportation in the field of construction.

Q: What is the main structure of building hoist?

A: The P/M construction hoist mainly contains metal structure, driving system, electrical control system,

Q: What is the meaning of the building hoist’s code?

 A: Take for example: “SC” stands for rack and pinion hoist, “200/200” stands for double cage and capacity

is 2 tons per cage. “” stands for single cage and capacity is 2 tons.

Q: What is the dimension of the cage?

A: Normally the cage dimension is 3X1.5X2.5M for 2t type hoist. Details should be checked according to our

quotation sheet. Also, the size can be customized according to the factual site condition.  There are two doors  for each cage, It can be produced
