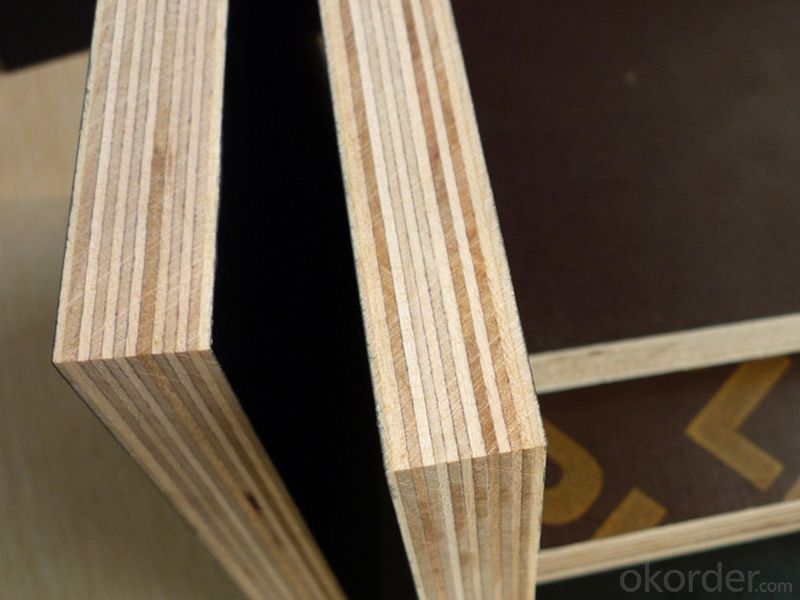

4/3 Brown and Black Film Faced Plywood Shuttering Plywood

Size

1220*2440MM/1250*2500MM/1500*3000MM or As per customer requested

Length(width) tolerance

+/-1mm

Thickness 9-30mm

Diagonal line

+/-2mm

Thickness tolerance +/-0.5mm

Film

Black/Brown Film

Logo

Logo-Comaccord, Customized logo by customers.

Surface

Smooth/wiremeshed(anti-slip)

Core material

Materials:Poplar/birch/combi/hardwood(eucalyptus)
Difference:
poplar-light weight, low density, low strength, cheap price;
hardwood-heavy weight, high density, high strength, high price;
(main film faced plywood in China is generally poplare core)

Glue

WBP(Weather/boil proof)/Melamine/MR
MR-boiled for one hour, reused times 6-8;
Melamine-boiled for 6-8 hours, reused times 8-12;
WBP-boiled for 48 hours, reused times 15-20;

Density

550-700kg/cbm
Poplar core: about 550kg/cbm
Hardwood core: about 570kg/cbm
Combi core: about 560kg/cbm
Birch core: about 700kg/cbm

Cycle life

6-20times

Moisture

6-12%

Warpage

<=1%

Edge

Sealed with water-proof paint, and different colors are available for us

Pallets

Pts/40'GP:16 pallets

Pts/40'HQ:18 pallets

Veneer layers (longitudinal grain with transverse grain crossed, glue-sprayed among each layers)

9mm:5 or 7 layers

12mm:7 or 9 layers

15mm:9 or 11 layers

18mm:11 or 13 layers

21mm:13 or 15 layers

25mm:15 or 18 layers

Hot press

Only two time hot preseed (Different: two times hot pressed plywood-smooth surface, one time hot pressed-low cost and cheap price), Comaccord only produce high quality product.

Capacity

500-1000m3/day
