Product Description

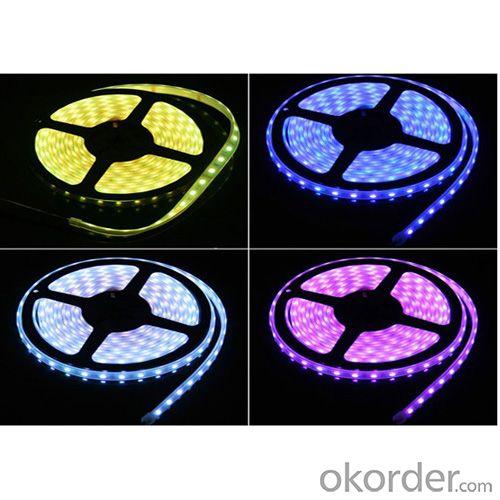

Flexible LED Strip Light Series adopt 30 or 60pcs of SMD 3528 LED as its light source.It can also be made according to customers' special requirement. 3528 LED Strip Light is made of flexible copper board and silica gel. Each 3 LEDs as one unit can be cuttable to get your desired length, which can be connected by wires and Silica gel. Different colors are available.
Specification
1. Light source: 3528 & 5050 & 5630
2. Emitting color: Red, Yellow, Blue, Green, White, Warm White, RGB
3. LED Quantity: 30 LEDs/m, 60 LEDs/m, 90 LEDs/m, 120 LEDs/m
4. PCB Width: 8mm 10mm 13mm 15mm
5. Voltage: DC12V, DC24V
6. Non-waterproof: IP20 /Epoxy glue waterproof or Half solid cover tube waterproof : IP65 / Full solid cover tube : IP67
7. Beam angle: 120°
8. Length: 5m/roll
9. Certification: CE & ROHS
10. Flexible and Rigid led strips can be made.
Item name | LED Strip Light 3528 | ||||
Dimension | L1000XW10XH3mm | ||||
LED No | 60 pcs 3528 SMD LED | ||||
Voltage | Input 12VDC | ||||
View angle | 120 degree | ||||
Current | 20mA | 20mA | 20mA | 30mA | 30mA |
Watts | 4.8watt | 4.8watt | 4.8watt | 7.2watt | 7.2watt |
Lumen | 378 | 51.6 | 195 | 84 | 126 |
Cuttable Unit | 3 LEDs | ||||
Life | 30,000~50,000 hrs. Lumen Maintenance:>92%@1,000hrs | ||||
Color | White 3500~8000k | Blue | Green | Yellow | Red |
Operation Temperature | -40°C- 60°C (-40°F~140°F)
| ||||
Certificate | CE:BTRE0708181359 / RoHS: BTRS0708310889 | ||||
Warranty | 24months | ||||
Weight | 330g/5 meters/reel | ||||
IP | IP33/IP67/IP68 | ||||
Part No | RRFT1000-60W3528 | RRFT1000-60B3528 | RRFT1000-60G3528 | RRFT1000-60Y3528 | RRFT1000-60R3528 |

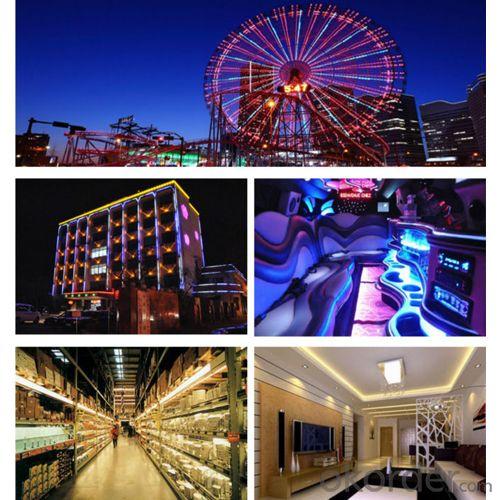

Application
1. Indoor and outdoor decoration lightings
2. Large scale backlight
3. Window display lighting
4. Building contour decorative lighting
5. Ad. Signs, light boxes
6. Landscape outlines
7. Car and motorcycle decorative lighting
8. Bridge edge lighting
9. Architectural decorative lighting
10. Emergency hallway lighting
