High efficiency bendable solar module adopts the highest efficiency cell in the world from USA, with efficiency up to 20% or highter,which enable 25-30% higher power generation than the conventional PV modules at the same size.
By adopting the back contact technique,the cell can be coated with the flexible materials and finally forms the high efficiency flexible solar panel.

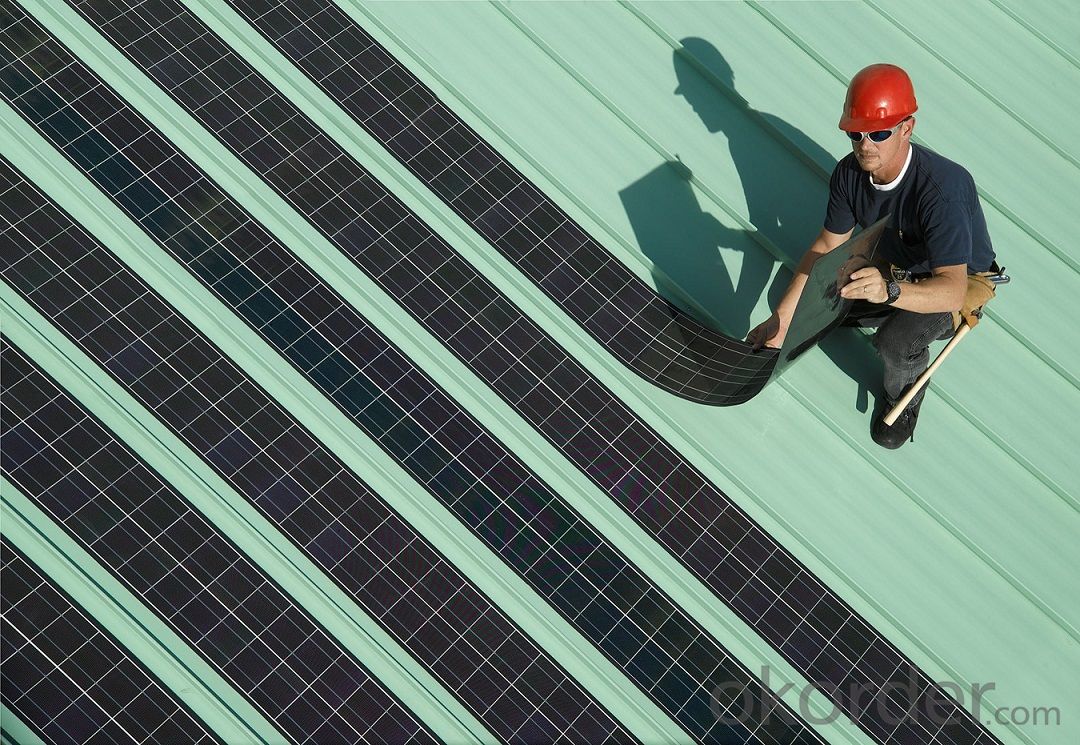

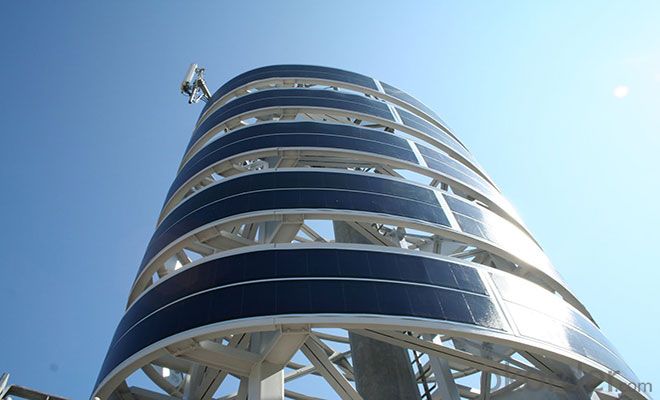

This kind of solar panel can be widely used in the field of Electric Golf Car,Patrol Car,Travel Tourism Car,Yacht,Roof Power generation,Backpack,Tent and so on.
our Semi-flexible solar panels are made of Sunpower solar cells.
we can do 15w-140w Semi-flexible solar panels.
any of your inquiry will get us prompt reply
EFFICIENCY
Low voltage-temperature coefficient allows higher power output at high-temperature condition
High efficient, high reliable solar cells ensure our product output stability
BENEFITS
Manufactured in an ISO 9001:2008 certified plant
High efficiency, high safety, high reliability
Output power tolerance of +/-3%
25-year limited warranty on power output, 5-year limited warranty on materials and workmanship
Module size (mm): | 535*1050 |
Cell Type | 125x125 |
Weight(kg) | 3 |
Power tolerance: | +/-3% |
Nominal peak power(WP): | 100 |
Nominal voltage(V): | 17.6 |
Nominal current (A): | 5.68 |
NOCT: | 45+/-2°C |
Voltage temperature coefficient: | -0.33%/°C |
Current temperature coefficient: | +0.05%/°C |
Power temperature coefficient: | -0.23%/°C |
Open circuit voltage (Voc): | 20.8 |
Short cirsuit current(Isc): | 6.14 |
Conversion efficiency: | 20.41% |
Operating temperature: | -40 to+85°C |
Max system voltage: | 1000V DC |
