Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:100000 watt
Supply Capability:50000000 watt/month

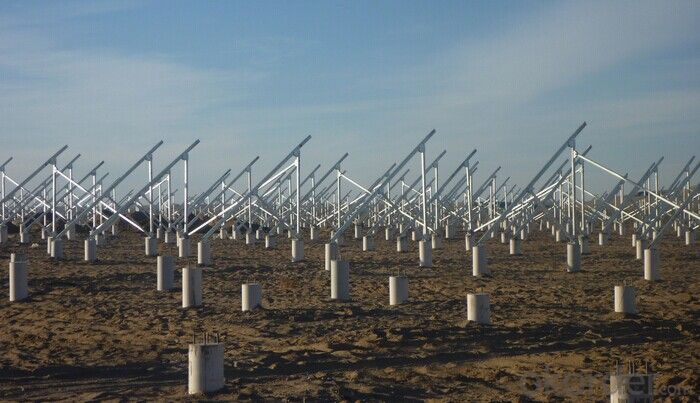

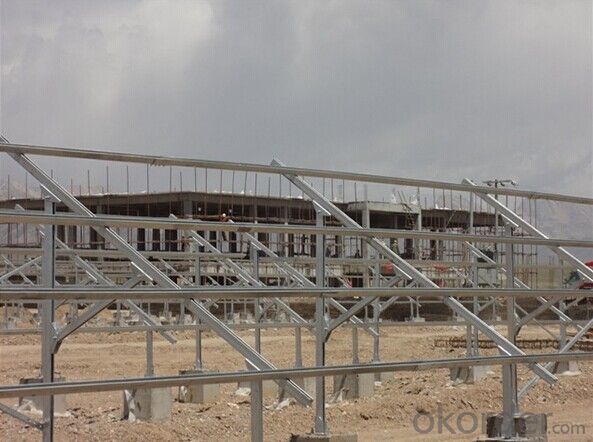

Beach Solar Mounting Support System, Bracket
the performance featuresof the beach support system is that using the topography,free of support foundation-making.flat laid the supporet system,simple structure,lower cost. Rapid construction,beautiful appearance,could be used two times.
Product introduction:
HCPV dual-axis tracking system is high-tech petented product.
The tracker bracket adopt hot-dipped galvanizde high-quality structual steel Q235B,system stability is very high and maintenance cost is very low,working time more than 25years.
adopt pillar type structure,the bearing is free of oil and windproof.
the two axis both using slewing drive.
frame stucture with 5 supporting points.
power generating can increased more then 40%.
Features:
1. The system, which uses an isosceles triangle bracket as bracket structure and maintenance-free, wind and sand-proof high polymer material bearing moving parts and unique linkage structure, features reliable system stability, low cost and low failure rates.
2. Compared with traditional fixed-bracket its annual energy output can be increased up to approximately 20 percent - 30 percent.
3. With exactly the same or even lower cost as fixed-bracket the system is the optimal choice for the establishment of large and medium-sized high-efficiency solar power stations.
Specification:
| Installation site | Roof |
| Installation angle | customization |
| Wind resistance | 35m/s |
| Solar Panel Type | frame or frameless |
| Solar panel size | any size |
| Mount track | aluminum extrusion attachment |
| Mount materials | Q235B/6063-T5 |
| Installation height | customization |
| Snow load | 1.4KN/m2 |
| Components arrangement | laterally or longitudinally |
| International Standards | comply with AS/NZS 1170 and other international standards |
| Quality Warranty | 20 years |
FAQ:
1. How long will my inquiry get response?
Your inquiry related to our products or prices will be replied within 24 hours.
2. Can I get professional service and suggestion?
Well-trained and experienced staffs to answer all your questions in fluent English.
3. Do you accept OEM or customized design?
OEM & ODM, any your customized lightings we can help you to design and put into product.
4. What if I need specific design?
Distributorship are offered for your unique design and some our current models.
