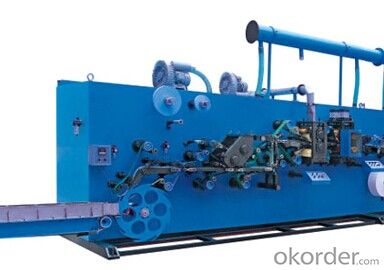

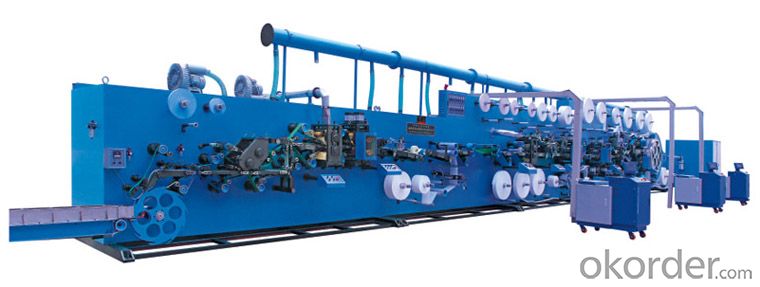

Bar Type Package Winged Sanitary Napkin Production Line

Equipment Function & Parameter
1. Design according to European CE standard, passed the CE certificate, Electric parts are under CE or UL quality certification, with safety protection unit, such assafety door and emergency stop and so on.
2. Most of the spare parts are under numerical control precisely processing, Key mechanical parts are under CNC processing, Main outsourcing parts are World famous brand.
3. It is the equipment specially for making cotton core, ultra-thin (with protrusion center), leakage barrier bar package sanitary napkin.
4. Driven by frequency converter; Jumbo roll passive opening, semi-automatic material splicing unit.
5. Driving is consisting of gearbox, universal shaft coupling and timing belt, while phase adjustment can be materialized without stopping the machine.
6. Other optional functions can be chosen by customers:
a. Full-servo control system b. Jumbo roll auto splicing servo control c. Jumbo roll auto splicing frequency converter control
d. Full-servo control stacker (auto bagging machine) e. Auto bagging sealing machine

Main Technical Parameter
1. Outputted products from this machine：Cotton core type & Ultra-thin type bar winged sanitary napkin
2. Designed speed：500 PCS/min
3. Production speed：350-400 PCS/min (Day use)
4. Overall size of equipment：20m(L)×4m(W)×3m(H)
5. Machine power: approx 160KW (380V, 50Hz)
6. Weight of equipment：about 35,000kgs
