Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 set
Supply Capability:50 set/month

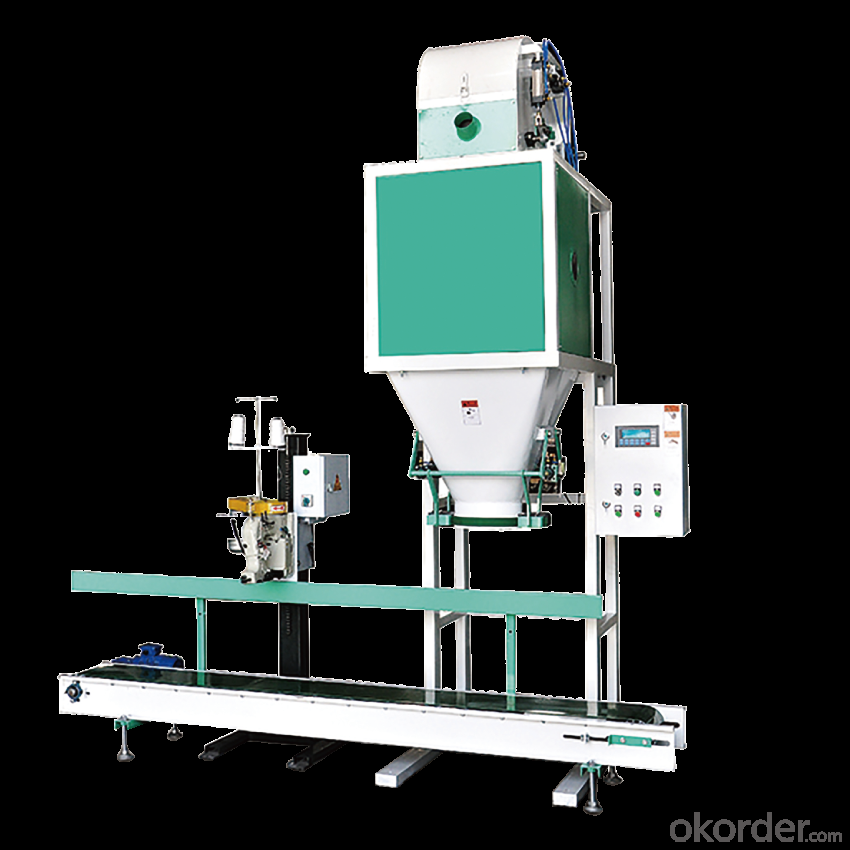

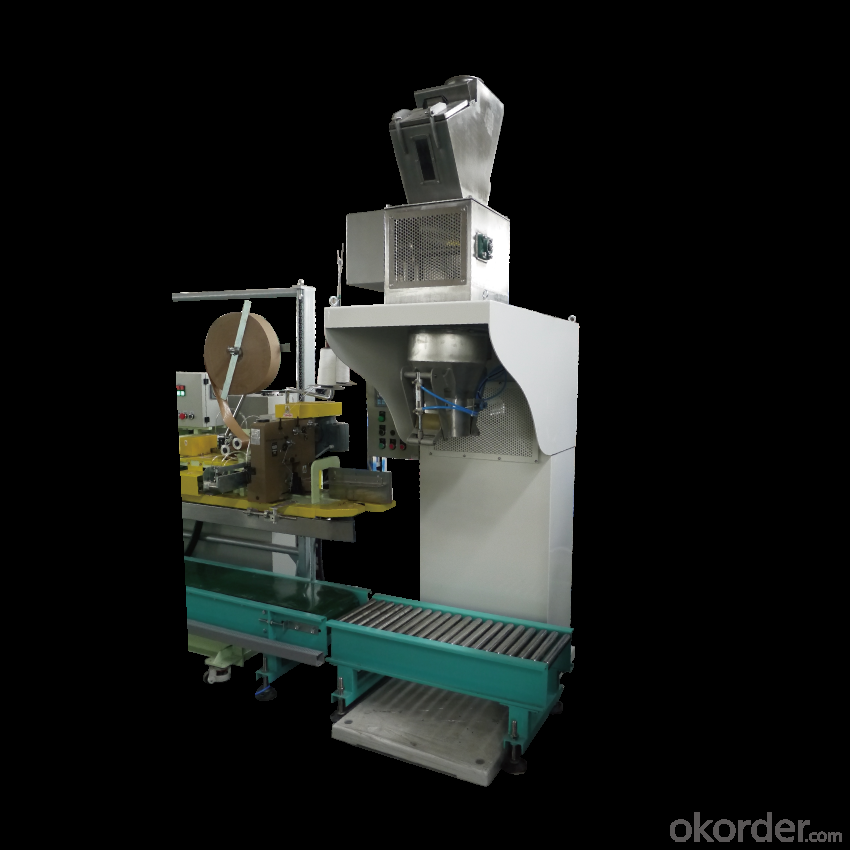

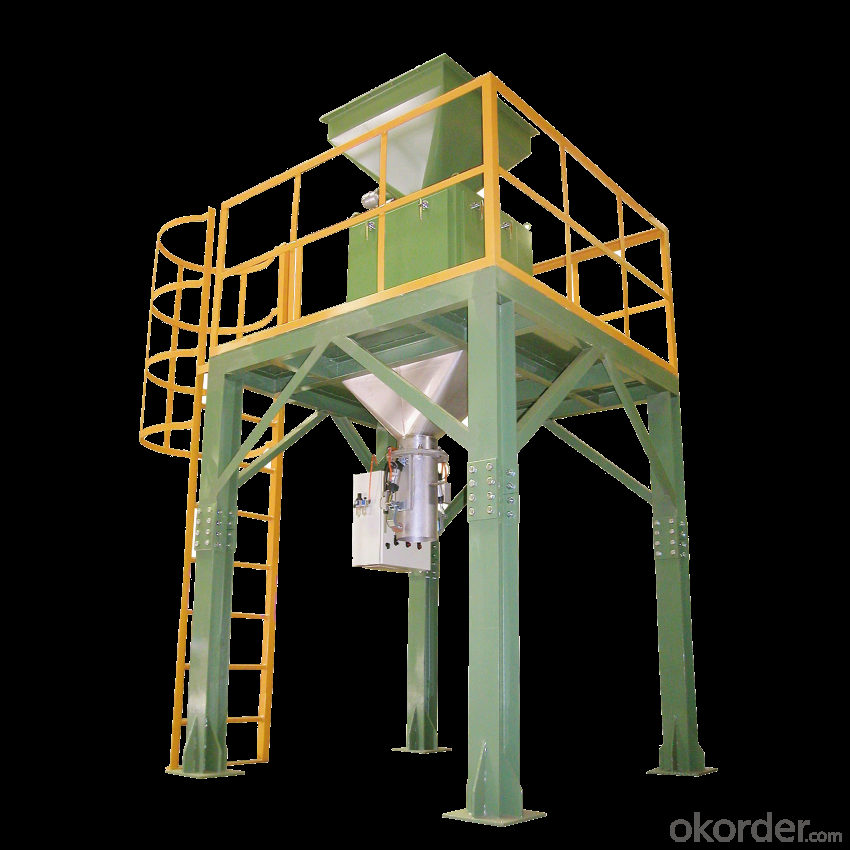

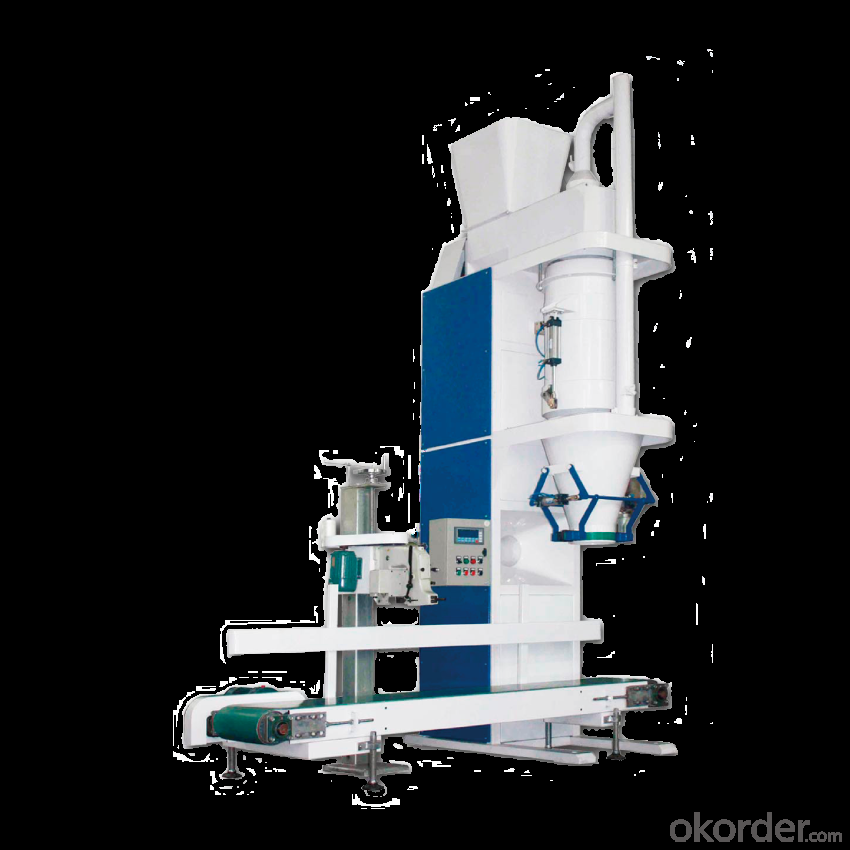

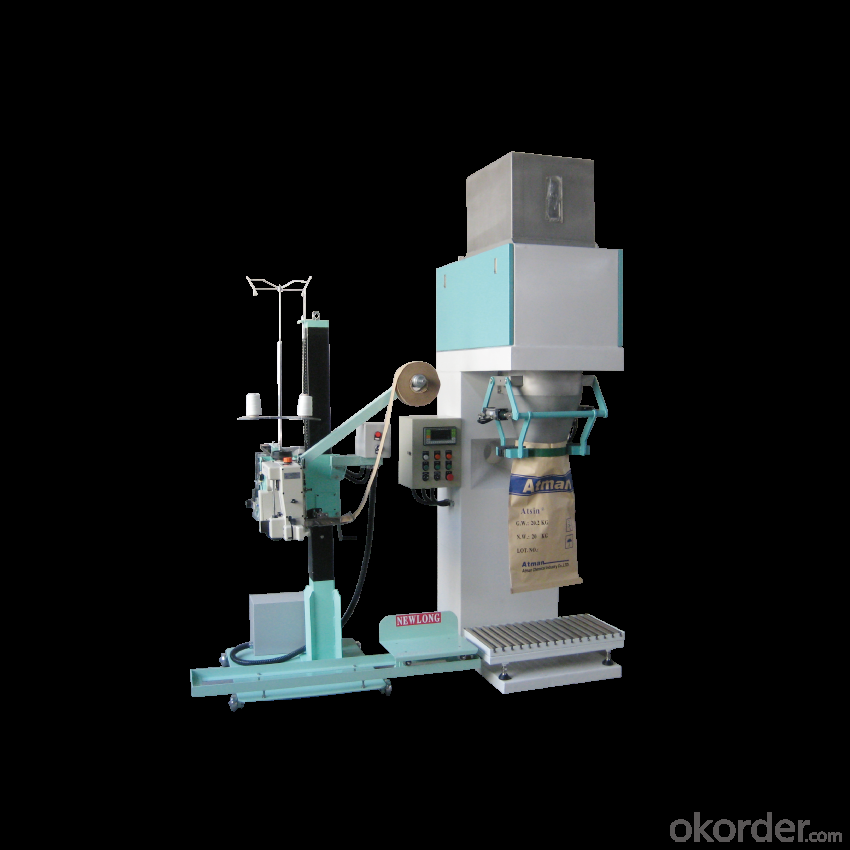

1. Description of APS series open bag bagging scale
APS series automatic bagging scale is a weighing control system that automatically dispenses large quantities of granular, powdery materials into small packages.
Mainly consists of feeding device, weighing unit, bag clamping device, weighing control system, frame components, etc. It can be use din conjunction with sewing machines, conveyors, and other peripheral equipment. It automatically measures the packaging according to different materials and process requirements.
This product has the characteristics of complete architecture, easy operation and reliable performance, and can be adjusted to various production sites and production capacity to meet the needs of users.
2. APS series
| APS-30GF | Gross weight gravity type |
| APS-30GS | Gross weight screw type |
| APS-30GB | Gross weight belt type |
| APS-30GV | Gross weight vibration type |
| APS-30GP | Vertical screw type |
| APS-30NF | Net weight gravity type |
| APS-30NS | Net weight screw type |
| APS-30NB | Net weight belt type |
| APS-30NV | Net weight vibration type |
| APS-30NM | Net weight servo type |
| APS-30DF | Twin scale gravity type |
3. Technical parameters
P.S:"o"standard function;"▲" optional function; "x" not available.
Main features: suitable for open bags, boxes & buckets with powders, granules, sheet materials
Can be equipped with conveyor, seiwing machine, sealing machine, rewinding machine,press bag shaping machine,.check weigher. metal detector, reject machine, pallet library, stacking machine and other ancillary equipment can realize semi-automatic production or fully automatic production line.
4. Application scope
Suitable for automatic weighing and filling packaging of various open bag packing powdered, granule materials. They are widely used in petrochemical, chemical, plastics, building materials, minerals, fertilizer, grain, feed, food and port industries.
